Petrolatum Anti-Corrosion Tape
A highly conformable, cold applied petrolatum tape for the corrosion protection of buried and submerged pipes, fittings, flanges and valves.
What is the Petrolatum Anti-Corrosion Tape?

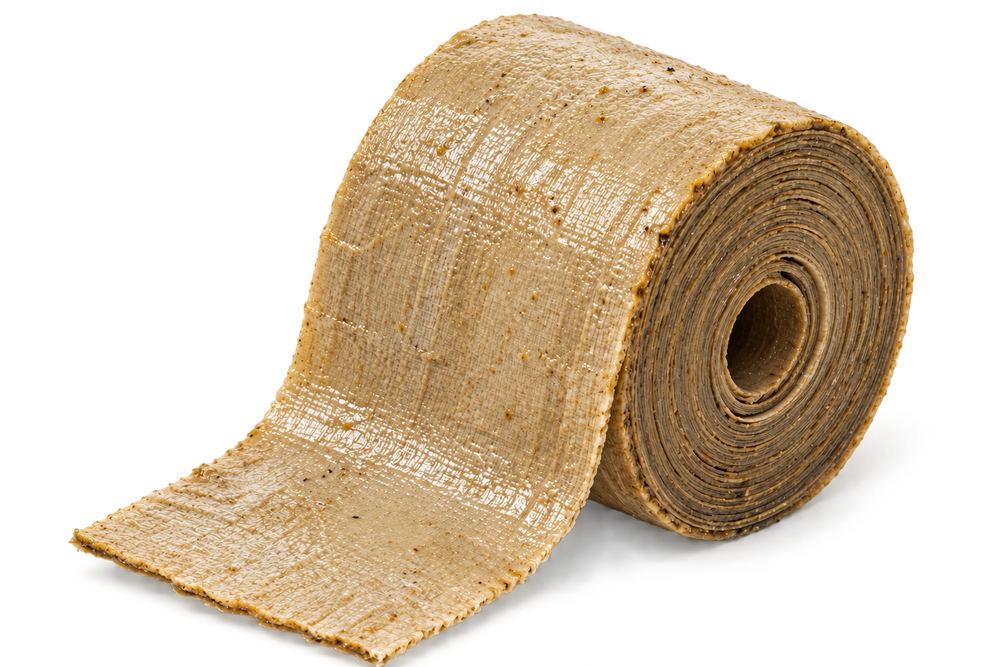

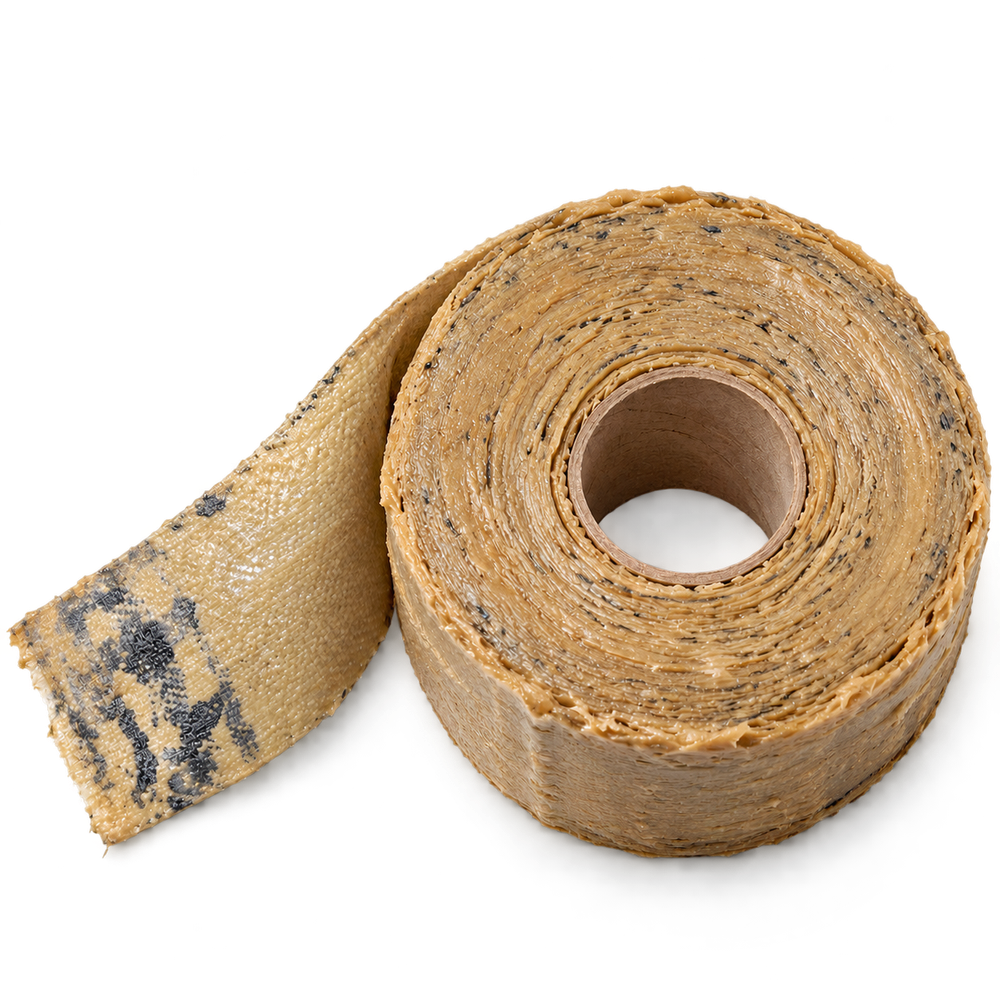

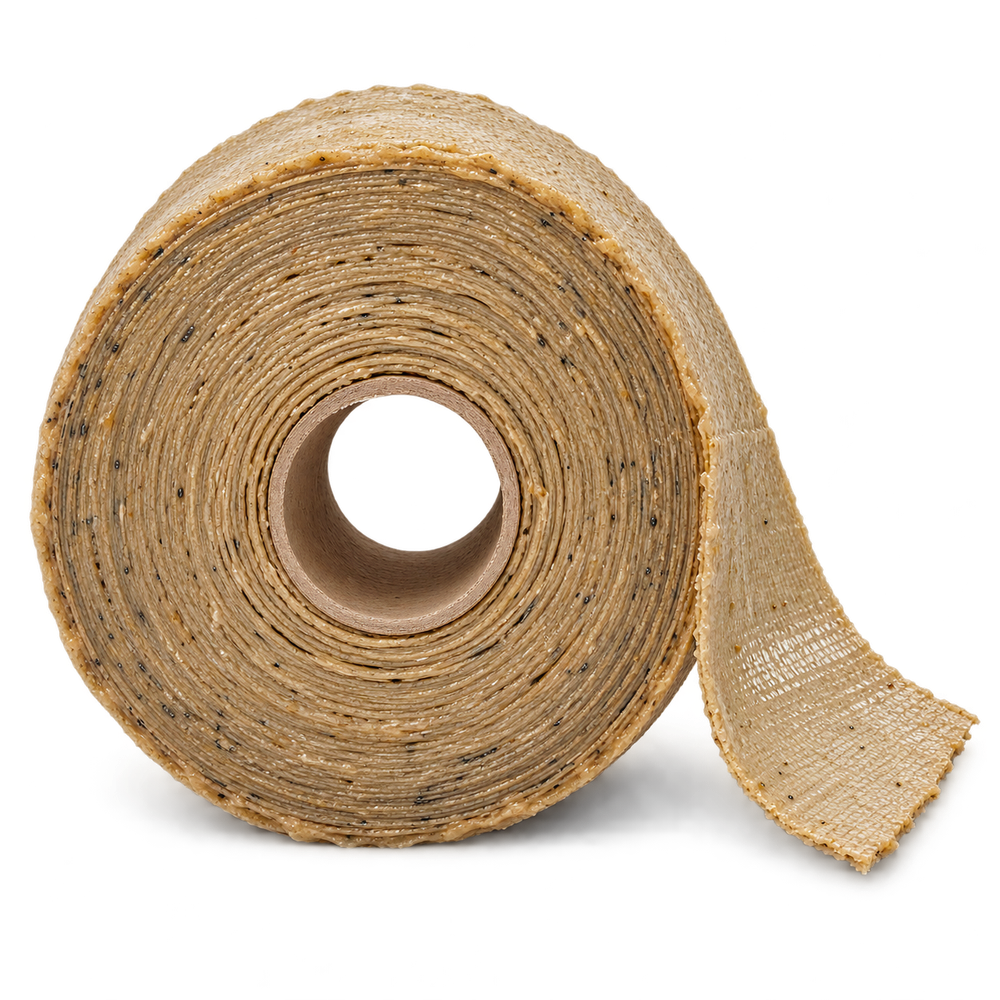

YTM Makina Petrolatum Anti-Corrosion Tape is a synthetic fabric coated on both sides with petrolatum mastic. Its high malleability lets it conform closely to irregular shapes such as fittings, bends, tees, flanges and valves.
Cold applied and environmentally friendly, it protects metallic installations where the temperature does not exceed 50 °C and complies with EN 12068 Class A30. On irregular surfaces it is used together with YTM Petrolatum Moulding Paste.
Key features and benefits
- Complies with EN 12068 Class A30
- High malleability – conforms to any shape
- Cold applied, environmentally friendly
- Suitable for buried and submerged service
- Ideal for fittings, flanges and valves
- Compatible with PE, PP, PU, FBE and CTE coatings
Applications
- Buried and submerged pipelines
- Fittings, bends and tees
- Flanges and valves
- Field joints and other metallic installations
- Steel, ductile iron and concrete pipes
Industries served
- Water and wastewater networks
- Oil and gas pipelines
- Valve chambers and pumping stations
- Industrial plants
Why petrolatum tape?
- Tolerant of imperfect surface preparation – ideal where blast cleaning is not possible.
- Remains soft and conformable – seals complex shapes such as flanges, valves and couplings.
- No curing, no special tools – apply, press and backfill.
- Can be removed for inspection and re-applied.
Technical data
| Technical characteristic | Unit | Value | Test method |
|---|---|---|---|
| Colour | — | Olive green | — |
| Tensile strength | N/mm² | 8 | EN 12068 |
| Impact resistance | J | 5 | EN 12068 |
| Indentation resistance | mm | 2,80 | EN 12068 |
| Cathodic disbondment | mm | 6,5 | EN 12068 |
| Insulation resistance | Ω | 1,1 × 10⁶ | EN 12068 |
| Application temperature | °C | −5 to +40 | — |
| Operating temperature | °C | −34 to +50 | — |
Values are typical. Full data in the Technical Data Sheet Download the technical data sheet.
How to apply
- CleanWire-brush off rust, dirt and weld spatter; remove oil, grease or test gel with a solvent such as white spirit.

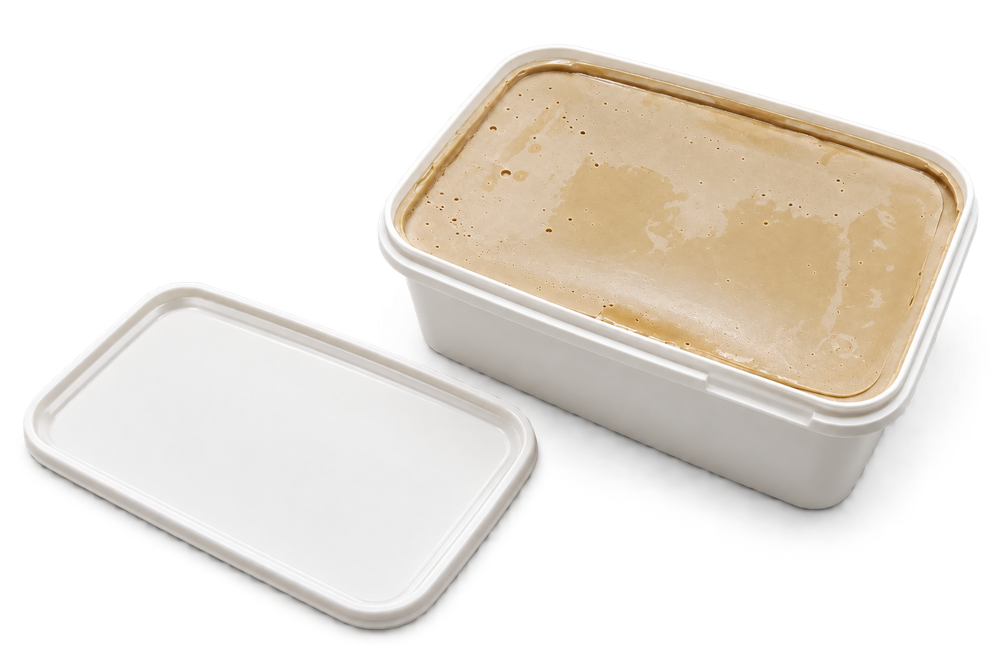

- ProfileOn irregular surfaces, first mould YTM Petrolatum Moulding Paste to a smooth profile.
- WrapWrap spirally with 50 % overlap; overlap any factory coating by at least 10 cm.
- PressPress the overlaps by hand for full adhesion between layers.
Supply and packaging
| 50 mm × 10 m | 24 rolls / carton |
|---|---|
| 100 mm × 10 m | 12 rolls / carton |
Related products
Frequently asked questions
What standard does the tape meet?
It complies with EN 12068 Class A30.
Can it be used under water or in wet soil?
Yes – it is designed for buried and submerged pipes and installations up to 50 °C.
How much overlap is needed?
Wrap with a 50 % overlap and overlap the factory coating by at least 10 cm.
What should be used on flanges and bolts?
Fill irregular shapes with YTM Petrolatum Moulding Paste first, then wrap with the tape.
Can it be used above ground?
It is designed for buried and submerged service. For above-ground or mechanically exposed areas, contact YTM Makina for a suitable outer protection.
Can it be used with cathodic protection?
Yes – it is tested for cathodic disbondment to EN 12068.
Need Petrolatum Anti-Corrosion Tape for your project?
Contact YTM Makina for technical support, project-specific requirements and a quotation – [email protected] · +90 542 306 40 43.
