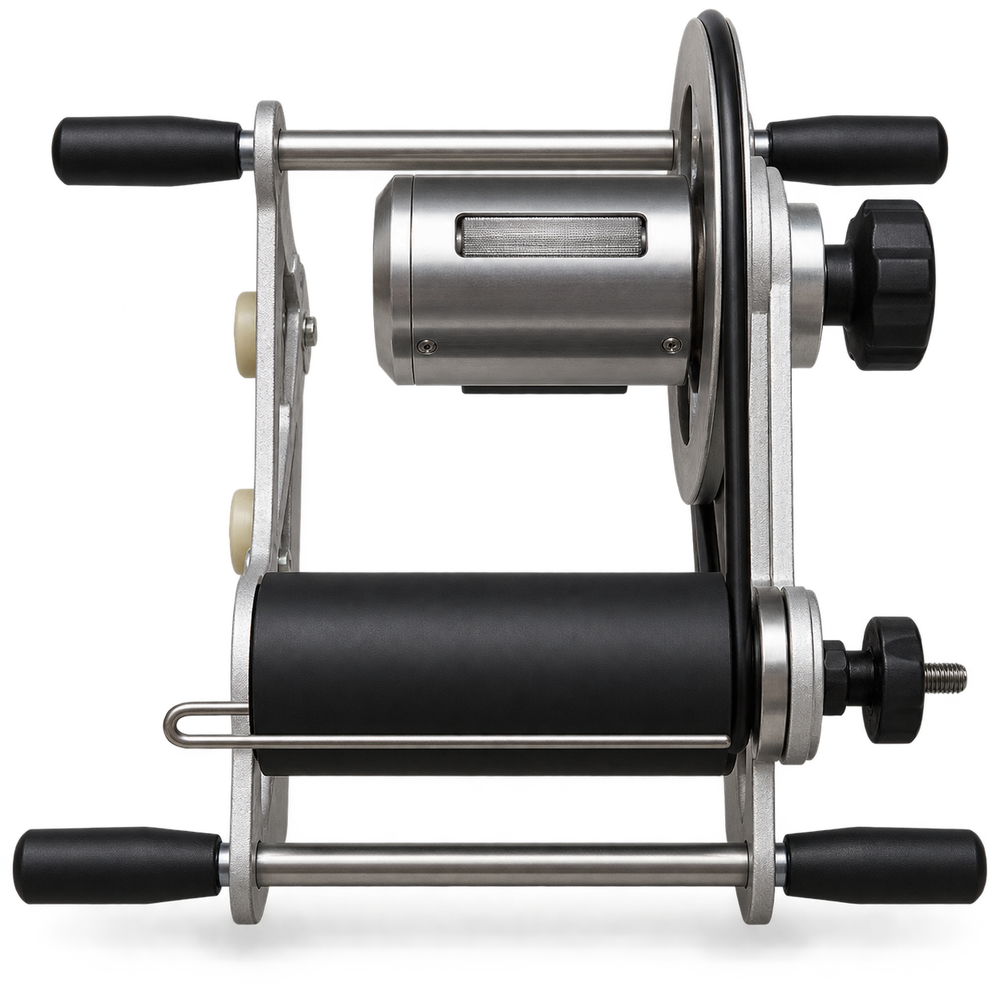

Manual Tape Wrapping Machine
A lightweight, hand-operated machine that applies cold applied corrosion and mechanical protection tapes with constant tension and a uniform overlap.
What is the Manual Tape Wrapping Machine?
The YTM Makina Manual Tape Wrapping Machine is a modular, hand-operated tool for applying cold applied tape coatings on pipes from 4″ (DN 100). Tape overlap and tape tension are both adjustable, making correct, uniform application faster and easier than hand wrapping.
It is available in two versions: Basic, for tapes without interleave film, and Complete, with an automatic film collector for 3-ply tapes with interleave film. Both versions are interchangeable with the corresponding accessories and accept 41 mm and 76 mm tape cores.
Key features and benefits
- Adjustable tape overlap (advance angle)
- Adjustable, constant tape tension
- Modular design – Basic and Complete interchangeable
- Automatic interleave film collector (Complete version)
- Lightweight hand-operated design (4,2 – 4,8 kg)
- Fewer wrinkles and air pockets, less tape waste
Applications
- Field joint coating of steel pipelines
- 2-ply and 3-ply PE/butyl tape systems
- Corrosion and mechanical protection tapes up to 150 mm
- Pipe coating yards and site application
Before you start
- Make sure there is enough free space around the pipe for the machine to rotate.
- Check that the tape width (≤ 150 mm) and core size (41 / 76 mm) match the machine.
- Clean adhesive and primer residues from the shaft, wheels and rollers after use.
Technical data
| Specification | Unit | Basic version | Complete version |
|---|---|---|---|
| Pipe diameter | — | ≥ 4″ (DN 100) | ≥ 4″ (DN 100) |
| Maximum tape width | mm | 150 | 150 |
| Tape roll core diameter | mm | 41 or 76 | 41 or 76 |
| Machine weight | kg | 4,2 | 4,8 |
| Operation | — | Manual | Manual |
| Adjustable wheels / overlap / tension | — | Yes | Yes |
| Interleave film collector | — | — | Yes, automatic |
Values are typical. Full data in the Technical Data Sheet Download the technical data sheet.
How it works
- MountAdjust the wheel position to the pipe diameter and place the machine on the pipe.
- LoadInsert the tape roll on the shaft (Complete: film side down and fasten the interleave film to the collector).
- SetAdjust the advance angle for the required overlap and set the tape tension.
- WrapRotate the machine around the pipe for a uniform spiral wrap at constant tension.
Supply and packaging
| Versions | Basic · Complete |
|---|---|
| Tape width | up to 150 mm |
| Tape core | 41 mm / 76 mm |
| Accessories | Core adaptor, film collector kit, spare parts on request |
Related products
Frequently asked questions
What pipe sizes can the machine wrap?
Pipes from 4″ (DN 100) upward, with tapes up to 150 mm wide.
What is the difference between Basic and Complete?
The Complete version adds an automatic collector that winds up the interleave film of 3-ply tapes. Otherwise both versions are identical and interchangeable with accessories.
Which tape cores fit?
Both 41 mm and 76 mm cores, using the corresponding core adaptor.
Why use a machine instead of hand wrapping?
It keeps tension and overlap constant along the whole pipe, works faster and reduces wrinkles, air pockets and tape waste.
Can it be used on the YTM tape systems?
Yes – it is designed for the YTM 2-ply, 3-ply and primerless PE/butyl tapes up to 150 mm wide.
