Primerless Anti-Corrosion Tape
A heavy-duty PE / butyl tape whose special adhesive bonds to the pipe by itself – no primer required.
What is the Primerless Anti-Corrosion Tape?

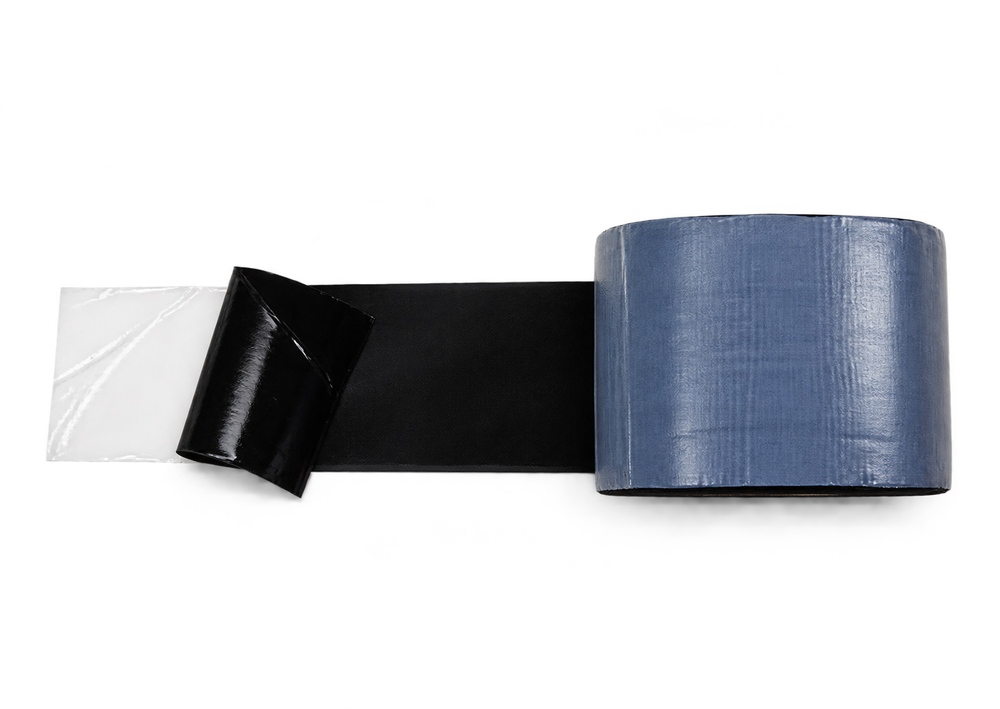

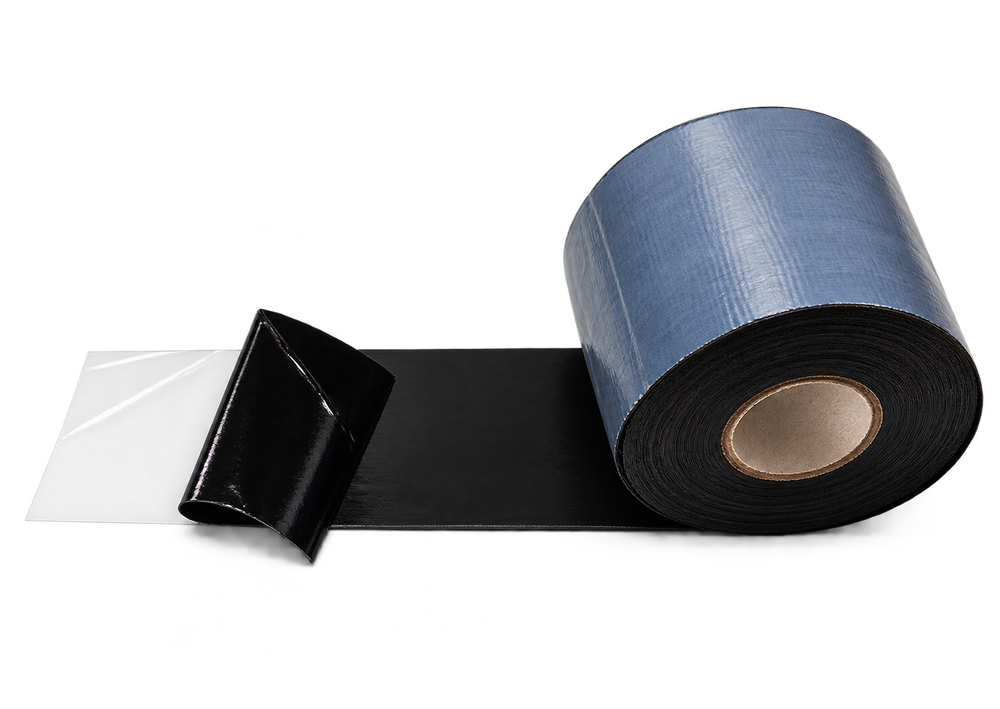

YTM Makina Primerless Anti-Corrosion Tape is a cold applied tape coating for the corrosion and mechanical protection of field joints, fittings and pipes. It combines a 0,50 mm butyl rubber adhesive with a 0,30 mm special PE backing.
Because its adhesive bonds to the pipe by itself, no primer is needed – saving a step on site. It is applied by hand or with a wrapping machine, on site or in the mill, for new construction or reconditioning of buried and submarine metallic pipes.
Key features and benefits
- No primer required
- Heavy-duty butyl rubber adhesive
- Conformable to irregular shapes
- UV resistant · consistent uniform thickness
- Meets ASTM D1000
- Applied by hand or by machine
Applications
- Field joints
- Fittings and bends
- Buried and submarine pipes
- New line construction and reconditioning
- Site or mill application
Industries served
- Water transmission and distribution
- Oil and gas pipelines
- Industrial and process plants
- Municipal infrastructure and utilities
Why a primerless tape?
- Saves the priming step and its drying time on site.
- No solvent-based primer to store, transport or handle.
- Ideal for quick field-joint and repair work, by hand or with a wrapping machine.
Inspection and quality control
- Check for uniform overlap and no wrinkles, air pockets or lifted edges.
- Holiday-test the finished coating at the voltage required by the project specification.
Storage and handling
- Store cartons dry and covered, away from direct sunlight and heat; keep rolls in their cartons until use.
Technical data
| Property | Unit | Value |
|---|---|---|
| Colour (adhesive / backing) | — | Black / black |
| Thickness total / backing / adhesive | mm | 0,80 / 0,30 / 0,50 |
| Elongation at break | % | ≥ 450 |
| Tensile strength | N/cm | ≥ 60 |
| Dielectric strength | kV/mm | 42 |
| Volume resistivity | Ω·m | ≥ 2,5 × 10¹² |
| Water vapour transmission | g/(m²·24 h) | 0,1 |
| Water absorption | % | 0,1 |
| UV resistance, 600 h | % | ≥ 60 |
| Application temperature | °C | −5 to +60 |
| Max. service temperature | °C | −40 to +80 |
Values are typical. Full data in the Technical Data Sheet Download the technical data sheet.
How to apply
- CleanSurfaces dry and free from dirt; solvent-wipe grease; wire-brush to St 2 (ISO 8501-1).
- No primerThe special adhesive bonds to the pipe by itself.
- WrapApply spirally by hand or with the YTM Manual Tape Wrapping Machine, with tension and overlap per project specification.
- FinishStart new rolls by overlapping one tape width and press the end firmly in place.
Supply and packaging
| Width × length | 100 / 150 mm × 30 m |
|---|---|
| Rolls / carton | 6 / 4 |
| Cartons / pallet | 36 |
Related products
Frequently asked questions
Do I need a primer?
No. The special butyl adhesive bonds to the prepared pipe by itself.
How thick is the tape?
0,80 mm in total: 0,50 mm adhesive and 0,30 mm PE backing.
Can it be applied by machine?
Yes – by hand or with the YTM Manual Tape Wrapping Machine.
What sizes are available?
100 and 150 mm wide, 30 m rolls; 6 or 4 rolls per carton, 36 cartons per pallet.
When should I choose the primerless tape instead of a primed system?
When speed and simplicity matter – for example field joints and repairs. Where a project specifies a certified system such as EN 12068 C50 or AWWA C214, use the corresponding YTM tape system.
