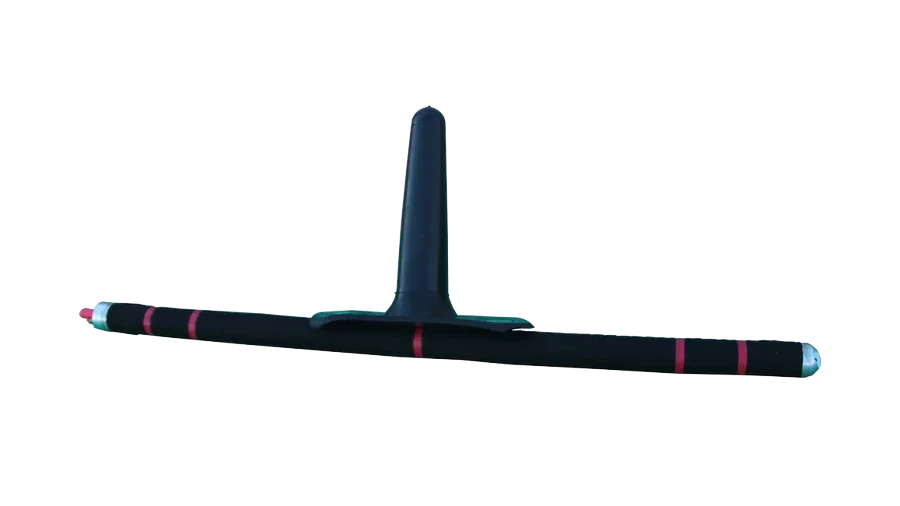

Top Hat Packers
Top Hat Packers
Top Hat Packers and Rubber Bladders are effective tools used for repairing pipes at hat profiles or T-shaped junctions. They allow for the insertion of a resin-saturated rubber bladder patch, which is then cured until it hardens, resulting in a seamless and durable repair.
Features:
- Ideal for residential connections in the main pipeline
- Available in various sizes to fit pipes with diameters from 40mm to 650mm
- Rubber bladders can be connected via a universal thread
- Can be inflated with compressed air up to the required pressure
- Once the resin has hardened, the packer is deflated and removed from the pipeline
- Provides a seamless and durable repair solution
Request a free quote
Tell us the sizes and quantities you need for Top Hat Packers and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal Size(mm) | Cylinder Length(mm/inch) | Max. Working Pressure(bar/psi) | Product Diameter(mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|
| EHP100 | 100 | 1000mm/39,37" | 3,0bar/43,51psi | 51mm/2,00" | N/A | 2,5kg/5,51lbs | |
| EHP150 | 150 | 1000mm/39,37" | 2,5bar/36,25psi | 60mm/2,36" | N/A | 4,5kg/9,92lbs | |
| EHP200225 | 200-225 | 1000mm/39,37" | 2,0bar/29,0psi | 116mm/4,56" | 25,40mm/1" | 6,5kg/14,33lbs | |
| EHP250300 | 250-300 | 1000mm/39,37" | 2,0bar/29,0psi | 125mm/4,92" | 50,80mm/2" | 8,5kg/18,74lbs | |
| EHP300350 | 300-350 | 1000mm/39,37" | 2,0bar/29,0psi | 150mm/5,90" | 50,80mm/2" | 10,5kg/23,15lbs | |
| EHP400450 | 400-450 | 1000mm/39,37" | 2,0bar/29,0psi | 200mm/7,87" | 50,80mm/2" | 16,0kg/35,27lbs | |
| EHP500550 | 500-550 | 1000mm/39,37" | 2,0bar/29,0psi | 250mm/9,84" | 50,80mm/2" | 20,0kg/44,09lbs | |
| EHP600650 | 600-650 | 1000mm/39,37" | 2,0bar/29,0psi | 345mm/13,58" | 50,80mm/2" | 28,0kg/61,73lbs |
8 sizes across 1 pressure class.Go to quote list
