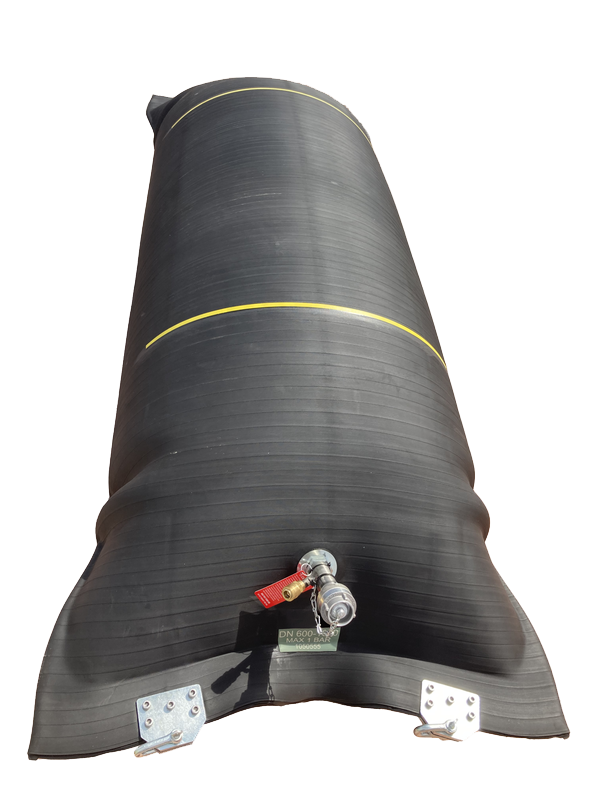

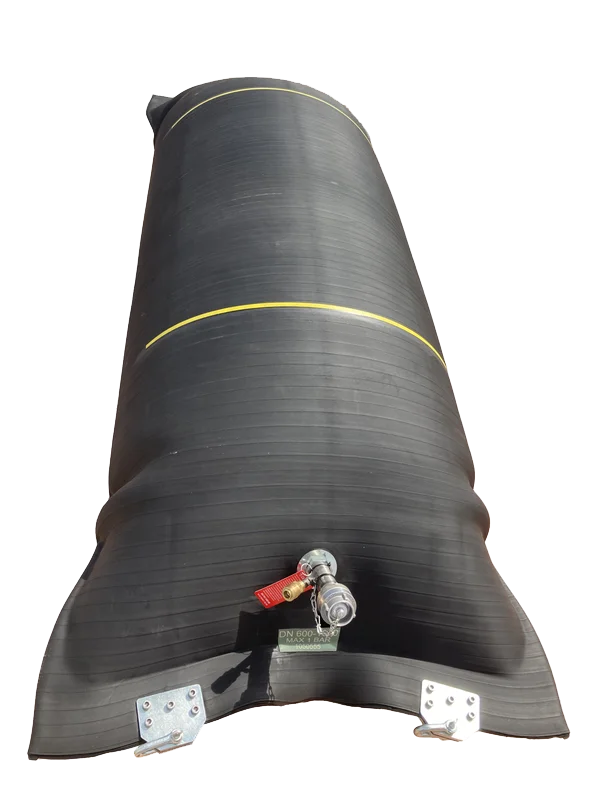

Pillow Type Packers With Bypass are inflatable packers designed for repairing damaged pipes without excavation. Their soft rubber structure allows them to fit the shape of oval, irregularly shaped, and circular pipes. The bypass design ensures uninterrupted flow during the repair process.
Features:
| Product Code | Nominal Size (mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Product Wide(mm/inch) | Product Length (mm/inch) | Max. Working Pressure (bar/psi) | Bypass Diameter(mm/inch) | Max. Contact (Repair)Length (mm/inch) | Product Weigth(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EPPB6001000/2500 | 600-1000 | 600mm/23,5" | 910mm/36,0" | 2500mm/98,5" | 1,0bar/14,5psi | 290mm/11,5" | 1000mm/39,0" | 28,8kg/63Ibs |
|
|
EPPB6001000/3500 | 600-1000 | 600mm/23,5" | 910mm/36,0" | 3500mm/137,0" | 1,0bar/14,5psi | 290mm/11,5" | 2000mm/78,5" | 37,0kg/81,5Ibs |
|
|
EPPB8001200/2500 | 800-1200 | 800mm/31,5" | 1200mm/47,0" | 2500mm/98,5" | 1,0bar/14,5psi | 323mm/12,5" | 1000mm/39,0" | 45,0kg/100,0Ibs |
|
|
EPPB8001200/3500 | 800-1200 | 800mm/31,5" | 1200mm/47,0" | 3500mm/137,0" | 1,0bar/14,5psi | 323mm/12,5" | 2000mm/78,5" | 52,0kg/114,0Ibs |
|
|
EPPB10001400/2500 | 1000-1400 | 1000mm/39,0" | 1550mm/61,0" | 2500mm/98,5" | 0,8bar/11,5psi | 340mm/13,5" | 1000mm/39,0" | 55,0kg/121,0Ibs |
|
|
EPPB10001400/3500 | 1000-1400 | 1000mm/39,0" | 1550mm/61,0" | 3500mm/137,0" | 0,8bar/11,5psi | 340mm/13,5" | 2000mm/78,5" | 65,0kg/143,0Ibs |
|
|
EPPB12001600/2500 | 1200-1600 | 1200mm/47,0" | 1800mm/71,0" | 2500mm/98,5" | 0,6bar/8,5psi | 340mm/13,5" | 1000mm/39,0" | 75,0kg/165,0Ibs |
|
|
EPPB12001600/3500 | 1200-1600 | 1200mm/47,0" | 1800mm/71,0" | 3500mm/137,0" | 0,6bar/8,5psi | 340mm/13,5" | 2000mm/78,5" | 84,0kg/185,0Ibs |
|
|
EPPB15002000/2800 | 1500-2000 | 1500mm/59,0" | 2300mm/90,5" | 2800mm/110,0" | 0,5bar/7,0psi | 406mm/16,0" | 1000mm/39,0" | 102,0kg/225,0Ibs |
|
|
EPPB15002000/3700 | 1500-2000 | 1500mm/59,0" | 2300mm/90,5" | 3700mm/145,5" | 0,5bar/7,0psi | 406mm/16,0" | 2000mm/78,5" | 120,0kg/264,0Ibs |
