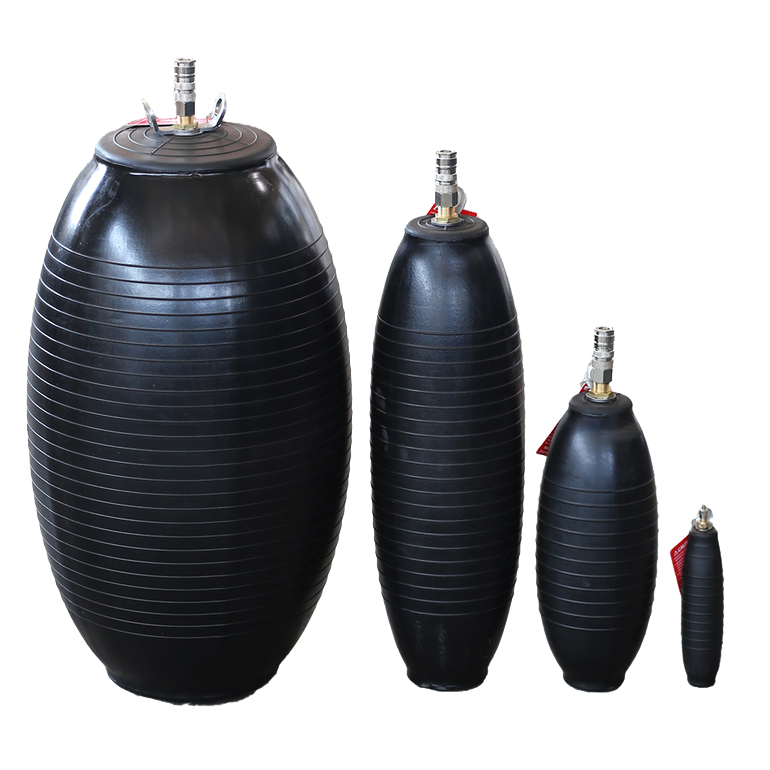

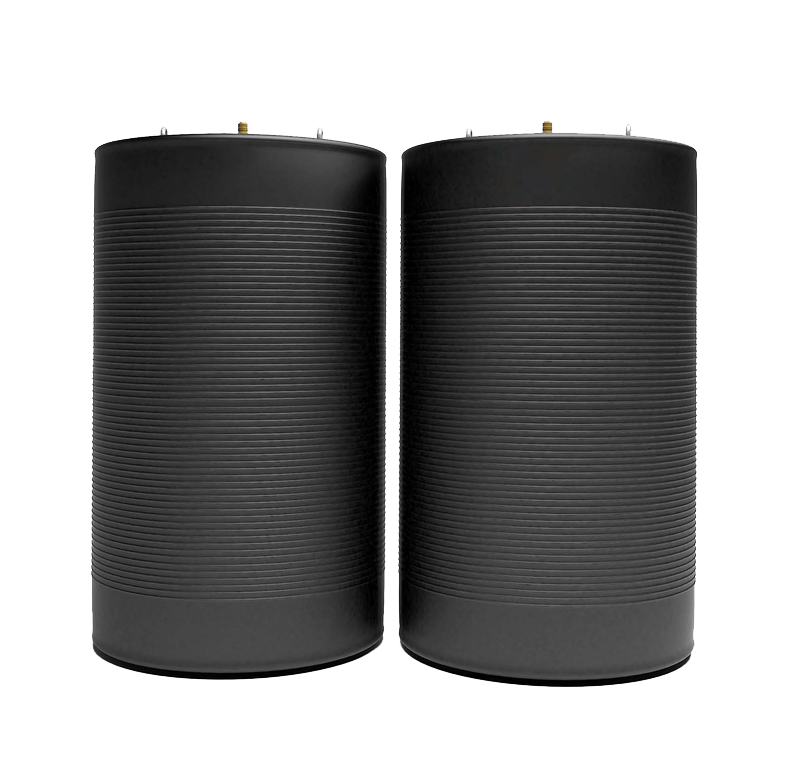

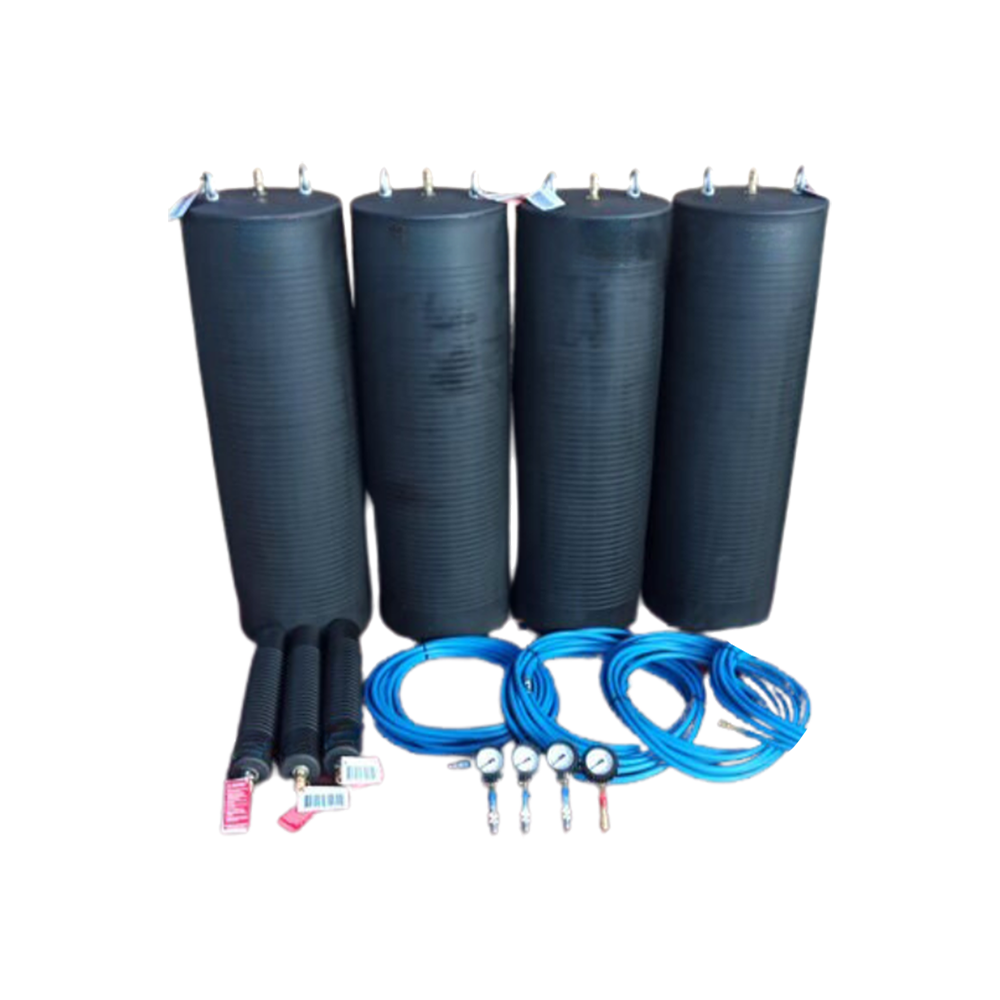

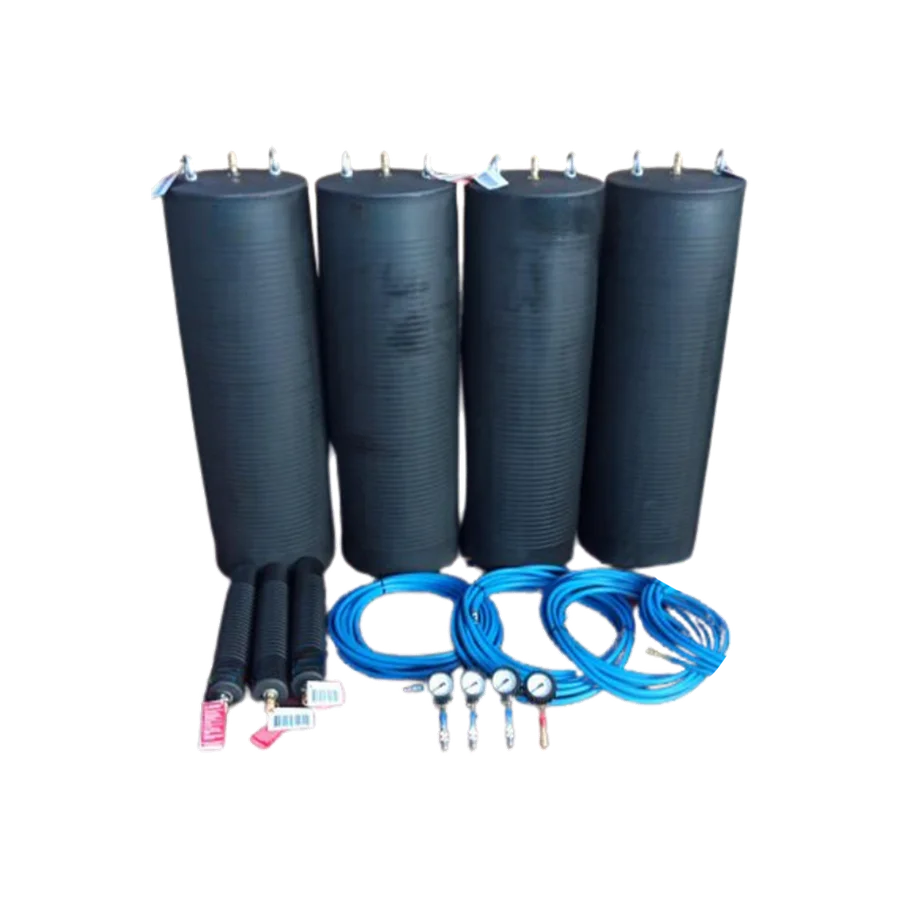

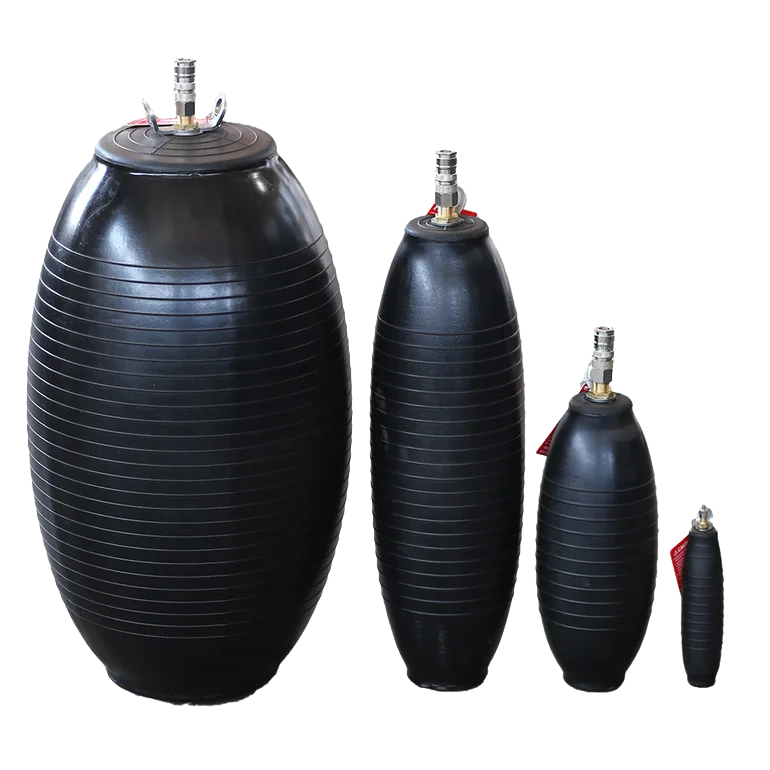

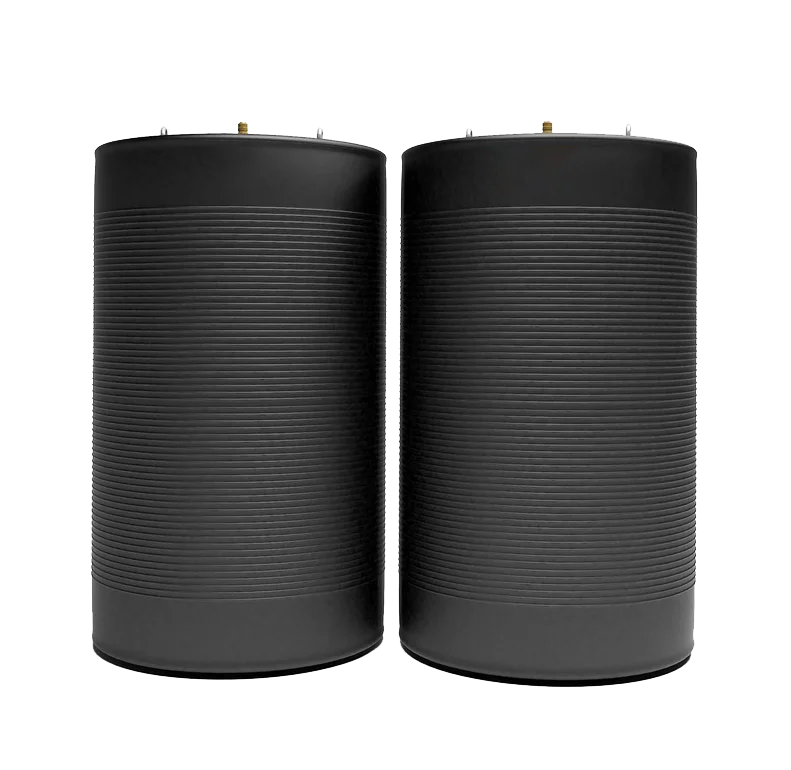

Oil and Gas High Pressure Pipe Stoppers are designed for use in the petrochemical industry and other chemical industries to seal and block pipelines where the back pressure exceeds the range of standard stoppers. These stoppers are adapted from conventional inflatable plugs, but are made from highly resistant materials that can withstand exposure to gasoline, oil, gases, and other chemicals.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EOGHS50 | 50 | 50mm/1.97 | 50mm/1.97 | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 280mm/11.02" | 0,4kg/0,88lbs |
|
|
EOGHS70 | 70 | 70mm/2.76" | 70mm/2.76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 65mm/2,51" | 320mm/12.6" | 0,6kg/1,32lbs |
|
|
EOGHS100 | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
|
EOGHS125 | 125 | 125mm/4,92" | 125mm/4,92" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
|
EOGHS150 | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs |
|
|
EOGHS200 | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
|
EOGHS250 | 250 | 250mm/9,84" | 250mm/9,84" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
|
EOGHS300 | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
|
EOGHS350 | 350 | 350mm/13,78" | 350mm/13,78" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
|
EOGHS400 | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs |
|
|
EOGHS450 | 450 | 450mm/17,72" | 450mm/17,72" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs |
|
|
EOGHS500 | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs |
|
|
EOGHS600 | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
|
EOGHS650 | 650 | 650mm/25,59" | 650mm/25,59" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
|
EOGHS700 | 700 | 700mm/27,56" | 700mm/27,56" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
|
EOGHS800 | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs |
|
|
EOGHS1200 | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs |
|
|
EOGHS1800 | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EOGHS5070 | 50-70 | 50mm/1.97" | 70mm/2.76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 280mm/11.02" | 0,4kg/0,88lbs |
|
|
EOGHS70100 | 70-100 | 70mm/2.76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 65mm/2,51" | 320mm/12.6" | 0,6kg/1,32lbs |
|
|
EOGHS100150 | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
|
EOGHS150200 | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs |
|
|
EOGHS200300 | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
|
EOGHS300400 | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
|
EOGHS375500 | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 380mm/14,96" | 1000mm/39,37" | 9,4kg/20,72Ibs |
|
|
EOGHS500600 | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs |
|
|
EOGHS600700 | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
|
EOGHS8001000 | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs |
|
|
EOGHS12001400 | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs |
|
|
EOGHS18002000 | 1800-2000 | 1800mm/70,86" | 2000mm/78,74 | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
