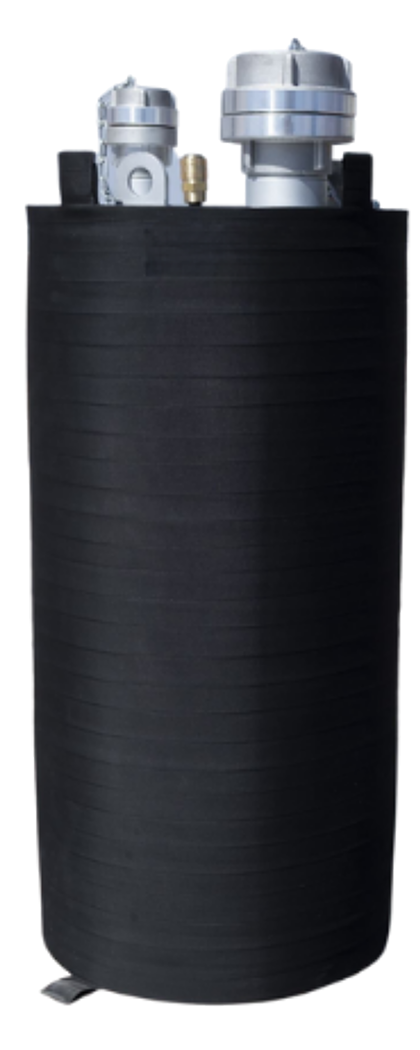

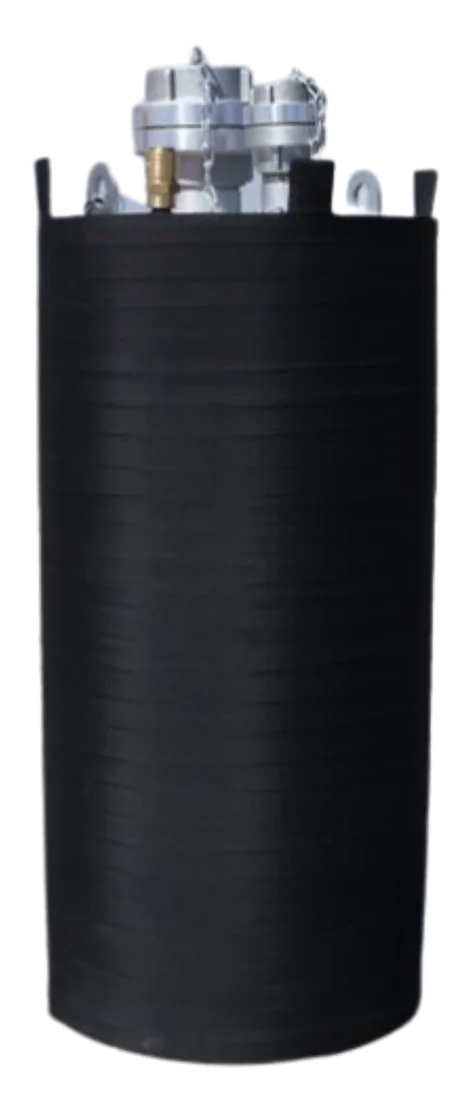

The Multi Size Metal Core Pipe Test Plugs make testing and repairing of sewage pipelines an effortless task. Made of reinforced rubber, they are designed to wrap around the bypass, diverting the flow in different directions without interrupting the regular flow. Available in a range of sizes, these test plugs are perfect to accommodate pipes of every diameter, from 70mm to 1200mm.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EMTP70150A | 70-150 | 70mm/2,76" | 150mm/5,91" | 1,5bar/21,75psi | 68mm/2,68" | 400mm/15,75" | 25,40mm/1" | 2,5kg/5,51lbs |
|
|
EMTP100150A | 100-150 | 100mm/3,94" | 150mm/5,91" | 1,5bar/21,75psi | 85mm/3,35" | 260mm/10,24" | 50,80mm/2" | 2,5kg/5,51lbs |
|
|
EMTP100200A | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,5bar/21,75psi | 92mm/3,62" | 400mm/15,75" | 25,40mm/1" | 4,5kg/9,92lbs |
|
|
EMTP100200B | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,5bar/21,75psi | 92mm/3,62" | 400mm/15,75" | 50,80mm/2" | 4,5kg/9,92lbs |
|
|
EMTP125200A | 125-200 | 125mm/4,92" | 200mm/7,87" | 1,5bar/21,75psi | 115mm/4,53" | 270mm/10,63" | 50,80mm/2" | 4,5kg/9,92lbs |
|
|
EMTP200500A | 200 - 500 | 200mm/7,87" | 500mm/19,69" | 1,5bar/21,75psi | 190mm/7,48" | 680mm/26,77" | 25,40mm/1"+50,80mm/2" | 11,7kg/25,79lbs |
|
|
EMTP200500B | 200 - 500 | 200mm/7,87" | 500mm/19,69" | 1,5bar/21,75psi | 190mm/7,48" | 680mm/26,77" | 76,20mm/3" | 15,0kg/33,06lbs |
|
|
EMTP300600A | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 270mm/10,63" | 680mm/26,77" | 25,40mm/1"+50,80mm/2" | 20,0kg/44,09lbs |
|
|
EMTP300600B | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 270mm/10,63" | 680mm/26,77" | 101,60mm/4" | 25,0kg/55,10lbs |
|
|
EMTP300750A | 300-750 | 300mm/11,81" | 750mm/29,52" | 1,5bar/21,75psi | 270mm/10,63" | 750mm/29,52" | 25,40mm/1"+50,80mm/2" | 30,0kg/66,12lbs |
|
|
EMTP500800A | 500 -800 | 500mm/19,69" | 800mm/31,5" | 1,5bar/21,75psi | 440mm/17,32" | 680mm/26,77" | 2 X 1" + 4" | 38,0kg/83,78lbs |
|
|
EMTP500800B | 500 -800 | 500mm/19,69" | 800mm/31,5" | 1,5bar/21,75psi | 440mm/17,32" | 680mm/26,77" | 152,40mm/6" | 43,0kg/94,78lbs |
|
|
EMTP5001200A | 500 -1200 | 500mm/19,69" | 1200mm/47,24" | 1,5bar/21,75psi | 440mm/17,32" | 980mm/38,58" | 2 X 1" + 4" | 50,0kg/110,23lbs |
|
|
EMTP5001200B | 500 -1200 | 500mm/19,69" | 1200mm/47,24" | 1,5bar/21,75psi | 440mm/17,32" | 980mm/38,58" | 152,40mm/6" | 55,0kg/121,22lbs |
