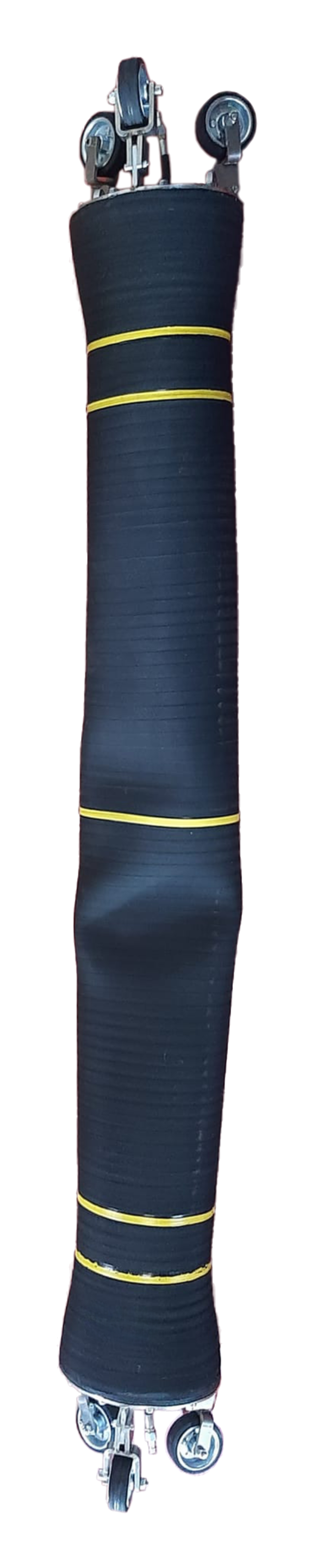

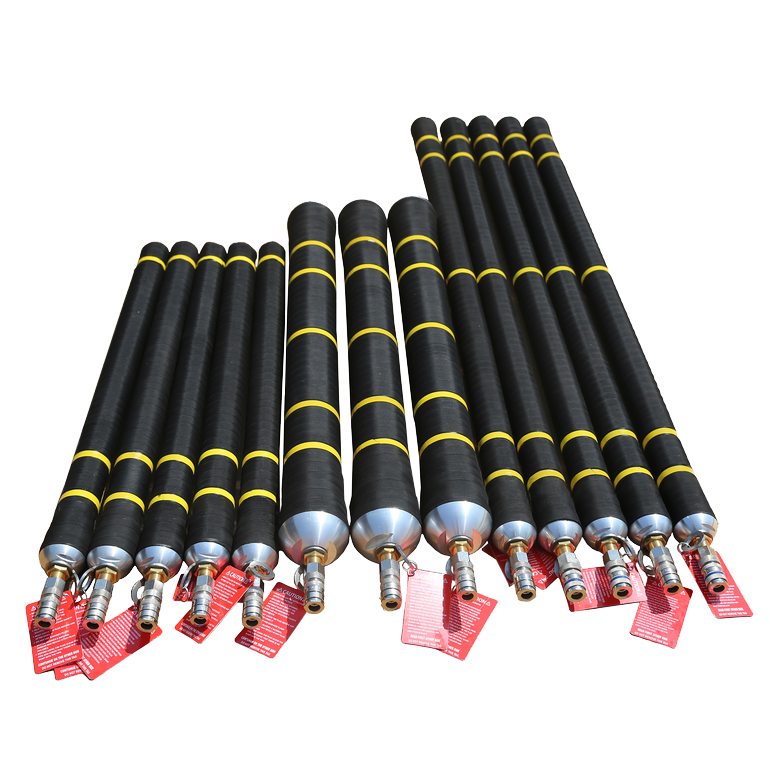

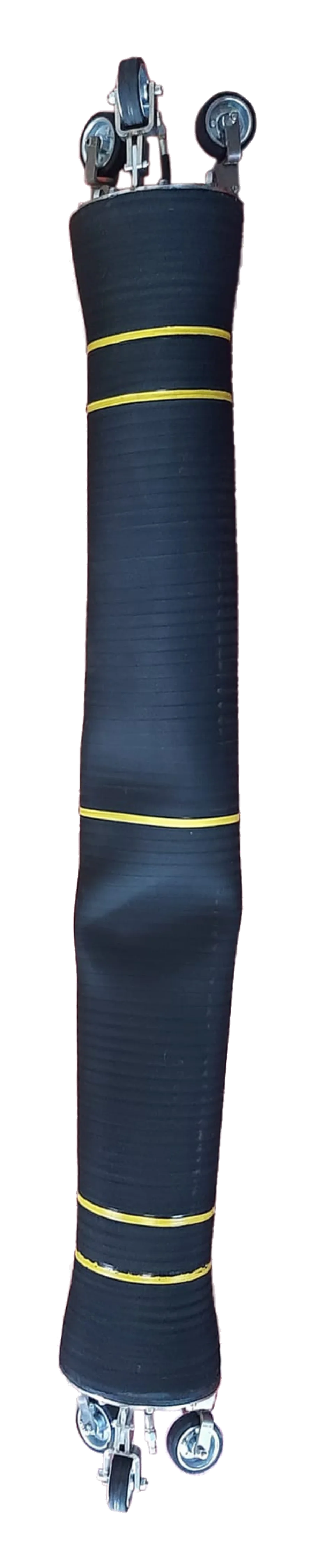

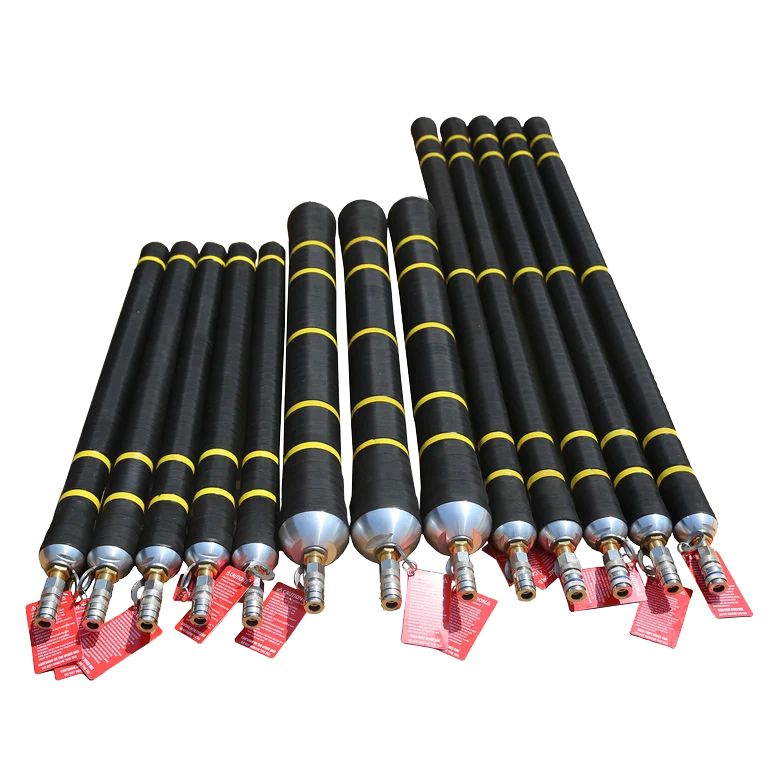

Multi Size Lateral Packers are designed to repair and maintain small-diameter pipes, especially in household plumbing systems. They are made up of a rubberized fabric tube with metal covers on both ends, which allows for easy insertion through bends and simplifies handling.
Features:
| Product Code | Nominal Size(mm) | Cylinder Length(mm/inch) | Max. Contact (Repair) Lenght (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|
|
|
ELP2535 | 25-35 | 600mm/23,62"-5000mm/196,85" | C.L-80mm/C.L-3,14" | 3,0bar/43,51psi | 20mm/0,78" | C.L+160mm/C.L+6,29" | 0,4kg/0,88lbs |
|
|
ELP3550 | 35-50 | 600mm/23,62"-5000mm/196,85" | C.L-80mm/C.L-3,14" | 3,0bar/43,51psi | 25mm / 0,98" | C.L+160mm/C.L+6,29" | 0,5kg/1,1lbs |
|
|
ELP5070 | 50-70 | 600mm/23,62"-5000mm/196,85" | C.L-150mm/C.L-5,90" | 3,0bar/43,51psi | 33mm/1,29" | C.L+160mm/C.L+6,29" | 0,6kg/1,32lbs |
|
|
ELP70100 | 70-100 | 600mm/23,62"-5000mm/196,85" | C.L-130mm/C.L-5,11" | 3,0bar/43,51psi | 51mm/2,0" | C.L+160mm/C.L+6,29" | 0,7kg/1,54lbs |
|
|
ELP80125 | 80-125 | 600mm/23,62"-5000mm/196,85" | C.L-150mm/C.L-5,90" | 3,0bar/43,51psi | 51mm/2,0" | C.L+160mm/C.L+6,29" | 0,7kg/1,54lbs |
|
|
ELP100150 | 100-150 | 600mm/23,62"-5000mm/196,85" | C.L-200mm/C.L-7,87" | 2,5bar/36,25psi | 60mm/2,36" | C.L+160mm/C.L+6,29" | 1,5kg/3,31lbs |
|
|
ELP150200 | 150-200 | 600mm/23,62"-5000mm/196,85" | C.L-200mm/C.L-7,87" | 2,5bar/36,25psi | 80mm/3,14" | C.L+160mm/C.L+6,29" | 1,7kg/3,75lbs |
|
|
ELP150250 | 150-250 | 600mm/23,62"-5000mm/196,85" | C.L-200mm/C.L-7,87 | 2,0bar/29,0psi | 116mm/4,56" | C.L+160mm/C.L+6,29" | 1,7kg/3,75lbs |
|
|
ELP200300 | 200-300 | 1000mm/39,37"-5000mm/196,85" | C.L-280mm/C.L-11,02" | 2,0bar/29,0psi | 150mm/5,9" | C.L+160mm/C.L+6,29" | 2,3kg/5,07lbs |
|
|
ELP300400 | 300-400 | 1000mm/39,37"-5000mm/196,85" | C.L-280mm/C.L-11,02" | 1,5bar/21,75psi | 231mm/9,09" | C.L+160mm/C.L+6,29" | 4,2kg/9,26lbs |
|
|
ELP400500 | 400-500 | 1000mm/39,37"-5000mm/196,85" | C.L-290mm/C.L-11,41" | 1,0bar/14,5psi | 345mm/13,58" | C.L+160mm/C.L+6,29" | 5,2kg/11,46lbs |
|
|
ELP450600 | 450-600 | 1000mm/39,37"-5000mm/196,85" | C.L-300mm/C.L-11,81" | 1,0bar/14,5psi | 345mm/13,58" | C.L+160mm/C.L+6,29" | 6,8kg/14,99lbs |
