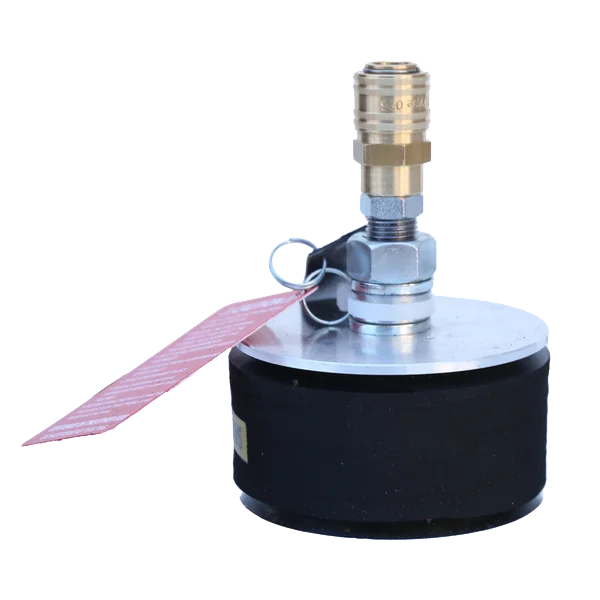

Mechanical Pipe Test Plugs

Mechanical Pipe Test Plugs are specially designed for conducting hydro tests on pipes with diameters ranging from ¼” to 12” (6mm to 300mm). These test plugs have a built-in bypass that ensures the smooth and efficient flow of liquids during testing. They are suitable for testing pipes made of various materials such as copper, steel, aluminum, HDPE, and more. These test plugs can withstand a maximum working pressure of 12 bar at 70-degree tests and can be produced for higher pressure upon request. They find extensive usage in construction, air conditioning, heating, and refrigeration applications.

Features:

  • Built-in bypass for efficient liquid flow during testing
  • Suitable for testing pipes with diameters ranging from ¼” to 12” (6mm to 300mm)
  • Compatible with various pipe materials such as copper, steel, aluminum, HDPE, and more
  • Can withstand a maximum working pressure of 12 bar at 70-degree tests
  • Available for higher pressure upon request
  • Versatile usage in construction, air conditioning, heating, and refrigeration applications
MECHANICAL PIPE TEST PLUGS (0,5 BAR/7,25 PSI - 2 BAR/29 PSI)
Product Code Nominal size(mm) Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Product Diameter (mm/inch) Back Pressure(bar/psi) Tightening Torque (N.m) Total Length of Product (mm/inch) Bypass Diameter (inch) Product Weight(kg/Ibs)
EMT6 6 6mm/0,24" 6,5mm/0,26" 5,5mm/0,22" 2,0bar/29,0psi H.T 54mm/2,13" 1/4" 0,1kg/0,22lbs
EMT10 10 9mm/0,35" 10mm/0,39" 8,5mm/0,33" 2,0bar/29,0psi H.T 54mm/2,13" 1/4" 0,1kg/0,22lbs
EMT12 12 12mm/0,47" 13mm/0,51" 11mm/0,43" 2,0bar/29,0psi H.T 54mm/2,13" 1/4" 0,1kg/0,22lbs
EMT15 15 15mm/0,59" 15mm/0,59" 14mm/0,55" 2,0bar/29,0psi H.T 64mm/2,52" 1/4" 0,1kg/0,22lbs
EMT20 20 20mm/0,79" 20mm/0,79" 19mm/0,75" 2,0bar/29,0psi H.T 64mm/2,52" 1/4" 0,1kg/0,22lbs
EMT30 30 29mm/1,14" 32mm/1,26" 25mm/0,98" 2,0bar/29,0psi 40 73mm/2,87" 1/4" 0,2kg/0,44lbs
EMT38 38 38mm/1,5" 40mm/1,57" 32mm/1,26" 2,0bar/29,0psi 40 75mm/2,95" 1/4" 0,3kg/0,66lbs
EMT50 50 49mm/1,93" 51mm/2,01" 45mm/1,77" 2,0bar/29,0psi 50 88mm/3,46" 1/4" 0,5kg/1,1lbs
EMT60 60 58mm/2,28" 61mm/2,4" 55mm/2,17" 2,0bar/29,0psi 70 98mm/3,86" 1/4" 0,7kg/1,54lbs
EMT75 75 72mm/2,83" 77mm/3,03" 70mm/2,76" 2,0bar/29,0psi 85 103mm/4,06" 1/4" 1,0kg/2,2lbs
EMT100 100 98mm/3,86" 102mm/4,02" 95mm/3,74" 1,0bar/14,5psi 105 103mm/4,06" 1/4" 1,5kg/3,31lbs
EMT125 125 122mm/4,8" 127mm/5,0" 120mm/4,72" 1,0bar/14,5psi 120 103mm/4,06" 1/4" 2,0kg/4,41lbs
EMT150 150 147mm/5,79" 153mm/6,02" 146mm/5,75" 1,0bar/14,5psi 140 106mm/4,17" 1/4" 2,6kg/5,73lbs
EMT200 200 197mm/7,76" 202mm/7,95" 194mm/7,64" 0,5bar/7,25psi 145 106mm/4,17" 1/4" 4,1kg/9,04lbs
EMT250 250 248mm/9,76" 252mm/9,92" 245mm/9,65" 0,5bar/7,25psi 150 109mm/4,29" 1/4" 5,0kg/11,02lbs
EMT300 300 298mm/11,73" 302mm/11,89" 295mm/11,61" 0,5bar/7,25psi 160 109mm/4,29" 1/4" 6,0kg/13,23lbs
