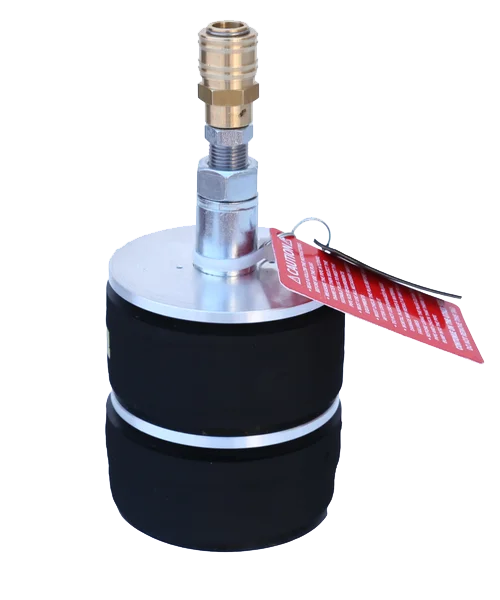

Mechanical Double Seal Pipe Test Plugs are essential tools used for testing pipes in various industries. Made of high-quality Galvanized steel, these plugs are designed to provide reliable and accurate testing results.
Features:
| Product Code | Nominal size(mm/inch) | Min. Pipe Inner Dia. to be tested(mm/inch) | Max. Pipe Inner Dia. to be tested(mm/inch) | Product Diameter(mm/inch) | Back Pressure(bar/psi) | Tightening Torque(N.m) | Total Length of Product(mm/inch) | Bypass Diameter(inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
EDSTP6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 6,0bar/87,0psi | H.T | 72mm/2,83" | 1/4" | 0,2kg/0,44lbs |
|
|
EDSTP10 | 9 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 6,0bar/87,0psi | H.T | 72mm/2,83" | 1/4" | 0,3kg/0,66lbs |
|
|
EDSTP12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 6,0bar/87,0psi | H.T | 72mm/2,83" | 1/4" | 0,3kg/0,66lbs |
|
|
EDSTP15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 6,0bar/87,0psi | H.T | 92mm/3,62" | 1/4" | 0,4kg/0,88lbs |
|
|
EDSTP20 | 20 | 19mm/0,75" | 20mm/0,79" | 19mm/0,75" | 6,0bar/87,0psi | H.T | 92mm/3,62" | 1/4" | 0,4kg/0,88lbs |
|
|
EDSTP30 | 30 | 29mm/1,14" | 32mm/1,26" | 27mm/1,06" | 6,0bar/87,0psi | 40 | 106mm/4,17" | 1/4" | 0,4kg/0,88lbs |
|
|
EDSTP38 | 38 | 37mm/1,46" | 40mm/1,57" | 35mm/1,38" | 6,0bar/87,0psi | 40 | 108mm/4,25" | 1/4" | 0,5kg/1,1lbs |
|
|
EDSTP50 | 50 | 49mm/1,93" | 51mm/2,01" | 47mm/1,85" | 6,0bar/87,0psi | 50 | 131mm/5,16" | 1/4" | 0,7kg/1,54lbs |
|
|
EDSTP60 | 60 | 58mm/2,28" | 61mm/2,4" | 57mm/2,24" | 6,0bar/87,0psi | 70 | 151mm/5,94" | 1/4" | 1,0kg/2,2lbs |
|
|
EDSTP75 | 75 | 74mm/2,91" | 77mm/3,03" | 72mm/2,83" | 6,0bar/87,0psi | 85 | 156mm/6,14" | 1/4" | 1,2kg/2,65lbs |
|
|
EDSTP100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 4,0bar/58,0psi | 105 | 156mm/6,14" | 1/4" | 1,5kg/3,31lbs |
|
|
EDSTP125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 4,0bar/58,0psi | 120 | 156mm/6,14" | 1/4" | 2,0kg/4,41lbs |
|
|
EDSTP150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 4,0bar/58,0psi | 140 | 159mm/6,26" | 1/4" | 2,5kg/5,51lbs |
|
|
EDSTP200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 3,0bar/43,5psi | 145 | 159mm/6,26" | 1/4" | 3,0kg/6,61lbs |
|
|
EDSTP250 | 250 | 247mm/9,72" | 252mm/9,92" | 245mm/9,65" | 2,0bar/29,0psi | 150 | 162mm/6,38" | 1/4" | 5,0kg/11,02lbs |
|
|
EDSTP300 | 300 | 297mm/11,69" | 302mm/11,89" | 295mm/11,61" | 2,0bar/29,0psi | 160 | 162mm/6,38" | 1/4" | 7,0kg/15,43lbs |
