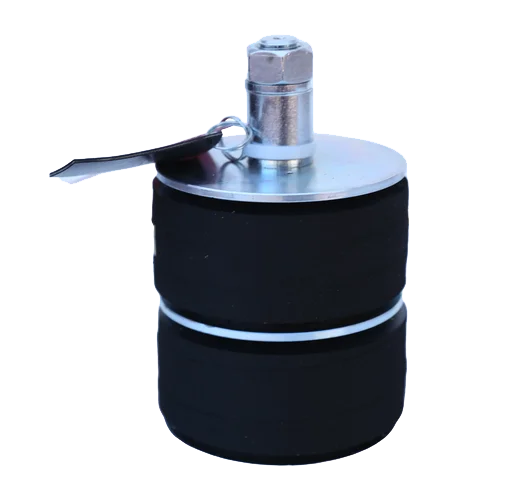

Mechanical Double Seal Pipe Plugs
Mechanical Double Seal Pipe Plugs are reliable and durable tools used for testing pipes in various industries. Made of high-quality Galvanized steel, these plugs are designed to withstand extreme conditions and provide excellent performance.
Features:
- Back pressure of 6.0 bar ensures reliable and accurate testing results.
- Recommended for testing pipes ranging from 6 mm (1/4") to 600 mm (24") in diameter.
- Can withstand temperatures up to 130 degrees Celsius, making them suitable for testing in high-temperature environments.
- All produced Metal Plugs undergo rigorous testing and are approved with a 3 times safety factor, ensuring their quality and safety.
Request a free quote
Tell us the sizes and quantities you need for Mechanical Double Seal Pipe Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure(bar/psi) | Tightening Torque (N.m) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| EDSP6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 6,0bar/87,0psi | H,T | 72mm/2,83" | 0,2kg/0,44lbs | |
| EDSP10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 6,0bar/87,0psi | H,T | 72mm/2,83" | 0,3kg/0,66lbs | |
| EDSP12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 6,0bar/87,0psi | H,T | 72mm/2,83" | 0,3kg/0,66lbs | |
| EDSP15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 6,0bar/87,0psi | H,T | 92mm/3,62" | 0,4kg/0,88lbs | |
| EDSP20 | 20 | 19mm/0,75" | 20mm/0,79" | 19mm/0,75" | 6,0bar/87,0psi | H,T | 92mm/3,62" | 0,4kg/0,88lbs | |
| EDSP30 | 30 | 29mm/1,14" | 32mm/1,26" | 27mm/1,06" | 6,0bar/87,0psi | H,T | 106mm/4,17" | 0,4kg/0,88lbs | |
| EDSP38 | 38 | 37mm/1,46" | 40mm/1,57" | 35mm/1,38" | 6,0bar/87,0psi | 50 | 108mm/4,25" | 0,5kg/1,1lbs | |
| EDSP50 | 50 | 49mm/1,93" | 51mm/2,01" | 47mm/1,85" | 6,0bar/87,0psi | 60 | 131mm/5,16" | 0,7kg/1,54lbs | |
| EDSP60 | 60 | 58mm/2,28" | 61mm/2,4" | 57mm/2,24" | 6,0bar/87,0psi | 60 | 151mm/5,94" | 1,0kg/2,2lbs | |
| EDSP75 | 75 | 74mm/2,91" | 77mm/3,03" | 72mm/2,83" | 6,0bar/87,0psi | 80 | 156mm/6,14" | 1,2kg/2,65lbs | |
| EDSP100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 4,0bar/58,0psi | 150 | 156mm/6,14" | 1,5kg/3,31lbs | |
| EDSP125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 4,0bar/58,0psi | 160 | 156mm/6,14" | 2,0kg/4,41lbs | |
| EDSP150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 4,0bar/58,0psi | 160 | 159mm/6,26" | 2,5kg/5,51lbs | |
| EDSP200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 3,0bar/43,5psi | 170 | 159mm/6,26" | 3,0kg/6,61lbs | |
| EDSP250 | 250 | 247mm/9,72" | 252mm/9,92" | 245mm/9,65" | 2,0bar/29,0psi | 170 | 162mm/6,38" | 5,0kg/11,02lbs | |
| EDSP300 | 300 | 297mm/11,69" | 302mm/11,89" | 295mm/11,61" | 2,0bar/29,0psi | 170 | 162mm/6,38" | 7,0kg/15,43lbs |
16 sizes across 1 pressure class.Go to quote list
