Inflatable Pillow Pipe Test Plugs

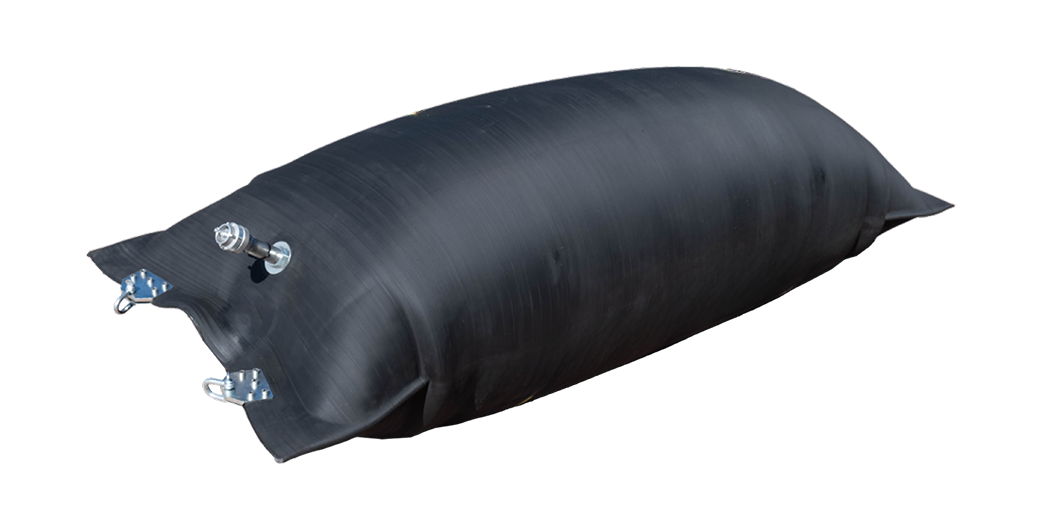

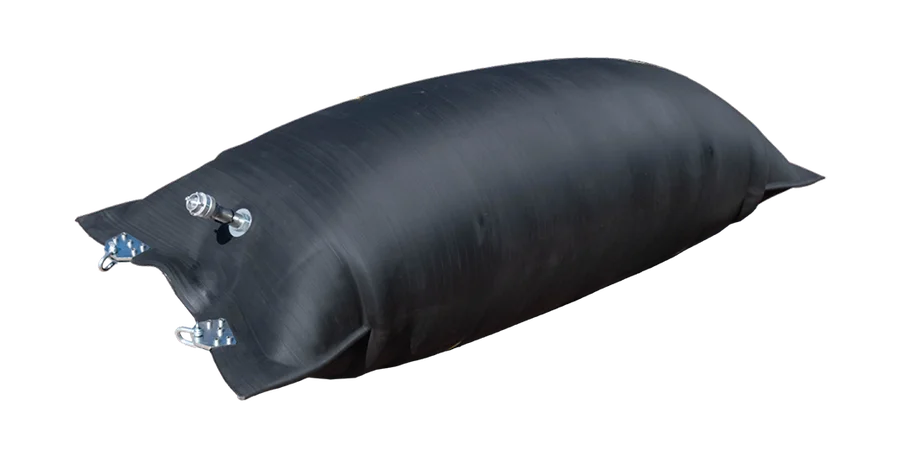

Pillow Pipe Test Plugs are inflatable devices that are mainly used for leak detection tests in drainage systems, pipelines, gullies, and sewers. They are ideal for acceptance testing of newly installed pipes following the installation of sewers.
Features:
- Flexible and easy to install using standard gullies and manholes.
- Suitable for use in large diameter pipes ranging from 600mm to 2800mm.
- Specified Standard working pressures between 1.0 bar to 0.5 bar.
Request a free quote
Tell us the sizes and quantities you need for Inflatable Pillow Pipe Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|
| EPT6001000 | 600-1000 | 600mm/23,62" | 1000mm/39,37" | 1,0bar/14,50psi | 2000mm/78,74" | 50,80mm/2" | 28,8kg/63,49lbs | |
| EPT8001200 | 800-1200 | 800mm/31,5" | 1200mm/47,24" | 0,9bar/13,05psi | 2400mm/94,49" | 50,80mm/2" | 45,0kg/99,21lbs | |
| EPT10001400 | 1000-1400 | 1000mm/39,37" | 1400mm/55,12" | 0,8bar/11,60psi | 2700mm/106,30" | 50,80mm/2" | 54,0kg/119,05lbs | |
| EPT14001800 | 1400-1800 | 1400mm/55,12" | 1800mm/70,87" | 0,6bar/8,70psi | 3200mm/125,98" | 50,80mm/2" | 75,0kg/165,35lbs | |
| EPT18002800 | 1800-2800 | 1800mm/70,87" | 2800mm/110,24" | 0,5bar/7,25psi | 5000mm/196,85" | 50,80mm/2" | 100,0kg/220,46lbs |
5 sizes across 1 pressure class.Go to quote list
