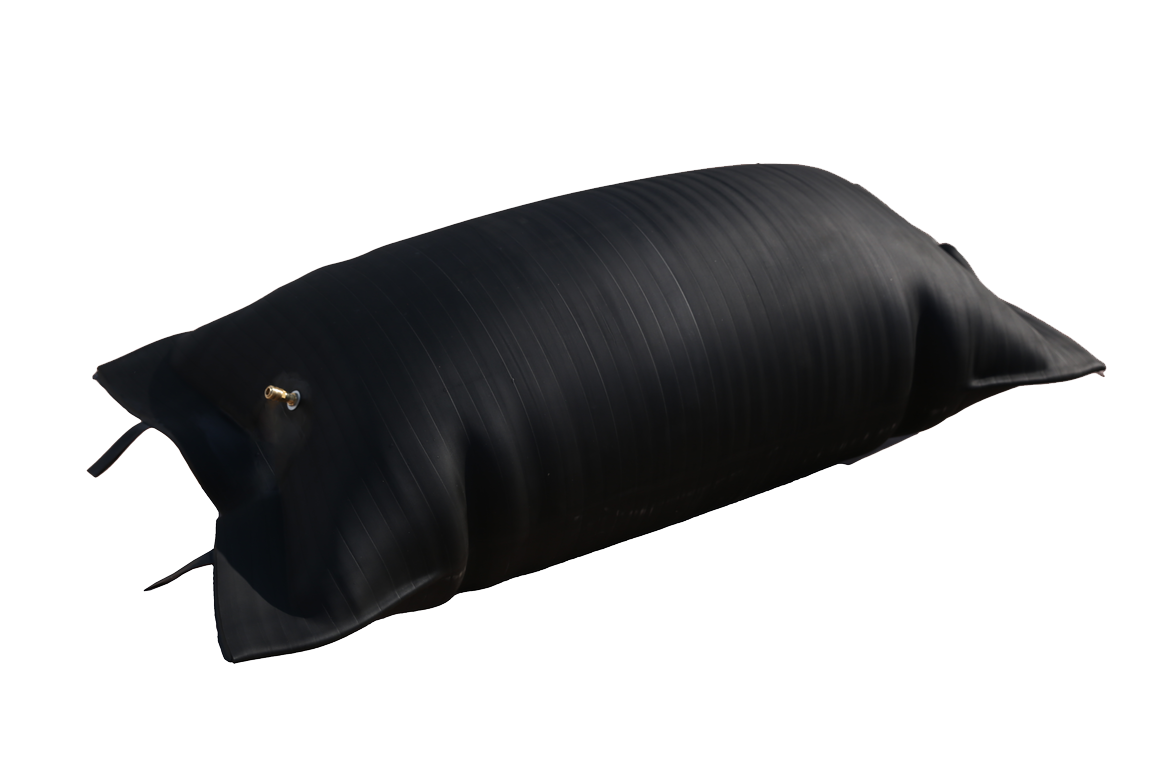

Inflatable Pillow Pipe Stoppers are designed to seal and block pipeline systems in sewers and storm sewers. They are fabricated with Kevlar reinforcement, which allows for large diameters up to 2800mm. Their flexible design makes them easy to move into place from manholes.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Total Length of Product (mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|
|
|
EPS6001000 | 600-1000 | 600mm/23,62" | 1000mm/39,37" | 1,0bar/14,50psi | 2000mm/78,74" | 23,0kg/50,71lbs |
|
|
EPS8001200 | 800-1200 | 800mm/31,5" | 1200mm/47,24" | 0,9bar/13,05psi | 2400mm/94,49" | 38,0kg/83,78lbs |
|
|
EPS10001400 | 1000-1400 | 1000mm/39,37" | 1400mm/55,12" | 0,8bar/11,60psi | 2700mm/106,30" | 45,0kg/99,21lbs |
|
|
EPS14001800 | 1400-1800 | 1400mm/55,12" | 1800mm/70,87" | 0,6bar/8,70psi | 3200mm/125,98" | 70,0kg/154,32lbs |
|
|
EPS18002800 | 1800-2800 | 1800mm/70,87" | 2800mm/110,24" | 0,5bar/7,25psi | 5000mm/196,85" | 95,0kg/209,44lbs |
