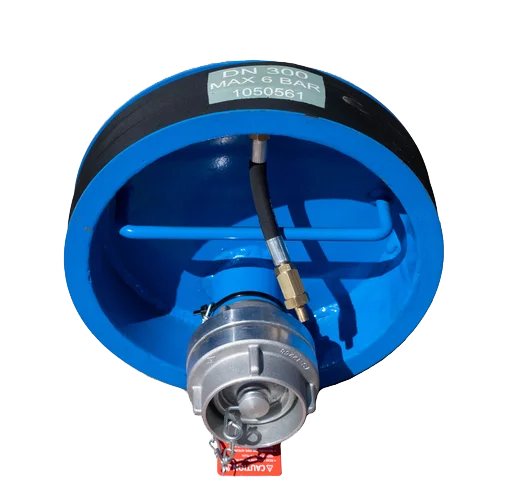

Inflatable Metal Test Plugs
Inflatable Metal Test Plugs are a versatile tool designed for testing and sealing sewers, drainage systems, pipelines, and gullies. These plugs consist of a robust metal core with a passageway and a high-quality rubber jacket that can be inflated via a valve. The plugs are an ideal solution for locating leaks and testing with both air and water.
Features:
- Robust metal core with a passageway and high-quality rubber jacket
- Inflatable via valve for easy installation and removal
- Suitable for testing and sealing sewers, drainage systems, pipelines, and gullies
- Ideal for leak locating and testing with air or water
- Available for pipe diameters from 200 mm to 1000 mm
- Can be produced for higher or lower diameters
- Standard working pressure of 6.0 bar (87.02 psi)
Request a free quote
Tell us the sizes and quantities you need for Inflatable Metal Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure(bar/psi) | Bypass Diameter(inch) | Product Length(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| ESTP40 | 40 | 36mm/1,42" | 50mm/1,97" | 35mm/1,38" | 2,0bar/29,0psi | 1/2" | 35mm/1,38" | 0,2kg/0,44lbs | |
| ESTP50 | 50 | 50mm/1,97" | 60mm/2,36" | 45mm/1,77" | 2,0bar/29,0psi | 1/2" | 40mm/1,57" | 0,3kg/0,66lbs | |
| ESTP65 | 65 | 60mm/2,36" | 75mm/2,95" | 59mm/2,32" | 2,0bar/29,0psi | 1/2" | 55mm/2,17" | 0,5kg/1,1lbs | |
| ESTP75 | 75 | 70mm/2,76" | 85mm/3,35" | 69mm/2,72" | 1,2bar/17,4psi | 1/2" | 55mm/2,17" | 0,7kg/1,54lbs | |
| ESTP90 | 90 | 85mm/3,35" | 100mm/3,94" | 84mm/3,31" | 1,0bar/14,5psi | 1/2" | 55mm/2,17" | 0,72kg/1,59lbs | |
| ESTP100 | 100 | 95mm/3,74" | 105mm/4,13" | 94mm/3,7" | 0,6bar/8,7psi | 1/2" | 55mm/2,17" | 0,75kg/1,65lbs | |
| ESTP115 | 115 | 110mm/4,33" | 125mm/4,92" | 109mm/4,29" | 0,6bar/8,7psi | 1/2" | 55mm/2,17" | 0,8kg/1,76lbs | |
| ESTP125 | 125 | 120mm/4,72" | 140mm/5,51" | 119mm/4,69" | 0,6bar/8,7psi | 1/2" | 55mm/2,17" | 0,85kg/1,87lbs | |
| ESTP150 | 150 | 145mm/5,71" | 160mm/6,3" | 144mm/5,67" | 0,5bar/7,25psi | 1/2" | 55mm/2,17" | 0,9kg/1,98lbs | |
| ESTP175 | 175 | 175mm/6,89" | 200mm/7,87" | 170mm/6,69" | 0,4bar/5,8psi | 1/2" | 55mm/2,17" | 1,2kg/2,65lbs | |
| ESTP200 | 200 | 195mm/7,68" | 215mm/8,46" | 194mm/7,64" | 0,4bar/5,8psi | 1/2" | 55mm/2,17" | 1,7kg/3,75lbs | |
| ESTP225 | 225 | 220mm/8,66" | 230mm/9,06" | 219mm/8,62" | 0,4bar/5,8psi | 1/2" | 55mm/2,17" | 2,0kg/4,41lbs | |
| ESTP250 | 250 | 245mm/9,65" | 260mm/10,24" | 244mm/9,61" | 0,4bar/5,8psi | 1/2" | 55mm/2,17" | 2,3kg/5,07lbs | |
| ESTP300 | 300 | 296mm/11,65" | 320mm/12,6" | 295mm/11,61" | 0,3bar/4,35psi | 1/2" | 55mm/2,17" | 3,1kg/6,83lbs | |
| ESTP350 | 350 | 345mm/13,58" | 385mm/15,16" | 344mm/13,54" | 0,3bar/4,35psi | 1/2" | 55mm/2,17" | 3,8kg/8,38lbs | |
| ESTP375 | 375 | 370mm/14,57" | 415mm/16,34" | 369mm/14,53" | 0,3bar/4,35psi | 1/2" | 55mm/2,17" | 4,4kg/9,7lbs | |
| ESTP400 | 400 | 396mm/15,59" | 430mm/16,93" | 395mm/15,55" | 0,3bar/4,35psi | 1/2" | 80mm/3,15" | 4,9kg/10,8lbs | |
| ESTP450 | 450 | 448mm/17,64" | 495mm/19,49" | 445mm/17,52" | 0,3bar/4,35psi | 1/2" | 80mm/3,15" | 6,5kg/14,33lbs | |
| ESTP500 | 500 | 495mm/19,49" | 558mm/21,97" | 494mm/19,45" | 0,2bar/2,9psi | 1/2" | 80mm/3,15" | 7,6kg/16,76lbs |
19 sizes across 1 pressure class.Go to quote list
