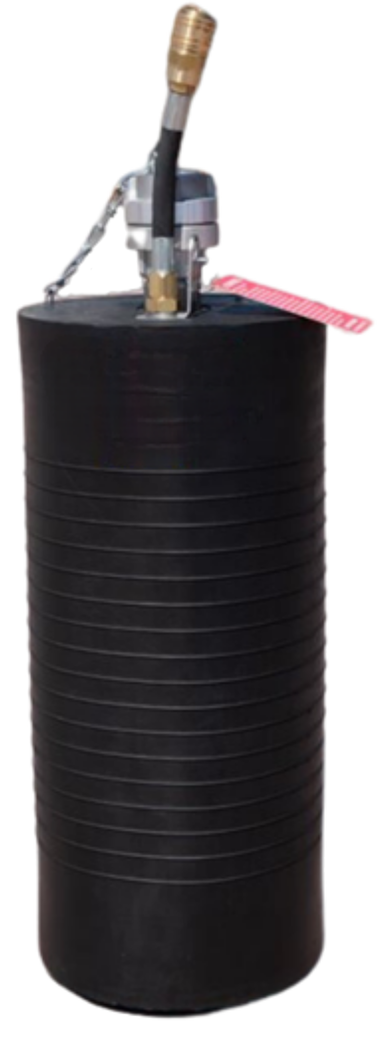

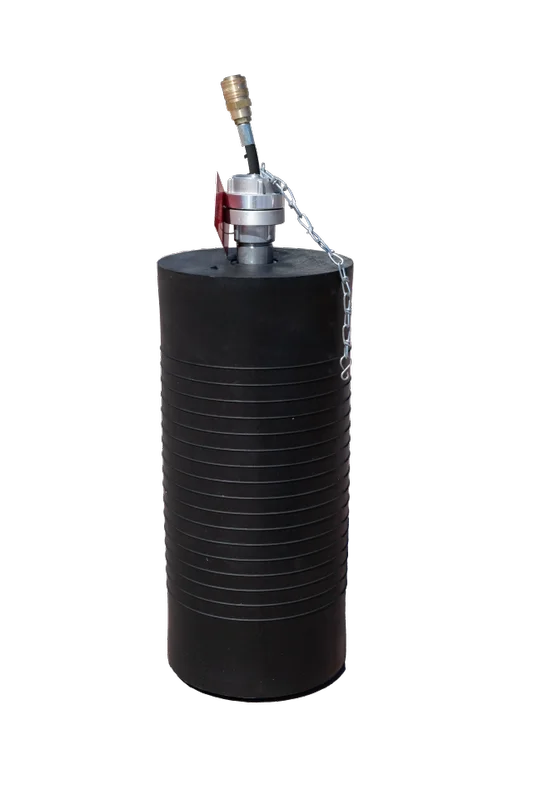

Our Inflatable Medium Size Pipe Test Plugs provide a reliable way to repair, maintain and test pipes in residential applications. With diameters ranging from 50 mm to 400 mm and the ability to customize to other sizes, you can be sure these test plugs are ready to meet all your needs. Also capable of withstanding a working pressure of 2.5 bar and a back pressure tolerance of 1 bar, these are the perfect solution for any pipe repair or maintenance job.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
ETP50100 | 50-100 | 45mm/1,77" | 100mm/3,94" | 2,5bar/36,25psi | 45mm/1,77" | 150mm/5,91" | 3,17mm/1/8" | 1,0kg/2,2lbs |
|
|
ETP70150 | 70-150 | 70mm/2,76" | 150mm/5,91" | 2,5bar/36,25psi | 65mm/2,56" | 200mm/7,87" | 6,35mm/1/4" | 1,2kg/2,65lbs |
|
|
ETP100200 | 100-200 | 100mm/3,94" | 200mm/7,87" | 2,5bar/36,25psi | 88mm/3,46" | 200mm/7,87" | 12,70mm/1/2" | 1,2kg/2,65lbs |
|
|
ETP150300 | 150-300 | 150mm/5,91" | 300mm/11,81" | 2,5bar/36,25psi | 140mm/5,51" | 300mm/11,81" | 25,40mm/1" | 2,0kg/4,41lbs |
|
|
ETP200400 | 200-400 | 200mm/7,87" | 400mm/15,75" | 2,5bar/36,25psi | 180mm/7,09" | 400mm/15,75" | 50,80mm/2" | 5,0kg/11,02lbs |
