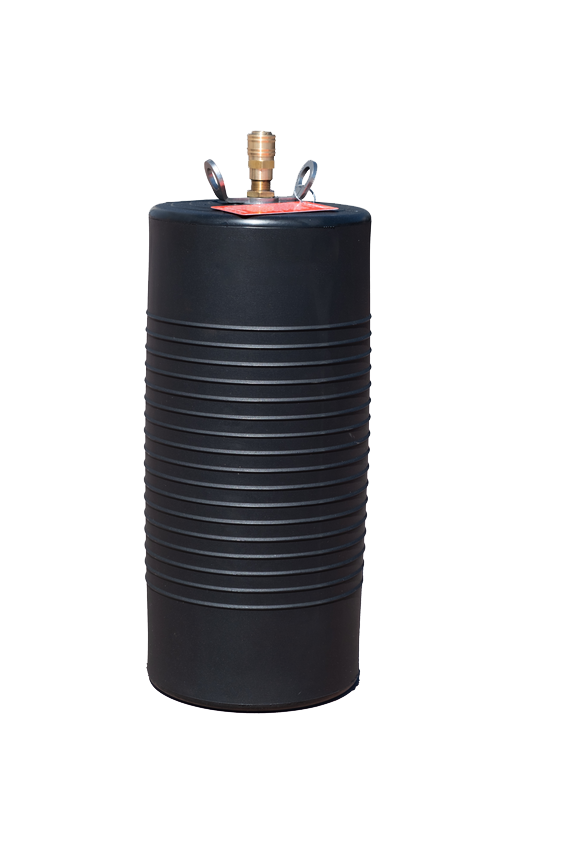

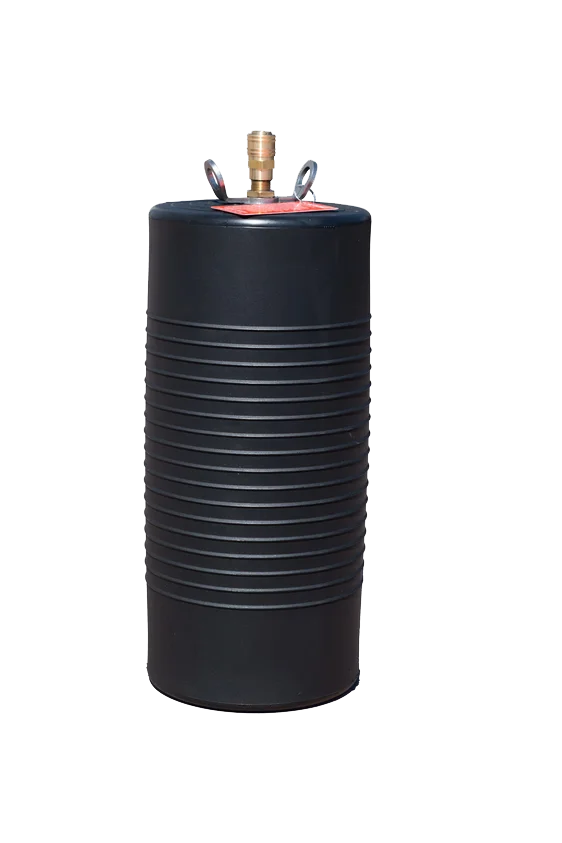

Inflatable Medium Size Pipe Stoppers
Upgrade your pipelines and sewers with our Inflatable Medium Size Pipe Stopper. This reliable seal will help to protect your drainage systems from water, gas and dust, helping you to maintain the highest standards of safety within your construction.
Features:
- Seals or closes drainage systems to prevent ingress of water, gas, construction waste and dust
- Available in a range of sizes to fit pipes of diameters ranging from 50mm to 400mm
- Capable of withstanding a working pressure of 2.5 bar and a back pressure tolerance of 1 bar
- Ready for use in temperatures ranging from -40°C to 70°C
- Can be customized for specific pressure specifications
Request a free quote
Tell us the sizes and quantities you need for Inflatable Medium Size Pipe Stoppers and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter(mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|
| EM50100 | 50-100 | 45mm/1,77" | 100mm/3,94" | 2,5bar/36,25psi | 45mm/1,77" | 150mm/5,91" | 0,3kg/0,66lbs | |
| EM70150 | 70-150 | 70mm/2,76" | 150mm/5,91" | 2,5bar/36,25psi | 65mm/2,56" | 200mm/7,87" | 0,4kg/0,88lbs | |
| EM100200 | 100-200 | 100mm/3,94" | 200mm/7,87" | 2,5bar/36,25psi | 88mm/3,46" | 200mm/7,87" | 1,0kg/2,20lbs | |
| EM150300 | 150-300 | 150mm/5,91" | 300mm/11,81" | 2,5bar/36,25psi | 140mm/5,51" | 300mm/11,81" | 1,6kg/3,53lbs | |
| EM200400 | 200-400 | 200mm/7,87" | 400mm/15,75" | 2,5bar/36,25psi | 180mm/7,09" | 400mm/15,75" | 2,4kg/5,29lbs |
5 sizes across 1 pressure class.Go to quote list
