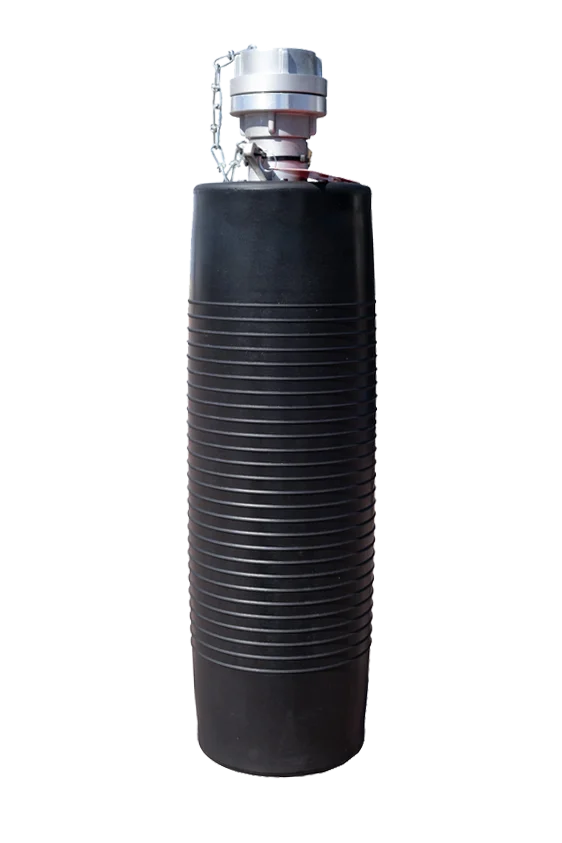

Inflatable High Pressure Test Plugs

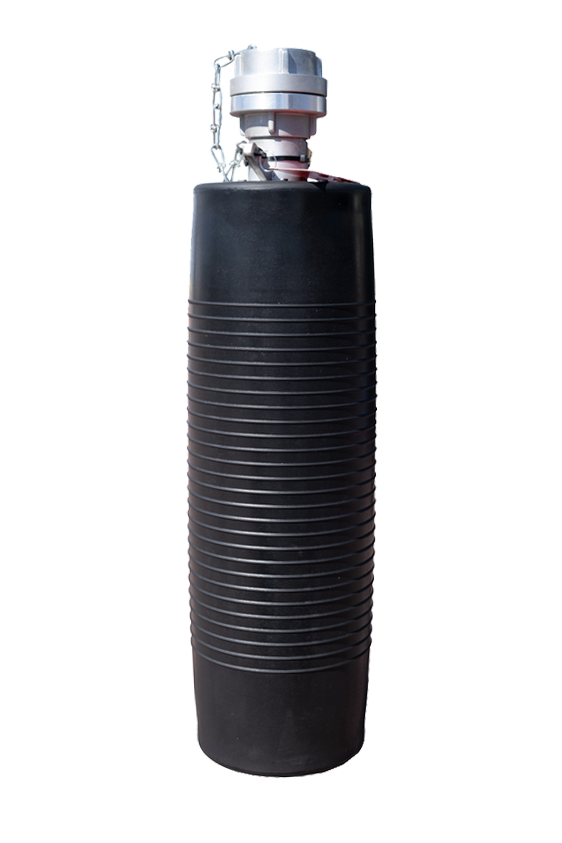

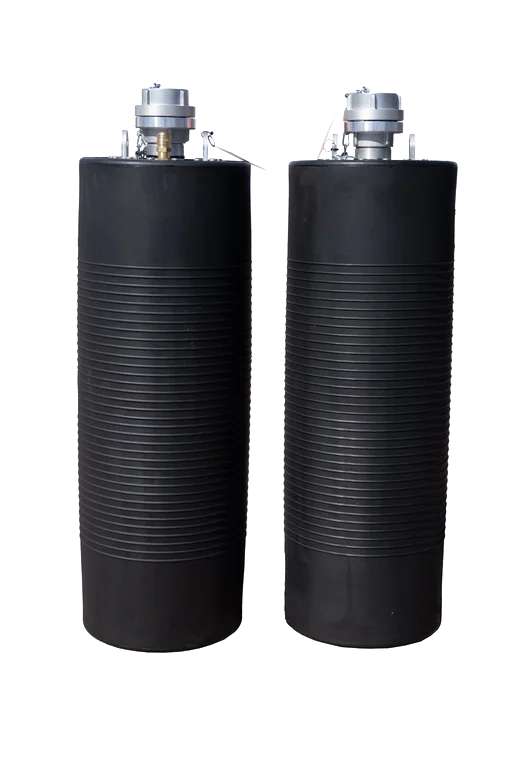

Inflatable High Pressure Test Plugs are a reliable solution for testing sewers, drainage systems, pipelines, and gullies with high back pressure. Made entirely of special premium rubber with aramid fiber reinforcement, these plugs are strong and durable. Available for pipes with a diameter of 50mm to 2000mm, they can be used for a wide range of applications. The operating pressures of 6 bar and 12 bar ensure that they can handle high-pressure testing with ease. These test plugs are frequently utilized to redirect flow via bypass for repairs and technical support.
Features:
- Designed for testing sewers, drainage systems, pipelines, and gullies with high back pressure
- Made of special premium rubber with aramid fiber reinforcement
- Available for pipes with diameter 50mm to 2000mm
- Operating pressures of 6 bar and 12 bar
Request a free quote
Tell us the sizes and quantities you need for Inflatable High Pressure Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
- INFLATABLE HIGH PRESSURE PIPE TEST PLUGS (12,0 BAR/174,04 PSI)
- INFLATABLE HIGH PRESSURE PIPE TEST PLUGS (6,0 BAR/87,02 PSI)
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|---|
| EHT50A | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs | |
| EHT50B | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs | |
| EHT70A | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs | |
| EHT70B | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs | |
| EHT100A | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs | |
| EHT100B | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs | |
| EHT150A | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs | |
| EHT150B | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs | |
| EHT200A | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs | |
| EHT200B | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs | |
| EHT300A | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs | |
| EHT300B | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2" + 25,4mm/1" | 11,7kg/25,79lbs | |
| EHT400A | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs | |
| EHT400B | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs | |
| EHT500A | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs | |
| EHT500B | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs | |
| EHT600A | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs | |
| EHT600B | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs | |
| EHT800A | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs | |
| EHT800B | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs | |
| EHT1200A | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs | |
| EHT1200B | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs | |
| EHT1800A | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs | |
| EHT1800B | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|---|
| EHT5070A | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs | |
| EHT5070B | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs | |
| EHT70100A | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs | |
| EHT70100B | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs | |
| EHT100150A | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs | |
| EHT100150B | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs | |
| EHT150200A | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs | |
| EHT150200B | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs | |
| EHT200300A | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs | |
| EHT200300B | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs | |
| EHT300400A | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs | |
| EHT300400B | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2" + 25,4mm/1" | 11,7kg/25,79lbs | |
| EHT375500A | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs | |
| EHT375500B | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs | |
| EHT500600A | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs | |
| EHT500600B | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs | |
| EHT600700A | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs | |
| EHT600700B | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs | |
| EHT8001000A | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs | |
| EHT8001000B | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs | |
| EHT12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs | |
| EHT12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs | |
| EHT18002000A | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs | |
| EHT18002000B | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
48 sizes across 2 pressure classes.Go to quote list
