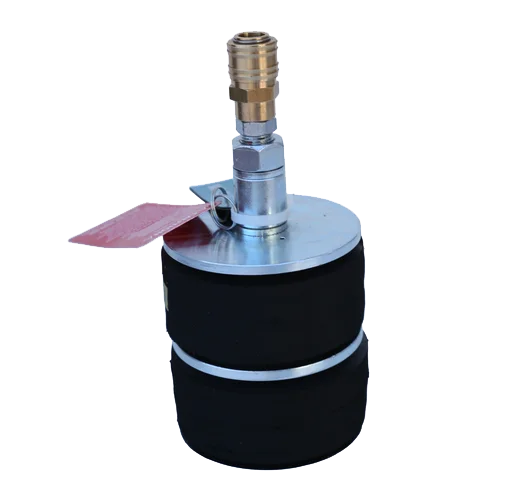

High Pressure Double Seal Pipe Test Plugs
Our High Pressure Double Seal Pipe Test Plugs are specially designed to provide reliable and secure sealing for testing pipelines. Made of galvanized steel, these test plugs can withstand high pressure and are recommended for testing pipes ranging from 6mm (1/4") to 300mm (12").
Features:
- Back pressure (sliding pressure value) of 12.0 bar
- 3 times safety factor: all produced metal plugs are tested and approved for reliable performance
- Easy installation process
- Temperature tolerance up to 130°C
Request a free quote
Tell us the sizes and quantities you need for High Pressure Double Seal Pipe Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal size (mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure (bar/psi) | Tightening Torque(N.m) | Total Length of Product (mm/inch) | Bypass Diameter(inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|---|
| EDSHT6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 12,0bar/174psi | H,T | 78mm/3,07" | 1/4" | 0,1kg/0,22lbs | |
| EDSHT10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 12,0bar/174psi | H,T | 78mm/3,07" | 1/4" | 0,15kg/0,33lbs | |
| EDSHT12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 12,0bar/174psi | H,T | 78mm/3,07" | 1/4" | 0,18kg/0,4lbs | |
| EDSHT15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 12,0bar/174psi | H,T | 98mm/3,86" | 1/4" | 0,2kg/0,44lbs | |
| EDSHT20 | 20 | 19mm/0,75" | 20mm/0,79" | 19mm/0,75" | 12,0bar/174psi | H,T | 98mm/3,86" | 1/4" | 0,2kg/0,44lbs | |
| EDSHT30 | 30 | 29mm/1,14" | 32mm/1,26" | 27mm/1,06" | 12,0bar/174psi | 40 | 112mm/4,41" | 1/4" | 0,3kg/0,66lbs | |
| EDSHT38 | 38 | 37mm/1,46" | 40mm/1,57" | 35mm/1,38" | 12,0bar/174psi | 50 | 114mm/4,49" | 1/4" | 0,4kg/0,88lbs | |
| EDSHT50 | 50 | 49mm/1,93" | 51mm/2,01" | 47mm/1,85" | 12,0bar/174psi | 60 | 137mm/5,39" | 1/4" | 0,5kg/1,1lbs | |
| EDSHT60 | 60 | 58mm/2,28" | 61mm/2,4" | 57mm/2,24" | 12,0bar/174psi | 60 | 157mm/6,18" | 1/4" | 0,8kg/1,76lbs | |
| EDSHT75 | 75 | 74mm/2,91" | 77mm/3,03" | 72mm/2,83" | 12,0bar/174psi | 85 | 162mm/6,38" | 1/4" | 1,5kg/3,31lbs | |
| EDSHT100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 10,0bar/145psi | 150 | 162mm/6,38" | 1/4" | 2,0kg/4,41lbs | |
| EDSHT125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 8,0bar/116psi | 180 | 162mm/6,38" | 1/4" | 2,5kg/5,51lbs | |
| EDSHT150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 6,0bar/87psi | 200 | 165mm/6,5" | 1/4" | 3,0kg/6,61lbs | |
| EDSHT200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 6,0bar/87psi | 200 | 165mm/6,5" | 1/4" | 5,0kg/11,02lbs | |
| EDSHT250 | 250 | 247mm/9,72" | 252mm/9,92" | 245mm/9,65" | 5,0bar/72,5psi | 200 | 168mm/6,61" | 1/4" | 7,0kg/15,43lbs | |
| EDSHT300 | 300 | 297mm/11,69" | 302mm/11,89" | 295mm/11,61" | 4,0bar/58psi | 200 | 168mm/6,61" | 1/4" | 9,0kg/19,84lbs |
16 sizes across 1 pressure class.Go to quote list
