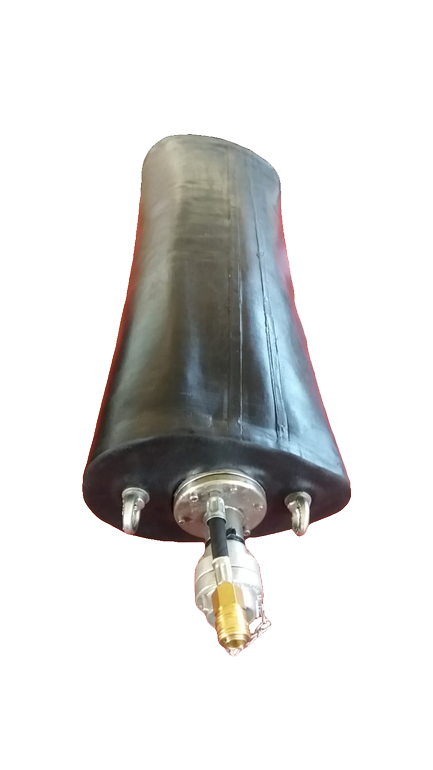

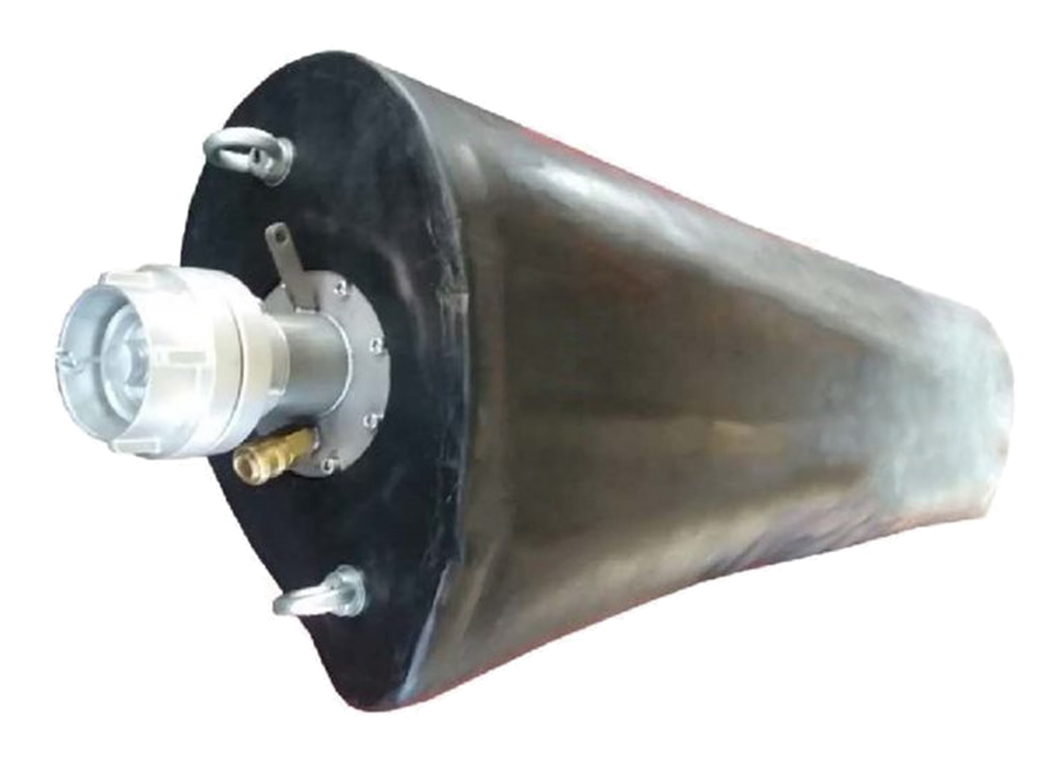

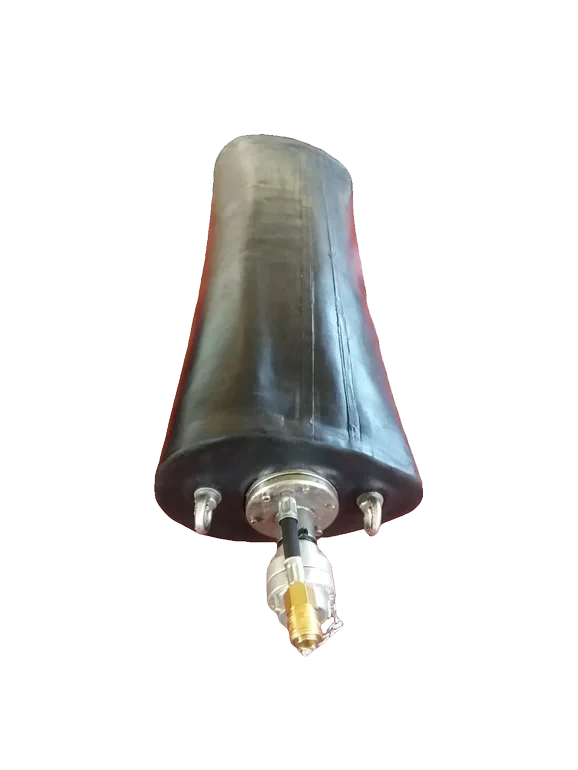

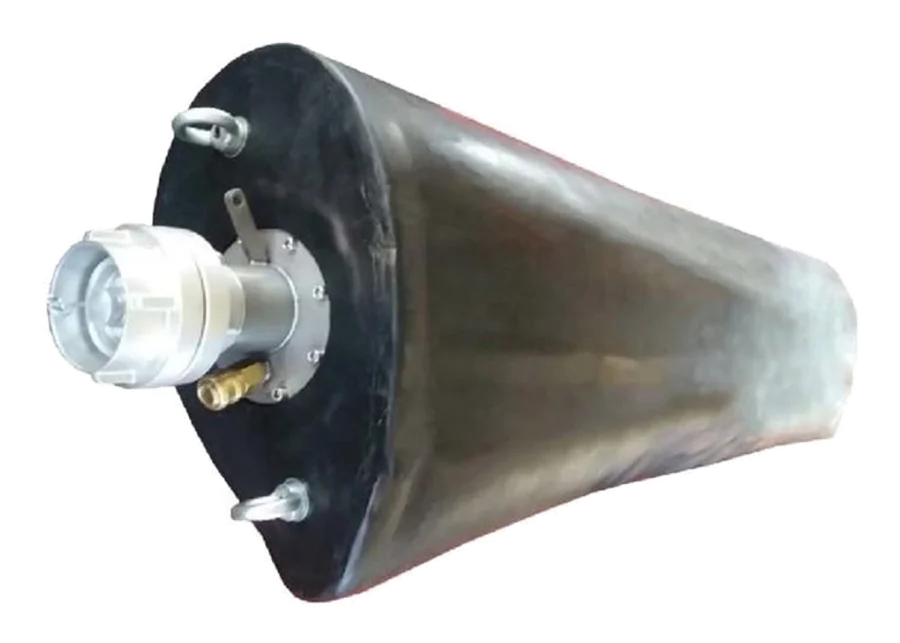

Egg Shape Pipe Test Plugs
Egg Shaped Pipe Test Plugs are specifically designed for testing leaks in egg-shaped or oval-shaped pipes. They are ideal for detecting point leaks and can test smaller pipe diameter profiles than pillow-type test plugs.
Features:
- Suitable for pipe diameters ranging from 250mm to 1800mm
- Standard working pressures of 1.0 bar and back pressure of 0.5 bar
- Easy to use and insert into pipes from manholes
- Ideal for maintenance, repair, and rehabilitation work on egg-shaped or oval-shaped pipes.
| Product Code | Nominal Size(mm) | Product Diameter (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Bypass Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/lbs) | |
|---|---|---|---|---|---|---|---|---|
|
|
EET250375 | 250-375 | 180x265mm/7,09x10,43" | 1,5bar/21,76psi | 0,5bar/7,25psi | 50,8mm/2" | 600mm/23,62" | 12,0kg/26,46lbs |
|
|
EET350525 | 350-525 | 280x415mm/11,02x16,34" | 1,5bar/21,76psi | 0,5bar/7,25psi | 50,8mm/2" | 650mm/25,59" | 22,0kg/48,5lbs |
|
|
EET500750 | 500-750 | 380x565mm/14,96x22,24" | 1,5bar/21,76psi | 0,5bar/7,25psi | 50,8mm/2" | 750mm/29,53" | 30,0kg/66,14lbs |
|
|
EET600900 | 600-900 | 480x715mm/18,90x28,15" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 1300mm/51,18" | 48,0kg/105,82lbs |
|
|
EET7001050 | 700-1050 | 580x865mm/22,83x34,06" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 1300mm/51,18" | 53,0kg/116,84lbs |
|
|
EET8001200 | 800-1200 | 680x850mm/26,77x33,46" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 1600mm/62,99" | 58,0kg/127,87lbs |
|
|
EET9001350 | 900-1350 | 780x1165mm/30,71x45,87" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 2000mm/78,74" | 77,0kg/169,76lbs |
|
|
EET10001500 | 1000-1500 | 880x1315mm/34,65x51,77" | 0,8bar/11,6psi | 0,5bar/7,25psi | 50,8mm/2" | 2500mm/98,43" | 120,0kg/264,55lbs |
|
|
EET12001800 | 1200-1800 | 1080x1618mm/42,52x63,70" | 0,8bar/11,6psi | 0,5bar/7,25psi | 50,8mm/2" | 2800mm/110,24" | 168,0kg/370,38lbs |
