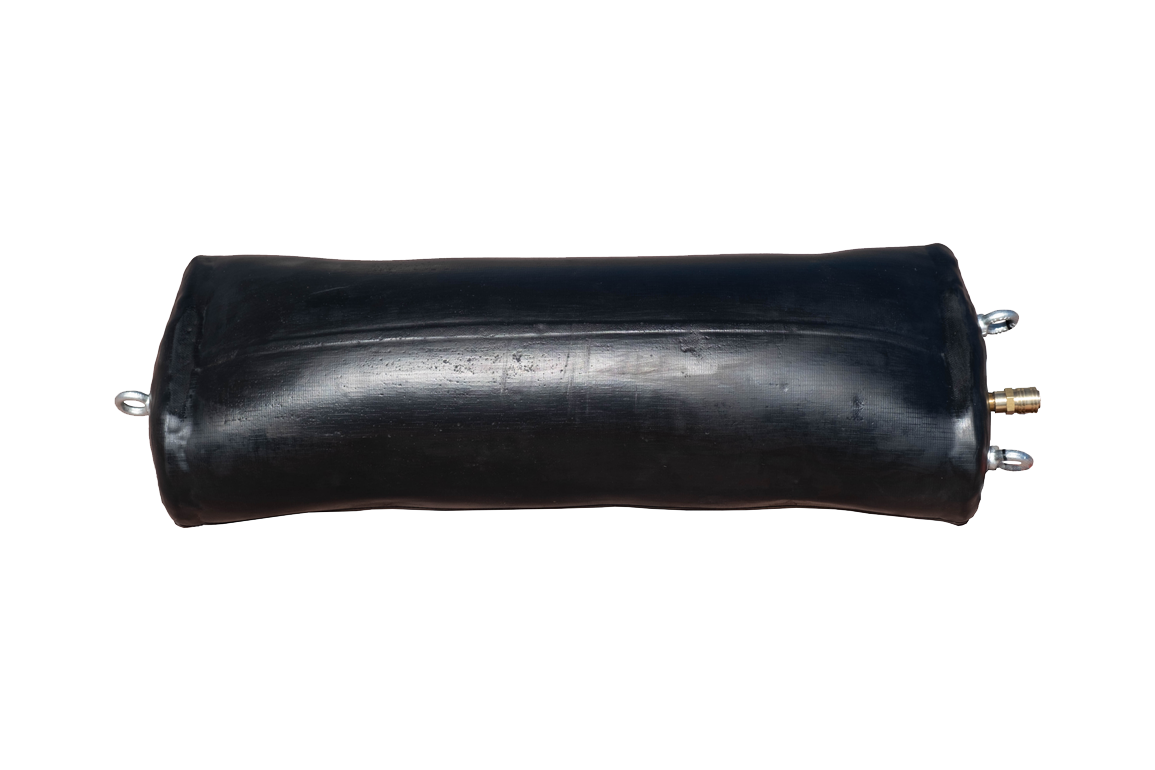

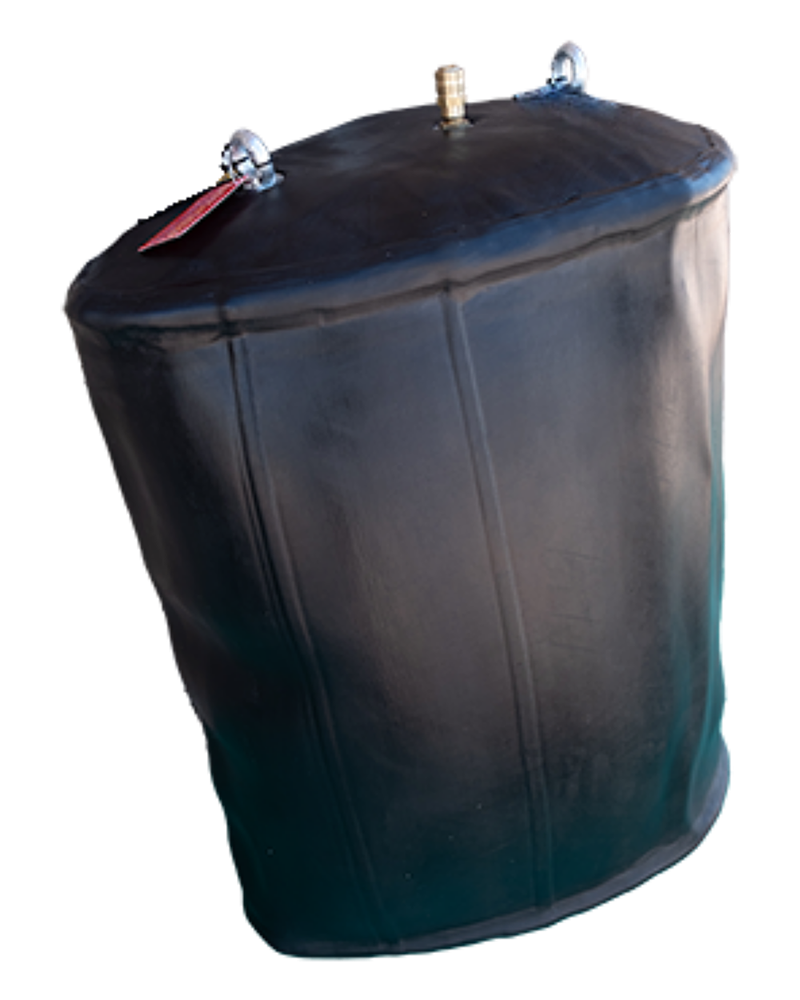

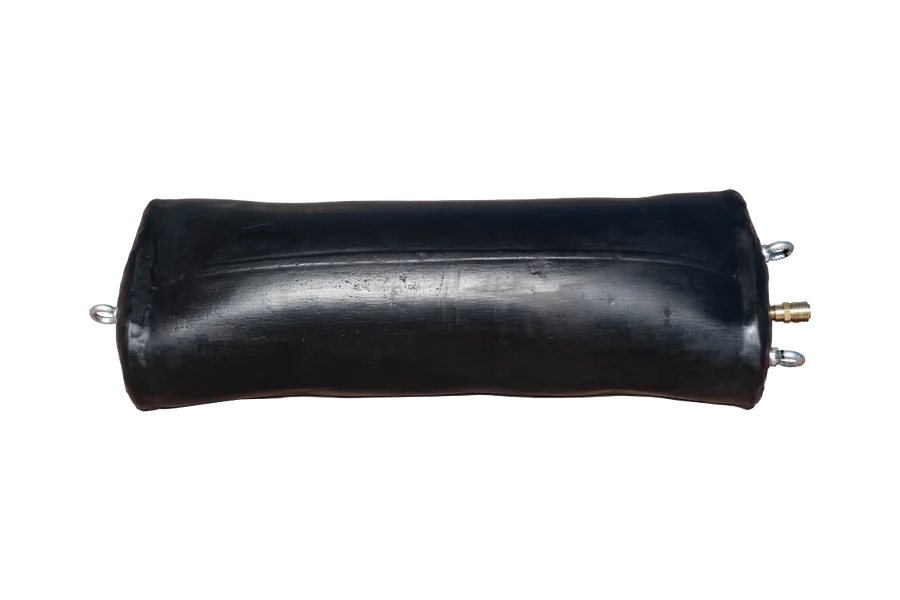

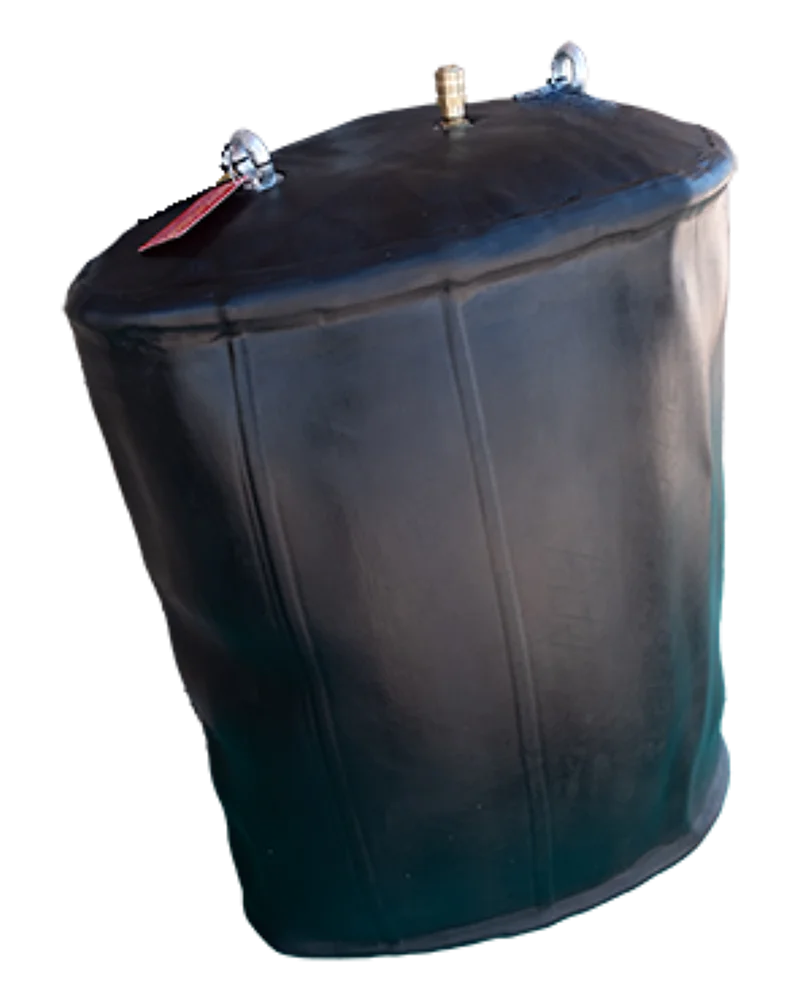

Egg Shaped Pipe Stoppers are specially designed to seal egg shaped, oval, or oval-shaped pipes during maintenance, rehabilitation, and repair work. With their flexible design, they can be easily inserted into pipes from manholes and slid to the place of use.
Features:
| Product Code | Nominal Size(mm) | Product Diameter(mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Total Length of Product (mm/inch) | Product Weight (kg/lbs) | |
|---|---|---|---|---|---|---|---|
|
|
EES250375 | 250-375 | 180x265mm/7,09x10,43" | 1,5bar/1,76psi | 0,5bar/7,25psi | 600mm/23,62" | 9,0kg/19,84lbs |
|
|
EES350525 | 350-525 | 280x415mm/11,02x16,34" | 1,5bar/21,76psi | 0,5bar/7,25psi | 650mm/25,59" | 15,0kg/33,07lbs |
|
|
EES500750 | 500-750 | 380x565mm/14,96x22,24" | 1,5bar/21,76psi | 0,5bar/7,25psi | 750mm/29,53" | 20,0kg/44,09lbs |
|
|
EES600900 | 600-900 | 480x715mm/18,90x28,15" | 1,0bar/14,5psi | 0,5bar/7,25psi | 1300mm/51,18" | 32,0kg/70,55lbs |
|
|
EES7001050 | 700-1050 | 580x865mm/22,83x34,06" | 1,0bar/14,5psi | 0,5bar/7,25psi | 1300mm/51,18" | 38,0kg/83,78lbs |
|
|
EES8001200 | 800-1200 | 680x850mm/26,77x33,46" | 1,0bar/14,5psi | 0,5bar/7,25psi | 1600mm/62,99" | 42,0kg/92,59lbs |
|
|
EES9001350 | 900-1350 | 780x1165mm/30,71x45,87" | 1,0bar/14,5psi | 0,5bar/7,25psi | 2000mm/78,74" | 55,0kg/121,25lbs |
|
|
EES10001500 | 1000-1500 | 880x1315mm/34,65x51,77" | 0,8bar/11,6psi | 0,5bar/7,25psi | 2500mm/98,43" | 85,0kg/187,39lbs |
|
|
EES12001800 | 1200-1800 | 1080x1618mm/42,52x63,70" | 0,8bar/11,6psi | 0,5bar/7,25psi | 2800mm/110,24" | 120,0kg/264,55lbs |
