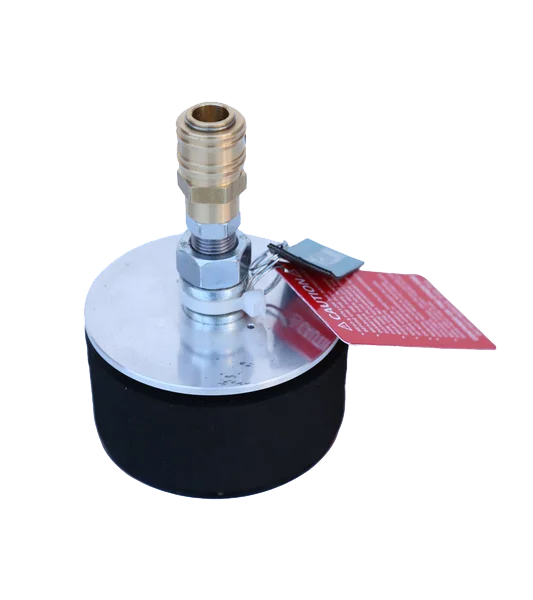

The Aluminum Mechanical Pipe Test Plugs are high-quality testing devices made of Aluminum 7000 series. These plugs are specially designed to provide reliable and safe testing of pipes ranging from 6 mm (1/4") to 300 mm(12") in diameter. With a sliding pressure value of 2,0 bar, these test plugs are perfect for testing pipes under low to medium pressure conditions.
Features:
| Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure(bar/psi) | Tightening Torque (N.m) | Total Length of Product (mm/inch) | Bypass Diameter(inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
EMTA6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 2,0bar/29,0psi | H,T | 54mm/2,13" | 1/4 " | 0,1kg/0,22lbs |
|
|
EMTA10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 2,0bar/29,0psi | H,T | 54mm/2,13" | 1/4 " | 0,1kg/0,22lbs |
|
|
EMTA12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 2,0bar/29,0psi | H,T | 54mm/2,13" | 1/4 " | 0,1kg/0,22lbs |
|
|
EMTA15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 2,0bar/29,0psi | H,T | 64mm/2,52" | 1/4 " | 0,1kg/0,22lbs |
|
|
EMTA20 | 20 | 20mm/0,79" | 20mm/0,79" | 19mm/0,75" | 2,0bar/29,0psi | H,T | 64mm/2,52" | 1/4 " | 0,1kg/0,22lbs |
|
|
EMTA30 | 30 | 29mm/1,14" | 32mm/1,26" | 25mm/0,98" | 2,0bar/29,0psi | 40 | 73mm/2,87" | 1/4 " | 0,1kg/0,22lbs |
|
|
EMTA38 | 38 | 38mm/1,5" | 40mm/1,57" | 32mm/1,26" | 2,0bar/29,0psi | 40 | 75mm/2,95" | 1/4 " | 0,15kg/0,33lbs |
|
|
EMTA50 | 50 | 49mm/1,93" | 51mm/2,01" | 45mm/1,77" | 2,0bar/29,0psi | 50 | 88mm/3,46" | 1/4 " | 0,2kg/0,44lbs |
|
|
EMTA60 | 60 | 58mm/2,28" | 61mm/2,4" | 55mm/2,17" | 2,0bar/29,0psi | 70 | 98mm/3,86" | 1/4 " | 0,35kg/0,77lbs |
|
|
EMTA75 | 75 | 72mm/2,83" | 77mm/3,03" | 70mm/2,76" | 2,0bar/29,0psi | 85 | 103mm/4,06" | 1/4 " | 0,4kg/0,88lbs |
|
|
EMTA100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 1,0bar/14,5psi | 105 | 103mm/4,06" | 1/4 " | 0,6kg/1,32lbs |
|
|
EMTA125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 1,0bar/14,5psi | 120 | 103mm/4,06" | 1/4 " | 0,8kg/1,76lbs |
|
|
EMTA150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 1,0bar/14,5psi | 140 | 106mm/4,17" | 1/4 " | 0,9kg/1,98lbs |
|
|
EMTA200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 0,5bar/7,25psi | 145 | 106mm/4,17" | 1/4 " | 1,0kg/2,2lbs |
|
|
EMTA250 | 250 | 248mm/9,76" | 252mm/9,92" | 245mm/9,65" | 0,5bar/7,25psi | 150 | 109mm/4,29" | 1/4 " | 1,7kg/3,75lbs |
|
|
EMTA300 | 300 | 298mm/11,73" | 302mm/11,89" | 295mm/11,61" | 0,5bar/7,25psi | 160 | 109mm/4,29" | 1/4 " | 2,3kg/5,07lbs |
|
|
EMTA350 | 350 | 348mm/13,7" | 352mm/13,86" | 345mm/13,58" | 0,3bar/4,35psi | 180 | 109mm/4,29" | 1/4 " | 3,0kg/6,61lbs |
|
|
EMTA400 | 400 | 398mm/15,67" | 402mm/15,83" | 395mm/15,55" | 0,3bar/4,35psi | 180 | 109mm/4,29" | 1/4 " | 3,5kg/7,72lbs |
|
|
EMTA450 | 450 | 448mm/17,64" | 452mm/17,8" | 445mm/17,52" | 0,2bar/2,9psi | 180 | 109mm/4,29" | 1/4 " | 4,0kg/8,82lbs |
|
|
EMTA500 | 500 | 498mm/19,61" | 502mm/19,76" | 495mm/19,49" | 0,2bar/2,9psi | 180 | 109mm/4,29" | 1/4 " | 4,5kg/9,92lbs |
|
|
EMTA550 | 550 | 548mm/21,57" | 552mm/21,73" | 545mm/21,46" | 0,2bar/2,9psi | 180 | 109mm/4,29" | 1/4 " | 5,0kg/11,02lbs |
|
|
EMTA600 | 600 | 598mm/23,54" | 602mm/23,7" | 595mm/23,43" | 0,2bar/2,9psi | 180 | 109mm/4,29" | 1/4 " | 6,0kg/13,23lbs |
