Wide Size Lateral Packers

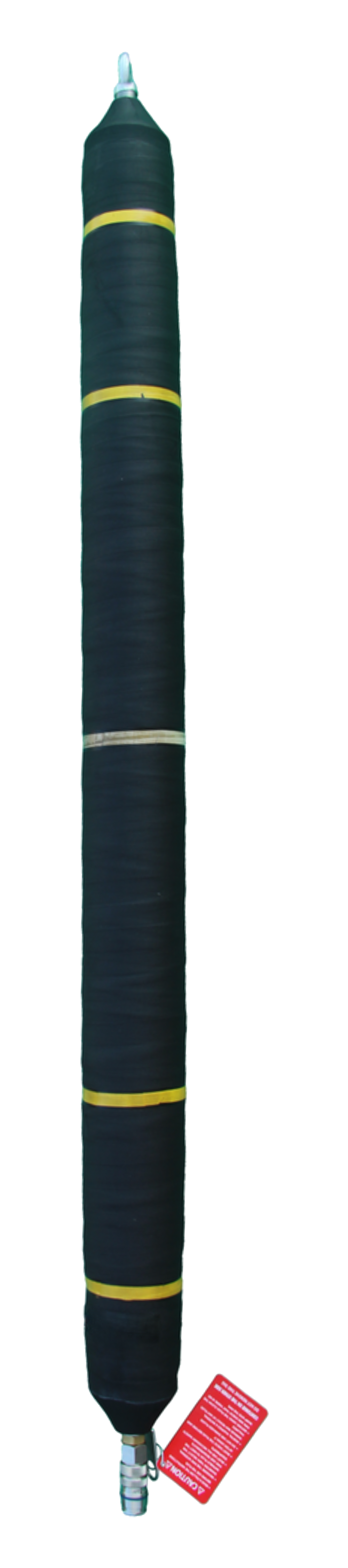

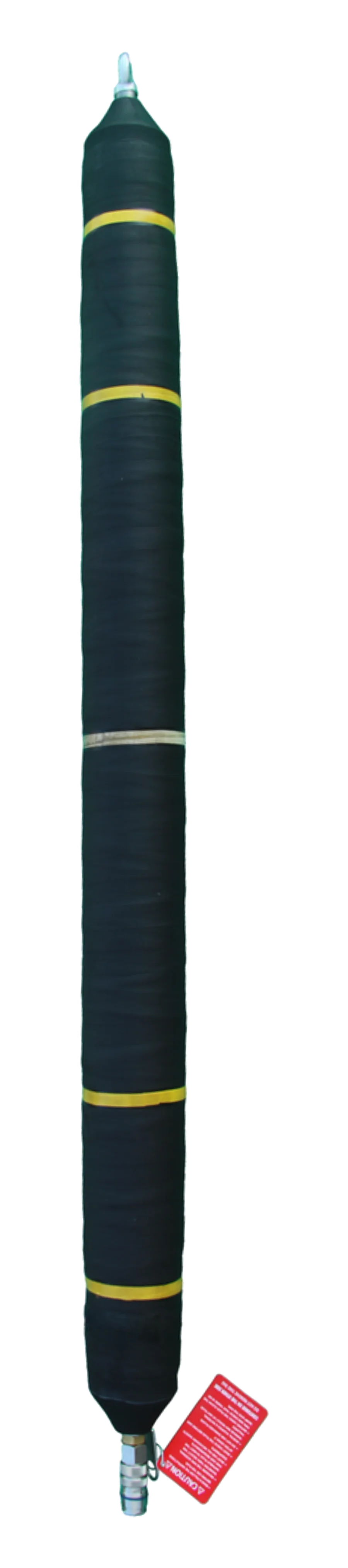

Wide Size Lateral Packers are cylindrical inflatable devices that are ideal for repairing sectional cracks and leakages in pipes. They have rubber end covers on both sides for ease of handling and slipping, and are made of a special rubber that provides strength, resistance, and flexibility. Unlike other lateral packers, these packers are designed to be used in a range of pipe diameters, allowing for one product to be used for repairs on multiple pipes of different diameters.

Features:

  • Cylindrical inflatable devices used for repairing sectional cracks and leakages in pipes
  • Designed to be used in a range of pipe diameters, ranging from 35mm to 1000mm
  • Rubber end covers on both sides for ease of handling and slipping
  • Made of a special rubber that provides strength, resistance, and flexibility
WIDE SIZE LATERAL PACKERS WITH RUBBER END (1,5 BAR/21,75 PSI - 4,0 BAR/58,0 PSI)
Product Code Nominal Size(mm) Product Diameter(mm/inch) Max. Working Pressure(bar/psi) Max. Contact (Repair) Lenght (mm/inch) Total Length of Product(mm/inch) Product Weight(kg/Ibs)
EWP3570 35-70 30mm/1,18" 4,0bar/58,0psi R.L R.L+150 0,5kg/1,1lbs
EWP40100 40-100 35mm/1,37" 4,0bar/58,0psi R.L R.L+220 0,6kg/1,32lbs
EWP50150 50-150 45mm/1,77" 4,0bar/58,0psi R.L R.L+350 0,7kg/1,54lbs
EWP70200 70-200 58mm/2,28" 3,5bar/50,75psi R.L R.L+500 0,7kg/1,54lbs
EWP100200 100-200 61mm/2,4" 3,0bar/43,5psi R.L R.L+500 0,8kg/1,76lbs
EWP100250 100-250 75mm/2,95" 3,0bar/43,5psi R.L R.L+600 1,0kg/2,2lbs
EWP150300 150-300 120mm/4,72" 2,0bar/29,0psi R.L R.L+700 1,2kg/2,64lbs
EWP200500 200-500 185mm/7,28" 2,0bar/29,0psi R.L R.L+1100 2,0kg/4,4lbs
EWP300800 300-800 272mm/10,7" 1,5bar/21,75psi R.L R.L+1800 4,0kg/8,8lbs
EWP4001000 400-1000 345mm/13,58" 1,5bar/21,75psi R.L R.L+2200 4,8kg/10,57lbs
