Short Packers with Metal Core

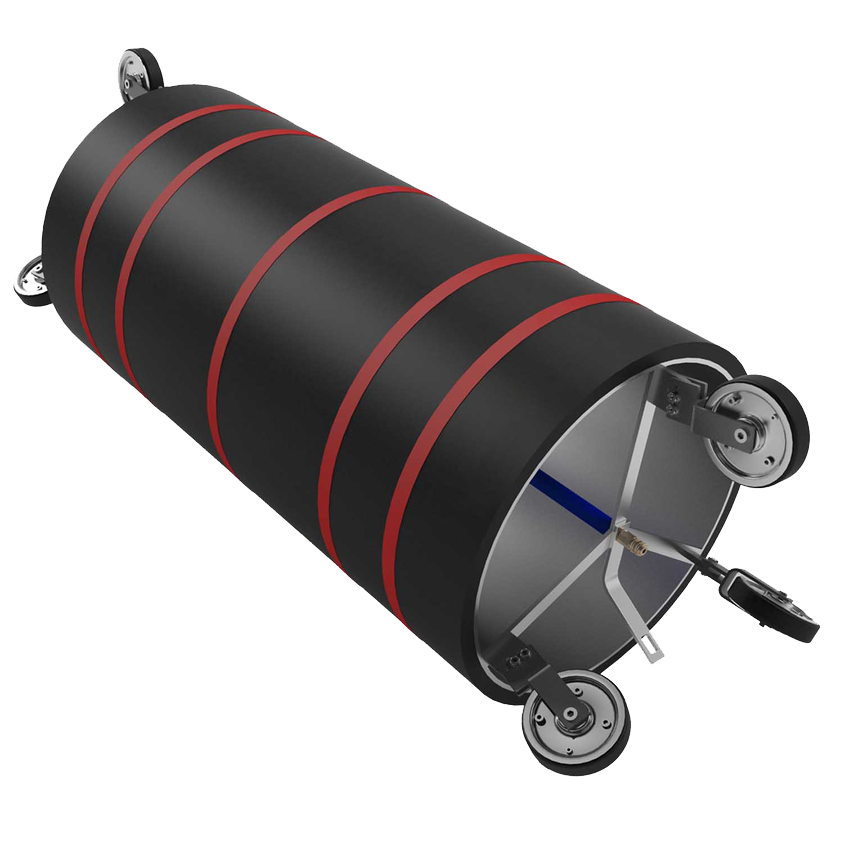

Short Packers with Metal Core are designed to perform partial repair work on pipelines with ease. Equipped with a replaceable, two-layer rubberized fabric sleeve mounted on a metal central part, these packers have three wheels on each side at an angle of 120° to prevent tipping.
Features:
- Designed for partial repair work on pipelines
- Two-layer rubberized fabric sleeve mounted on a metal central part
- Three wheels on each side at an angle of 120° to prevent tipping
- Available in various sizes for pipeline diameters ranging from 150mm to 600mm
- Active repair length of 450mm to 600mm
- Suitable for repairing pipeline joints and damaged spots
Request a free quote
Tell us the sizes and quantities you need for Short Packers with Metal Core and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal Size(mm) | Cylinder Length(mm/inch) | Max. Contact (Repair) Lenght (mm/inch) | Max. Working Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| ESCP150200 | 150-200 | 780mm/30,70" | 580mm/22,83" | 2,0bar/29,0psi | 110mm/4,33" | 1020mm/40,15" | 65mm/2,55" | 6,5kg/14,33Ibs | |
| ESCP250300 | 250-300 | 780mm/30,70" | 600mm/23,62" | 2,0bar/29,0psi | 190mm/7,48" | 1080mm/42,51" | 150mm/5,90" | 13,0kg/28,66Ibs | |
| ESCP300400 | 300-400 | 800mm/31,49" | 525mm/20,66" | 1,5bar/21,75psi | 240mm/9,44" | 1100mm/43,30" | 200mm/7,87" | 16,0kg/35,27Ibs | |
| ESCP350450 | 350-450 | 800mm/31,49" | 550mm/21,65" | 1,5bar/21,75psi | 285mm/11,22" | 1100mm/43,30" | 245mm/9,64" | 19,0kg/41,88Ibs | |
| ESCP500600 | 500-600 | 900mm/35,43" | 450mm/17,71" | 1,5bar/21,75psi | 445mm/17,51" | 1200mm/47,24" | 400mm/15,74" | 30,0kg/66,13Ibs |
5 sizes across 1 pressure class.Go to quote list
