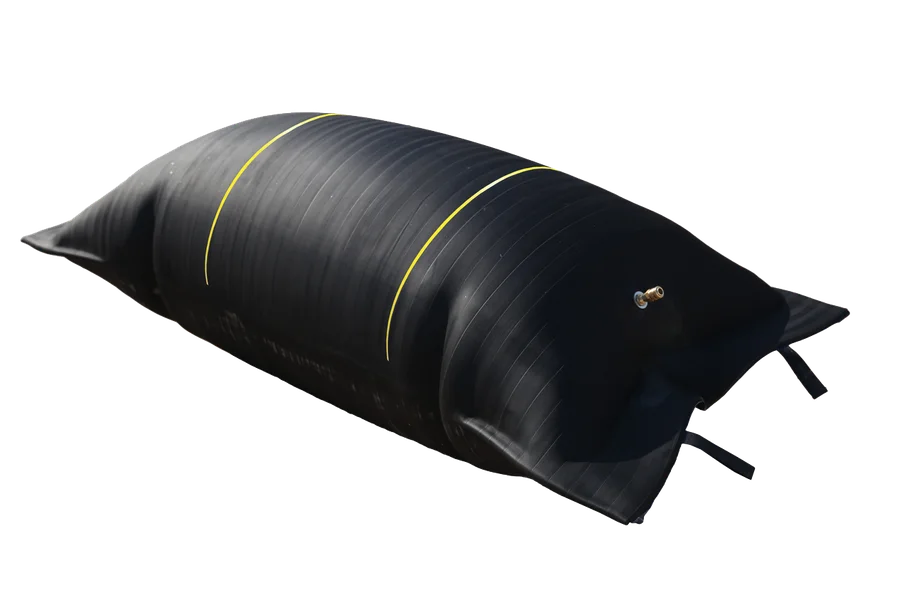

Pillow Type Packers
Pillow Type Packers are inflatable, flexible packers used for repairing oval, irregularly shaped, and circular pipes without excavation. They are designed to be easily transported and maneuvered inside pipes.
Features:
- Flexible soft rubber structure inflates to fit the shape of damaged pipes
- Can be used for oval, irregularly shaped, and circular pipes
- Easily maneuvered at the entrance and inside the pipe
- Can be folded and transported more easily than standard packers
- Available in various sizes for pipe diameters ranging from 600mm to 2000mm
- Suitable for repair lengths ranging from 1000mm to 2000mm
| Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Product Wide(mm/inch) | Product Length (mm/inch) | Max. Working Pressure (bar/psi) | Max. Contact (Repair)Length (mm/inch) | Product Weigth(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|
|
|
EPTP6001000/2500 | 600-1000 | 600mm/23,5" | 910mm/36,0" | 2500mm/98,5" | 1,0bar/14,5psi | 1000mm/39,0" | 23,0kg/50,0lbs |
|
|
EPTP6001000/3500 | 600-1000 | 600mm/23,5" | 910mm/36,0" | 3500mm/137,0" | 1,0bar/14,5psi | 2000mm/78,5" | 32,0kg/70,0lbs |
|
|
EPTP8001200/2500 | 800-1200 | 800mm/31,5" | 1200mm/47,0" | 2500mm/98,5" | 1,0bar/14,5psi | 1000mm/39,0" | 38,0kg/83,0lbs |
|
|
EPTP8001200/3500 | 800-1200 | 800mm/31,5" | 1200mm/47,0" | 3500mm/137,0" | 1,0bar/14,5psi | 2000mm/78,5" | 42,0kg/92,0lbs |
|
|
EPTP10001400/2500 | 1000-1400 | 1000mm/39,0" | 1550mm/61,0" | 2500mm/98,5" | 0,8bar/11,5psi | 1000mm/39,0" | 45,0kg/99,0lbs |
|
|
EPTP10001400/3500 | 1000-1400 | 1200mm/39,0" | 1550mm/61,0" | 3500mm/137,0" | 0,8bar/11,5psi | 2000mm/78,5" | 55,0kg/121,0lbs |
|
|
EPTP12001600/2500 | 1200-1600 | 1200mm/47,0" | 1800mm/71,0" | 2500mm/98,5" | 0,6bar/8,5psi | 1000mm/39,0" | 65,0kg/143,0lbs |
|
|
EPTP12001600/3500 | 1200-1600 | 1200mm/47,0" | 1800mm/71,0" | 3500mm/137,0" | 0,6bar/8,5psi | 2000mm/78,5" | 75,0kg/165,0lbs |
|
|
EPTP15002000/2800 | 1500-2000 | 1500mm/59,0" | 2300mm/90,5" | 2800mm/110,0" | 0,5bar/7,0psi | 1000mm/39,0" | 95,0kg/209,0lbs |
|
|
EPTP15002000/3700 | 1500-2000 | 1500mm/59,0" | 2300mm/90,5" | 3700mm/145,5" | 0,5bar/7,0psi | 2000mm/78,5" | 110,0kg/242,0lbs |
