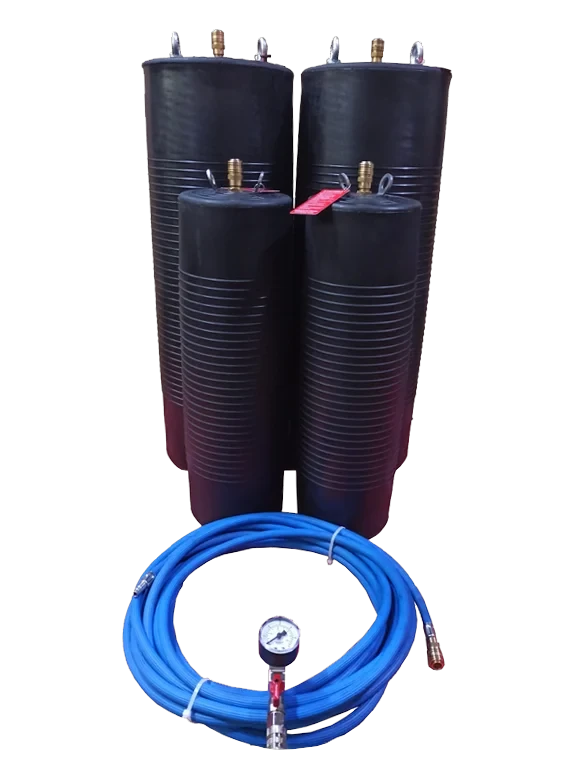

Oil and Gas Pipe Stoppers

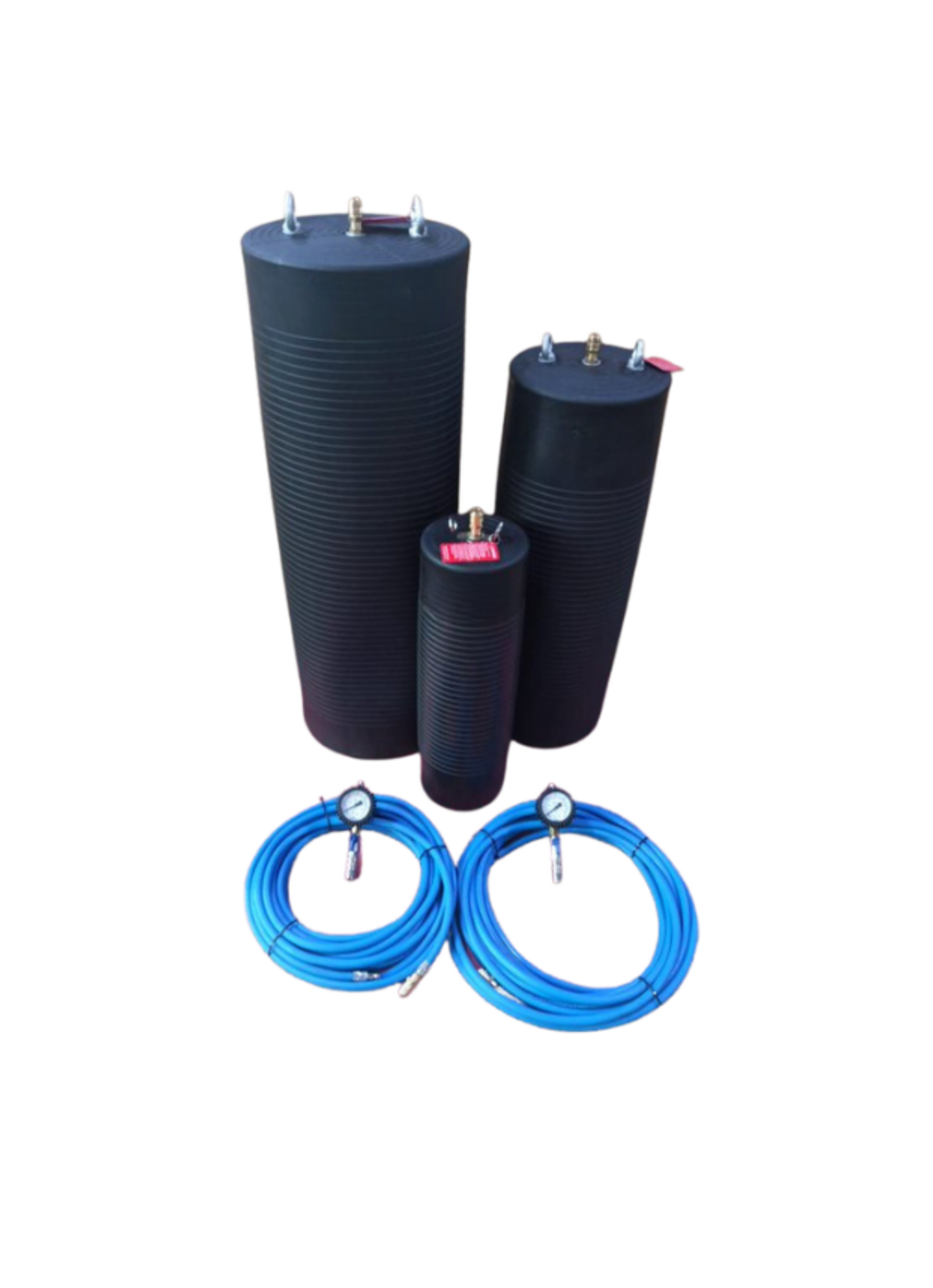

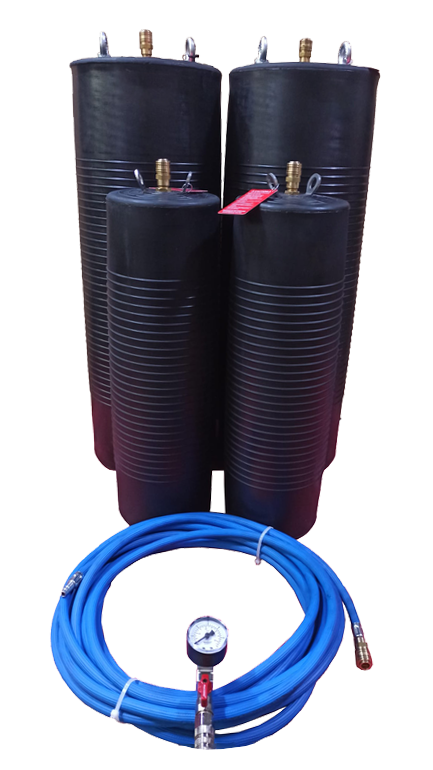

Inflatable Oil and Gas Stoppers are the ideal solution for the petrochemical industry. Developed from standard pipe stoppers, their surface layer is constructed of an oil and gas-resistant composition that is highly resistant to oil, gas, and chemicals. These stoppers are used to reliably seal or close pipelines carrying gas, oil, and chemical liquids during pipeline leak testing, maintenance, and repair operations. With a wide usage area covering pipe diameters from 50mm to 4200mm, they are versatile and can be used for various applications. Standard working pressures of 1.5 bar and 2.5 bar ensure that they can handle different levels of pressure with ease.
Features:
- Developed from standard pipe stoppers with oil and gas-resistant composition
- Used to seal or close pipelines carrying gas, oil, and chemical liquids
- Suitable for pipe diameters ranging from 50mm to 4200mm
- Operating pressures of 1.5 bar and 2.5 bar
Request a free quote
Tell us the sizes and quantities you need for Oil and Gas Pipe Stoppers and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested(mm/inch) | Max. Pipe Inner Dia. to be tested(mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| EOGS2040/2,5 | 20-40 | 20mm/0,78" | 40mm/1,57" | 2,5bar/36,25psi | 1,0bar/14,50psi | 18mm/0,70" | 100mm/3,93" | 0,12kg/0,26lbs | |
| EOGS2550/2,5 | 25-50 | 25mm/0,98" | 50mm/1,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 22mm/0,86" | 110mm/4,33" | 0,5kg/1,1lbs | |
| EOGS3570/2,5 | 35-70 | 35mm/1,37" | 70mm/2,75" | 2,5bar/36,25psi | 1,0bar/14,50psi | 33mm/1,29" | 300mm/11,81" | 0,2kg/0,44Ibs | |
| EOGS50100/2,5 | 50-100 | 50mm/1,96" | 100mm/3,93" | 2,5bar/36,25psi | 1,0bar/14,50psi | 45mm/1,77" | 330mm/12,99" | 0,4kg/0,88Ibs | |
| EOGS70150/2,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 2,5bar/36,25psi | 1,0bar/14,50psi | 64mm/2,51" | 370mm/14,56" | 0,6kg/1,32Ibs | |
| EOGS100200/2,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 2,5bar/36,25psi | 1,0bar/14,50psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| EOGS150300/2,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 2,5bar/36,25psi | 1,0bar/14,50psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs | |
| EOGS200400/2,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 2,5bar/36,25psi | 1,0bar/14,50psi | 185mm/7,28" | 650mm/25,59" | 3,6kg/7,93Ibs | |
| EOGS200500/2,5 | 200-500 | 200mm/7,87" | 500mm/19,68" | 2,5bar/36,25psi | 1,0bar/14,50psi | 185mm/7,28" | 800mm/31,49" | 3,9kg/8,58lbs | |
| EOGS300600/2,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 2,5bar/36,25psi | 1,0bar/14,50psi | 285mm/11,22" | 850mm/33,46" | 7,0kg/15,43Ibs | |
| EOGS375750/2,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 2,5bar/36,25psi | 1,0bar/14,50psi | 360mm/14,17" | 1000mm/39,37" | 9,7kg/21,38Ibs | |
| EOGS500800/2,5 | 500-800 | 500mm/19,68" | 800mm/31,49" | 2,5bar/36,25psi | 1,0bar/14,50psi | 485mm/19,09" | 1000mm/39,37" | 21,0kg/46,29Ibs | |
| EOGS5001000/2,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 2,5bar/36,25psi | 1,0bar/14,50psi | 485mm/19,09" | 1150mm/45,27" | 22,0kg/48,50Ibs | |
| EOGS6001200/2,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 2,5bar/36,25psi | 1,0bar/14,50psi | 585mm/23,03" | 1300mm/51,18" | 26,0kg/57,32Ibs | |
| EOGS5001400/2,5 | 500-1400 | 500mm/19,68" | 1400mm/55,11" | 2,5bar/36,25psi | 1,0bar/14,50psi | 485mm/19,09" | 1900mm/74,80" | 35,5kg/78,26Ibs | |
| EOGS8001600/2,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 2,5bar/36,25psi | 1,0bar/14,50psi | 780mm/30,70" | 1800mm/70,86" | 35,0kg/77,16Ibs | |
| EOGS12002400/2,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 2,5bar/36,25psi | 1,0bar/14,50psi | 1180mm/46,45” | 3000mm/118,11” | 240,0kg/528,96lbs | |
| EOGS12002800/2,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23" | 2,5bar/36,25psi | 1,0bar/14,50psi | 1180mm/46,45” | 4000mm/157,48" | 280,0kg/617,12lbs | |
| EOGS18003600/2,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 2,5bar/36,25psi | 1,0bar/14,50psi | 1780mm/70,08" | 4000mm/157,48" | 420,0kg/925,68lbs | |
| EOGS18004200/2,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 2,5bar/36,25psi | 1,0bar/14,50psi | 1780mm/70,08" | 6000mm/236,22" | 530,0kg/1168,12lbs |
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure(bar/psi) | Back Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| EOGS50100/1,5 | 50-100 | 45mm/1,77" | 100mm/3,93" | 1,5bar/21,75psi | 0,5bar/7,25psi | 45mm/1,77" | 330mm/12,99" | 0,4kg/0,88Ibs | |
| EOGS70150/1,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 1,5bar/21,75psi | 0,5bar/7,25psi | 64mm/2,51" | 370mm/14,56" | 0,6kg/1,32Ibs | |
| EOGS100200/1,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 1,5bar/21,75psi | 0,5bar/7,25psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| EOGS150300/1,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 1,5bar/21,75psi | 0,5bar/7,25psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs | |
| EOGS200400/1,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 1,5bar/21,75psi | 0,5bar/7,25psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs | |
| EOGS200500/1,5 | 200-500 | 200mm/7,87" | 500mm/19,68" | 1,5bar/21,75psi | 0,5bar/7,25psi | 185mm/7,28" | 800mm/31,49" | 3,7kg/8,15Ibs | |
| EOGS300600/1,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 0,5bar/7,25psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs | |
| EOGS375750/1,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 1,5bar/21,75psi | 0,5bar/7,25psi | 360mm/14,17" | 1000mm/39,37" | 9,4kg/20,72Ibs | |
| EOGS5001000/1,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 1,5bar/21,75psi | 0,5bar/7,25psi | 485mm/19,09" | 1150mm/45,27" | 21,3kg/46,95Ibs | |
| EOGS5001200/1,5 | 500-1200 | 500mm/19,68" | 1200mm/47,24" | 1,5bar/21,75psi | 0,5bar/7,25psi | 485mm/19,09" | 1400mm/55,11" | 28,0kg/61,72Ibs | |
| EOGS6001200/1,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 1,5bar/21,75psi | 0,5bar/7,25psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs | |
| EOGS5001400/1,5 | 500-1400 | 500mm/19,68" | 1400mm/55,11" | 1,5bar/21,75psi | 0,5bar/7,25psi | 485mm/19,09" | 1900mm/74,80" | 35,5kg/78,26Ibs | |
| EOGS6001600/1,5 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 1,5bar/21,75psi | 0,5bar/7,25psi | 575mm/22,63" | 1900mm/74,80" | 35,5kg/78,26Ibs | |
| EOGS8001600/1,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 1,5bar/21,75psi | 0,5bar/7,25psi | 780mm/30,70" | 1600mm/62,99" | 46,0kg/101,41Ibs | |
| EOGS8002200/1,5 | 800-2200 | 800mm/31,49" | 2200mm/86,61" | 1,5bar/21,75psi | 0,5bar/7,25psi | 780mm/30,70" | 3200mm/125,98" | 75,0kg/165,34Ibs | |
| EOGS12002400/1,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 1,5bar/21,75psi | 0,5bar/7,25psi | 1180mm/46,45” | 3000mm/118,11” | 170,0kg/374,68lbs | |
| EOGS12002800/1,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23" | 1,5bar/21,75psi | 0,5bar/7,25psi | 1180mm/46,45” | 4000mm/157,48" | 205,0kg/451,82lbs | |
| EOGS18003600/1,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 1,5bar/21,75psi | 0,5bar/7,25psi | 1780mm/70,08" | 4000mm/157,48" | 400,0kg/881,83lbs | |
| EOGS18004200/1,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 1,5bar/21,75psi | 0,5bar/7,25psi | 1780mm/70,08" | 6000mm/236,22" | 500,0kg/1102,0lbs |
39 sizes across 2 pressure classes.Go to quote list
