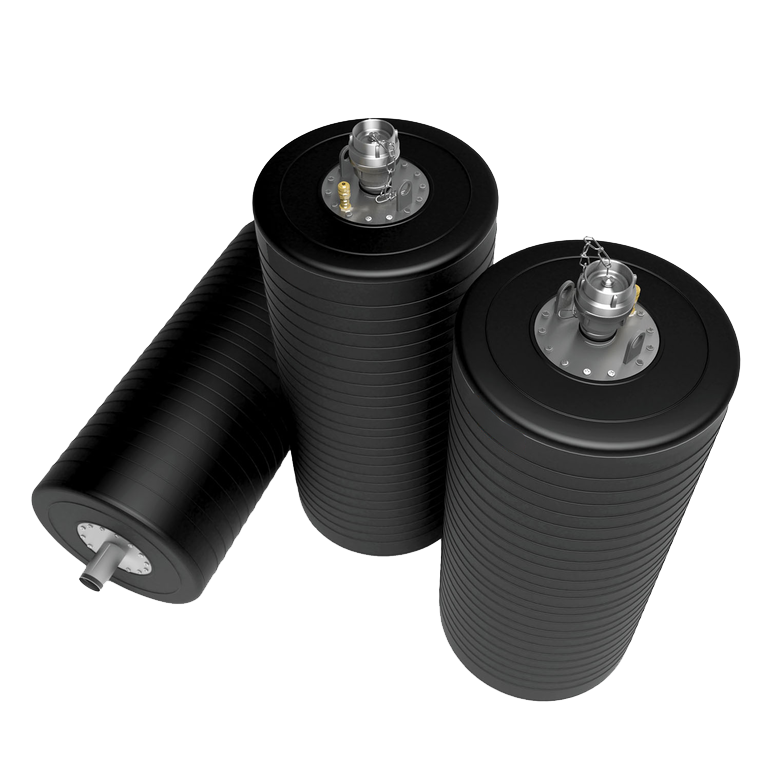

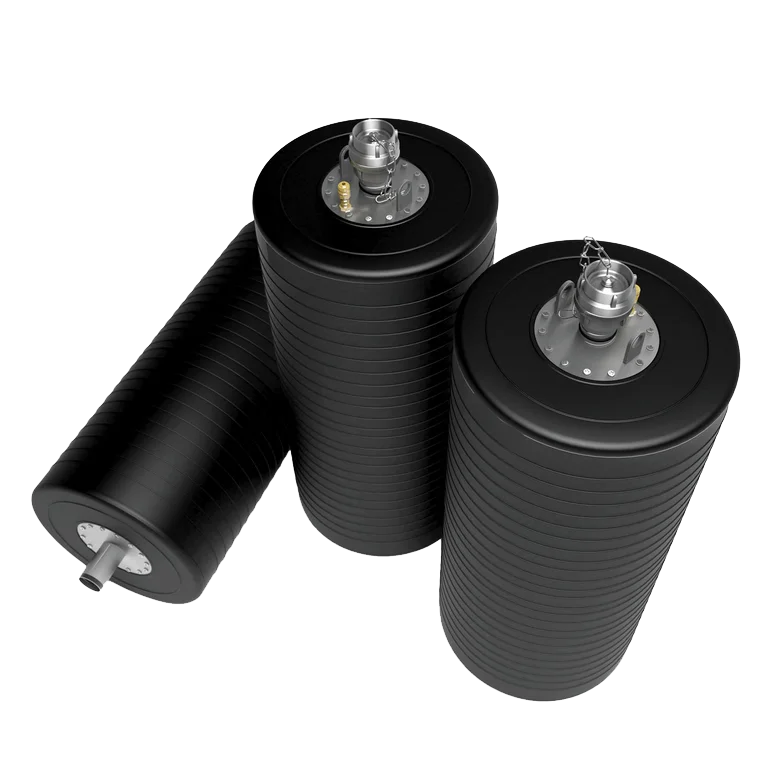

Oil and Gas High Pressure Pipe Test Plugs

These plugs are mainly used in the petrochemical industry, oil, gas, fuel, and all other chemical industries to seal and block pipelines, where the back pressure exceeds the range of standard pipe test plugs. They are adapted from conventional inflatable plugs, but the material they use is highly resistant to gasoline, oil, gases, and other chemicals. They are commonly used to redirect flow via bypass on pipelines for maintenance and technical assistance.

Features:

  • Made of highly resistant material to gasoline, oil, gases, and other chemicals
  • Available for pipe diameters ranging from 50mm to 1000mm
  • Suitable for use in the petrochemical industry, oil, gas, fuel, and all other chemical industries
  • Has working pressures of 6.0 bar and 12.0 bar
OIL AND GAS HIGH PRESSURE PIPE TEST PLUGS (12,0BAR / 174,04PSI)
Product Code Nominal Size(mm) Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Max. Working Pressure (bar/psi) Back Pressure(bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Bypass Diameter(mm/inch) Product Weight(kg/Ibs)
EOGHT50A 50 50mm/1,97 50mm/1,97" 12,0bar/174,04psi 6,0bar/87,02psi 45mm/1,77" 330mm/12,99" 6,35mm/1/4" 1,0kg/2,20Ibs
EOGHT50B 50 50mm/1,97 50mm/1,97" 12,0bar/174,04psi 6,0bar/87,02psi 45mm/1,77" 330mm/12,99" 2x3,17mm/2x1/8" 1,2kg/2,64Ibs
EOGHT70A 70 70mm/2,76" 70mm/2,76" 12,0bar/174,04psi 6,0bar/87,02psi 64mm/2,52" 400mm/15,75" 12,70mm/1/2" 1,2kg/2,64Ibs
EOGHT70B 70 70mm/2,76" 70mm/2,76" 12,0bar/174,04psi 6,0bar/87,02psi 64mm/2,52" 400mm/15,75" 2x6,35mm/2x1/4" 1,3kg/2,87Ibs
EOGHT100A 100 100mm/3,93" 100mm/3,93" 12,0bar/174,04psi 6,0bar/87,02psi 88mm/3,46" 580mm/22,83" 25,40mm/1" 1,8kg/3,97lbs
EOGHT100B 100 100mm/3,93" 100mm/3,93" 12,0bar/174,04psi 6,0bar/87,02psi 88mm/3,46" 580mm/22,83" 2x12,7mm/2x1/2" 1,9kg/4,19lbs
EOGHT150A 150 150mm/5,90" 150mm/5,90" 12,0bar/174,04psi 6,0bar/87,02psi 138mm/5,43" 550mm/21,65" 50,80mm/2" 4,0kg/8,82lbs
EOGHT150B 150 150mm/5,90" 150mm/5,90" 12,0bar/174,04psi 6,0bar/87,02psi 138mm/5,43" 550mm/21,65" 2x25,40mm/2x1" 4,2kg/9,26lbs
EOGHT200A 200 200mm/7,87" 200mm/7,87" 12,0bar/174,04psi 6,0bar/87,02psi 185mm/7,28" 650mm/25,59" 50,80mm/2" 7,2kg/15,87lbs
EOGHT200B 200 200mm/7,87" 200mm/7,87" 12,0bar/174,04psi 6,0bar/87,02psi 185mm/7,28" 650mm/25,59" 2x25,40mm/2x1" 7,4kg/16,31lbs
EOGHT300A 300 300mm/11,81" 300mm/11,81" 12,0bar/174,04psi 6,0bar/87,02psi 285mm/11,22" 850mm/33,46" 50,80mm/2" 11,0kg/24,25lbs
EOGHT300B 300 300mm/11,81" 300mm/11,81" 12,0bar/174,04psi 6,0bar/87,02psi 285mm/11,22" 850mm/33,46" 50,8mm+25,4mm/2"+1" 11,7kg/25,79lbs
EOGHT400A 400 400mm/15,74" 400mm/15,74" 12,0bar/174,04psi 6,0bar/87,02psi 355mm/13,98" 1000mm/39,37" 50,80mm/2" 18,0kg/39,68lbs
EOGHT400B 400 400mm/15,74" 400mm/15,74" 12,0bar/174,04psi 6,0bar/87,02psi 355mm/13,98" 1000mm/39,37" 2x50,80mm/2x2" 20,0kg/44,09lbs
EOGHT500A 500 500mm/19,68" 500mm/19,68" 12,0bar/174,04psi 6,0bar/87,02psi 485mm/19,09" 1050mm/41,34" 50,80mm/2" 27,0kg/59,52lbs
EOGHT500B 500 500mm/19,68" 500mm/19,68" 12,0bar/174,04psi 6,0bar/87,02psi 485mm/19,09" 1050mm/41,34" 2x50,80mm/2x2" 28,8kg/63,49lbs
EOGHT600A 600 600mm/23,62" 600mm/23,62" 12,0bar/174,04psi 6,0bar/87,02psi 585mm/23,03" 1300mm/51,18" 50,80mm/2" 35,0kg/77,16lbs
EOGHT600B 600 600mm/23,62" 600mm/23,62" 12,0bar/174,04psi 6,0bar/87,02psi 585mm/23,03" 1300mm/51,18" 2x50,80mm/2x2" 36,0kg/79,37lbs
EOGHT800A 800 800mm/31,49" 800mm/31,49" 12,0bar/174,04psi 6,0bar/87,02psi 785mm/30,91" 1200mm/47,24" 101,60mm/4" 45,0kg/99,21lbs
EOGHT800B 800 800mm/31,49" 800mm/31,49" 12,0bar/174,04psi 6,0bar/87,02psi 785mm/30,91" 1200mm/47,24" 2x50,80mm/2x2" 50,0kg/110,23lbs
EOGHT1200A 1200 1200mm/47,24" 1200mm/47,24" 12,0bar/174,04psi 6,0bar/87,02psi 1180mm/46,45" 2500mm/98,42" 101,60mm/4" 220,0kg/484,88lbs
EOGHT1200B 1200 1200mm/47,24" 1200mm/47,24" 12,0bar/174,04psi 6,0bar/87,02psi 1180mm/46,45" 2500mm/98,42" 2x50,80mm/2x2" 220,0kg/484,88lbs
EOGHT1800A 1800 1800mm/70,86" 1800mm/70,86" 12,0bar/174,04psi 6,0bar/87,02psi 1780mm/70,07" 4000mm/157,48" 101,60mm/4" 320,0kg/705,28lbs
EOGHT1800B 1800 1800mm/70,86" 1800mm/70,86" 12,0bar/174,04psi 6,0bar/87,02psi 1780mm/70,07" 4000mm/157,48" 2x50,80mm/2x2" 320,0kg/705,28lbs
OIL AND GAS HIGH PRESSURE PIPE TEST PLUGS (6,0BAR / 87,02PSI)
Product Code Nominal Size(mm) Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Max. Working Pressure (bar/psi) Back Pressure (bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Bypass Diameter(mm/inch) Product Weight(kg/Ibs)
EOGHT5070A 50-70 50mm/1,97" 70mm/2,76" 6,0bar/87,02psi 3,0bar/43,51psi 45mm/1,77" 330mm/12,99" 6,35mm/1/4" 1,0kg/2,20Ibs
EOGHT5070B 50-70 50mm/1,97" 70mm/2,76" 6,0bar/87,02psi 3,0bar/43,51psi 45mm/1,77" 330mm/12,99" 2x3,17mm/2x1/8" 1,2kg/2,64Ibs
EOGHT70100A 70-100 70mm/2,76" 100mm/3,93" 6,0bar/87,02psi 3,0bar/43,51psi 64mm/2,52" 400mm/15,75" 12,70mm/1/2" 1,2kg/2,64Ibs
EOGHT70100B 70-100 70mm/2,76" 100mm/3,93" 6,0bar/87,02psi 3,0bar/43,51psi 64mm/2,52" 400mm/15,75" 2x6,35mm/2x1/4" 1,3kg/2,87Ibs
EOGHT100150A 100-150 100mm/3,93" 150mm/5,90" 6,0bar/87,02psi 3,0bar/43,51psi 88mm/3,46" 580mm/22,83" 25,40mm/1" 1,8kg/3,97lbs
EOGHT100150B 100-150 100mm/3,93" 150mm/5,90" 6,0bar/87,02psi 3,0bar/43,51psi 88mm/3,46" 580mm/22,83" 2x12,7mm/2x1/2" 1,9kg/4,19lbs
EOGHT150200A 150-200 150mm/5,90" 200mm/7,87" 6,0bar/87,02psi 3,0bar/43,51psi 138mm/5,43" 550mm/21,65" 50,80mm/2" 4,0kg/8,82lbs
EOGHT150200B 150-200 150mm/5,90" 200mm/7,87" 6,0bar/87,02psi 3,0bar/43,51psi 138mm/5,43" 550mm/21,65" 2x25,40mm/2x1" 4,2kg/9,26lbs
EOGHT200300A 200-300 200mm/7,87" 300mm/11,81" 6,0bar/87,02psi 3,0bar/43,51psi 185mm/7,28" 650mm/25,59" 50,80mm/2" 7,2kg/15,87lbs
EOGHT200300B 200-300 200mm/7,87" 300mm/11,81" 6,0bar/87,02psi 3,0bar/43,51psi 185mm/7,28" 650mm/25,59" 2x25,40mm/2x1" 7,4kg/16,31lbs
EOGHT300400A 300-400 300mm/11,81" 400mm/15,74" 6,0bar/87,02psi 3,0bar/43,51psi 285mm/11,22" 850mm/33,46" 50,80mm/2" 11,0kg/24,25lbs
EOGHT300400B 300-400 300mm/11,81" 400mm/15,74" 6,0bar/87,02psi 3,0bar/43,51psi 285mm/11,22" 850mm/33,46" 50,8mm/2"+25,4mm/1" 11,7kg/25,79lbs
EOGHT375500A 375-500 375mm/14,76" 500mm/19,68" 6,0bar/87,02psi 3,0bar/43,51psi 355mm/13,98" 1000mm/39,37" 50,80mm/2" 18,0kg/39,68lbs
EOGHT375500B 375-500 375mm/14,76" 500mm/19,68" 6,0bar/87,02psi 3,0bar/43,51psi 355mm/13,98" 1000mm/39,37" 2x50,80mm/2x2" 20,0kg/44,09lbs
EOGHT500600A 500-600 500mm/19,68" 600mm/23,62" 6,0bar/87,02psi 3,0bar/43,51psi 485mm/19,09" 1050mm/41,34" 50,80mm/2" 27,0kg/59,52lbs
EOGHT500600B 500-600 500mm/19,68" 600mm/23,62" 6,0bar/87,02psi 3,0bar/43,51psi 485mm/19,09" 1050mm/41,34" 2x50,80mm/2x2" 28,8kg/63,49lbs
EOGHT600700A 600-700 600mm/23,62" 700mm/27,55" 6,0bar/87,02psi 3,0bar/43,51psi 585mm/23,03" 1300mm/51,18" 50,80mm/2" 35,0kg/77,16lbs
EOGHT600700B 600-700 600mm/23,62" 700mm/27,55" 6,0bar/87,02psi 3,0bar/43,51psi 585mm/23,03" 1300mm/51,18" 2x50,80mm/2x2" 36,0kg/79,37lbs
EOGHT8001000A 800-1000 800mm/31,49" 1000mm/39,37" 6,0bar/87,02psi 3,0bar/43,51psi 785mm/30,91" 1200mm/47,24" 101,60mm/4" 45,0kg/99,21lbs
EOGHT8001000B 800-1000 800mm/31,49" 1000mm/39,37" 6,0bar/87,02psi 3,0bar/43,51psi 785mm/30,91" 1200mm/47,24" 2x50,80mm/2x2" 50,0kg/110,23lbs
EOGHT12001400A 1200-1400 1200mm/47,24" 1400mm/55,11" 6,0bar/87,02psi 3,0bar/43,51psi 1180mm/46,45" 2500mm/98,42" 101,60mm/4" 220,0kg/484,88lbs
EOGHT12001400A 1200-1400 1200mm/47,24" 1400mm/55,11" 6,0bar/87,02psi 3,0bar/43,51psi 1180mm/46,45" 2500mm/98,42" 2x50,80mm/2x2" 220,0kg/484,88lbs
EOGHT18002000A 1800-2000 1800mm/70,86" 2000mm/78,74" 6,0bar/87,02psi 3,0bar/43,51psi 1780mm/70,07" 4000mm/157,48" 101,60mm/4" 320,0kg/705,28 lbs
EOGHT18002000B 1800-2000 1800mm/70,86" 2000mm/78,74" 6,0bar/87,02psi 3,0bar/43,51psi 1780mm/70,07" 4000mm/157,48" 2x50,80mm/2x2" 320,0kg/705,28 lbs
