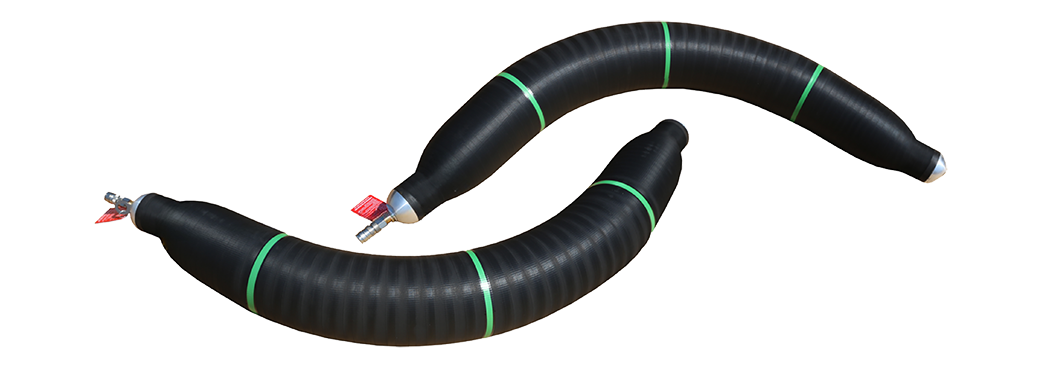

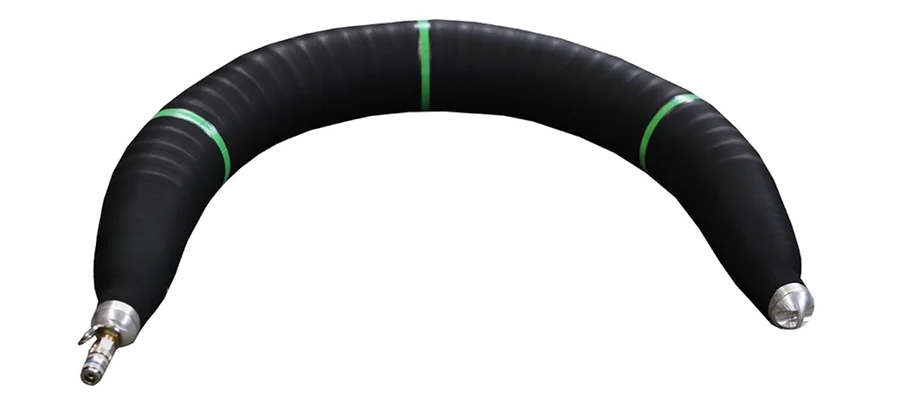

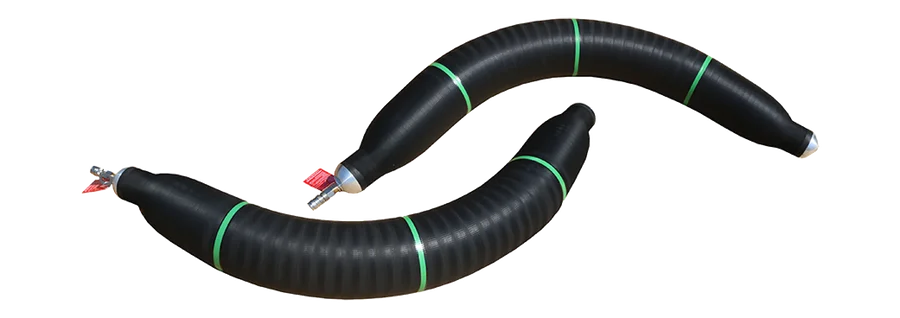

Multi Size Bendy Packers are designed for repairing and maintaining small diameter pipes, specifically in curved parts of pipelines. They are highly flexible and easy to handle due to their structure, which makes them ideal for use in pipes with bends of up to 90 degrees.
Features:
| Product Code | Nominal Size(mm) | Cylinder Length(mm/inch) | Max. Contact (Repair)Lenght (mm/inch) | Max. Working Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/lbs) | |
|---|---|---|---|---|---|---|---|---|
|
|
EBP5070 | 50-70 | 1250mm/49,21" | 1000mm/39,37" | 3,0bar/43,51psi | 32mm/1,25" | 1350mm/53,14" | 0,75kg/1,65lbs |
|
|
EBP7080 | 70-80 | 1250mm/49,21" | 1000mm/39,37" | 3,0bar/43,51psi | 50mm/1,96" | 1350mm/53,14" | 2,0kg/4,41lbs |
|
|
EBP100125 | 100-125 | 1250mm/49,21" | 1000mm/39,37" | 3,0bar/43,51psi | 60mm/2,36" | 1350mm/53,14" | 3,0kg/6,61lbs |
|
|
EBP150165 | 150-165 | 1250mm/49,21" | 1000mm/39,37" | 2,0bar/29,0psi | 80mm/3,14" | 1350mm/53,14" | 5,0kg/11,02lbs |
|
|
EBP170220 | 170-220 | 1450mm/57,08" | 1200mm/47,24" | 2,0bar/29,0psi | 115mm/4,52" | 1550mm/61,02" | 7,0kg/15,43lbs |
|
|
EBP225250 | 225-250 | 1650mm/64,96" | 1400mm/55,11" | 2,0bar/29,0psi | 150mm/5,90" | 1750mm/68,89" | 9,0kg/19,84lbs |
|
|
EBP280300 | 280-300 | 1750mm/68,89" | 1500mm/59,05" | 2,0bar/29,0psi | 231mm/9,09" | 1850mm/72,83" | 13,0kg/28,66lbs |
