Joint Testers
Joint Testers

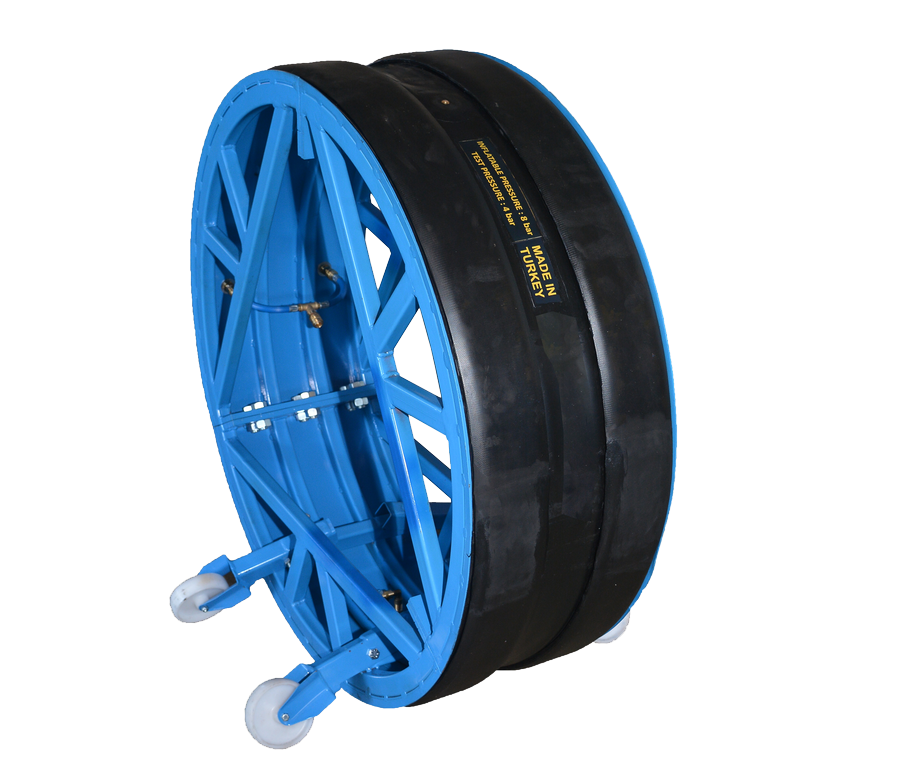

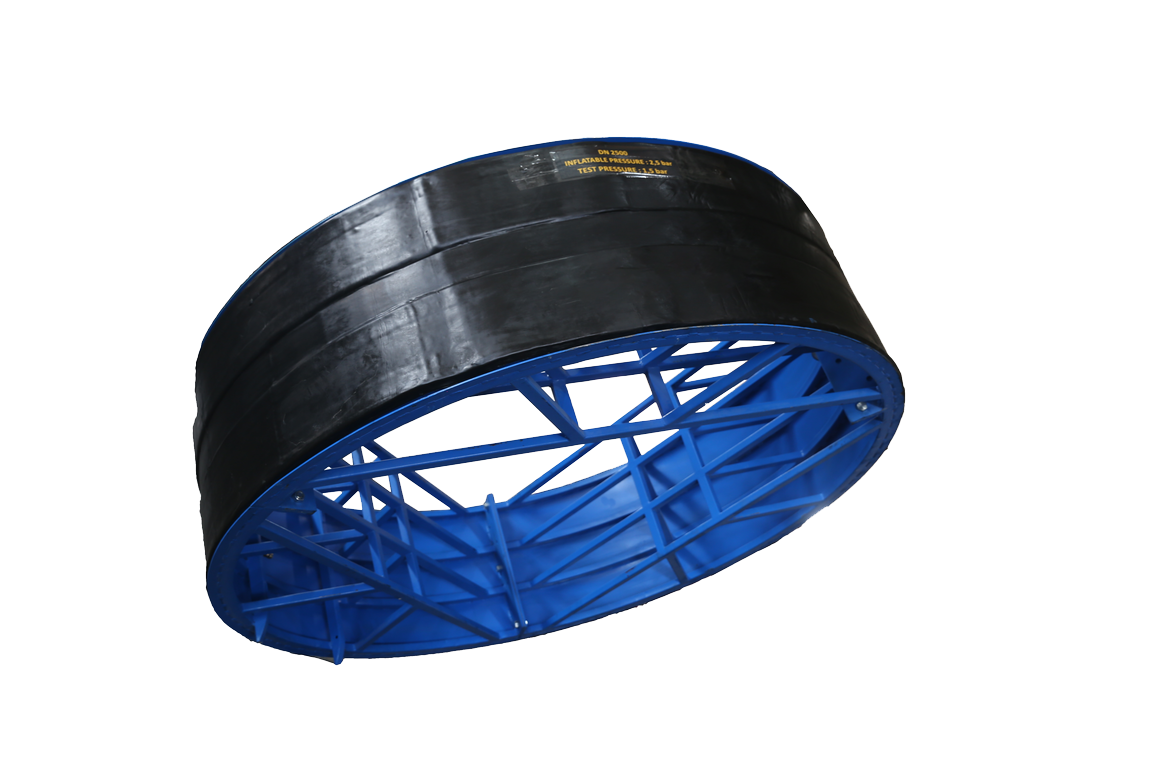

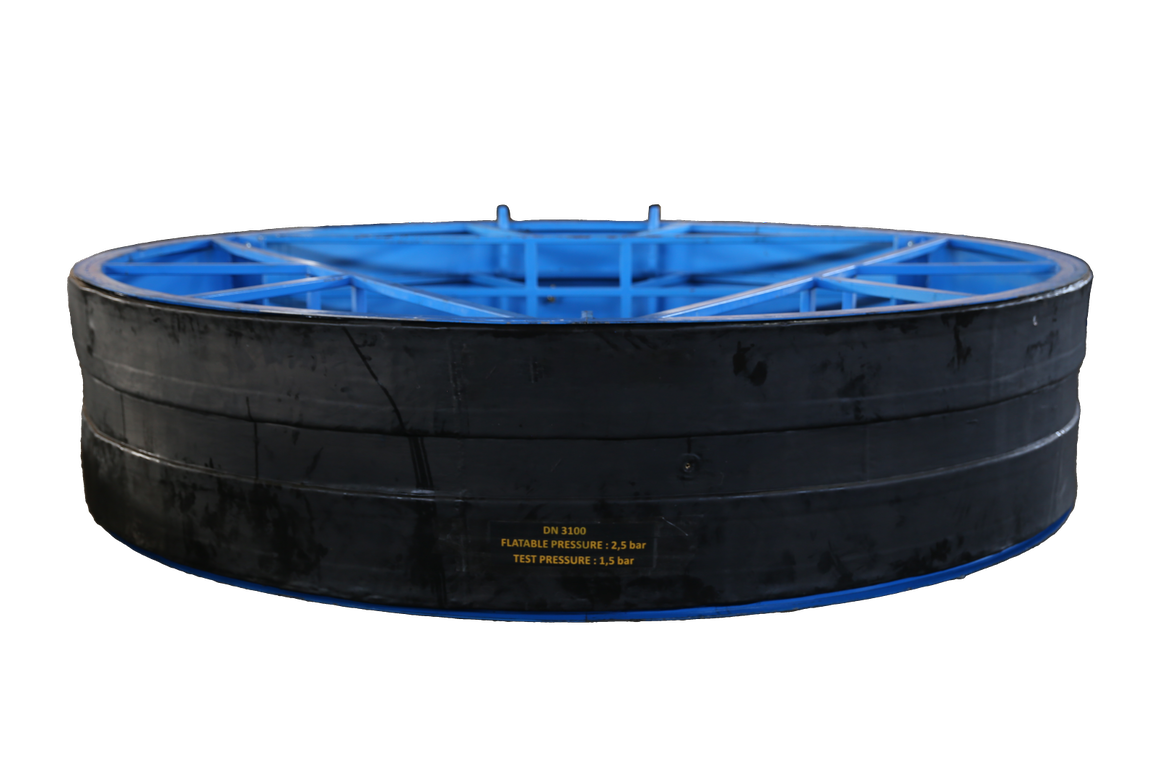

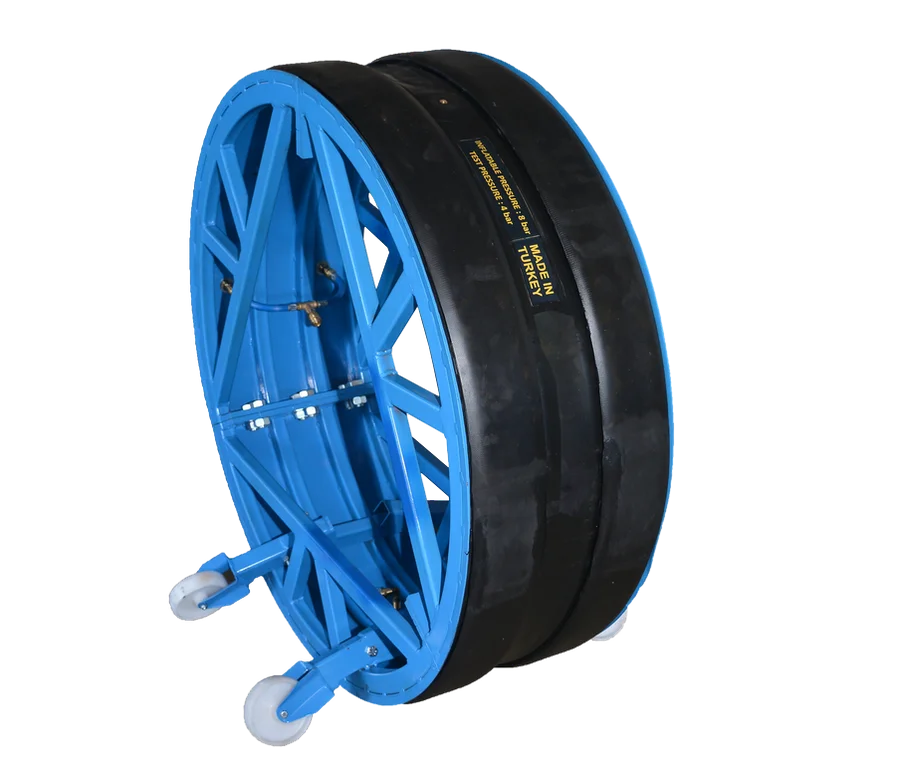

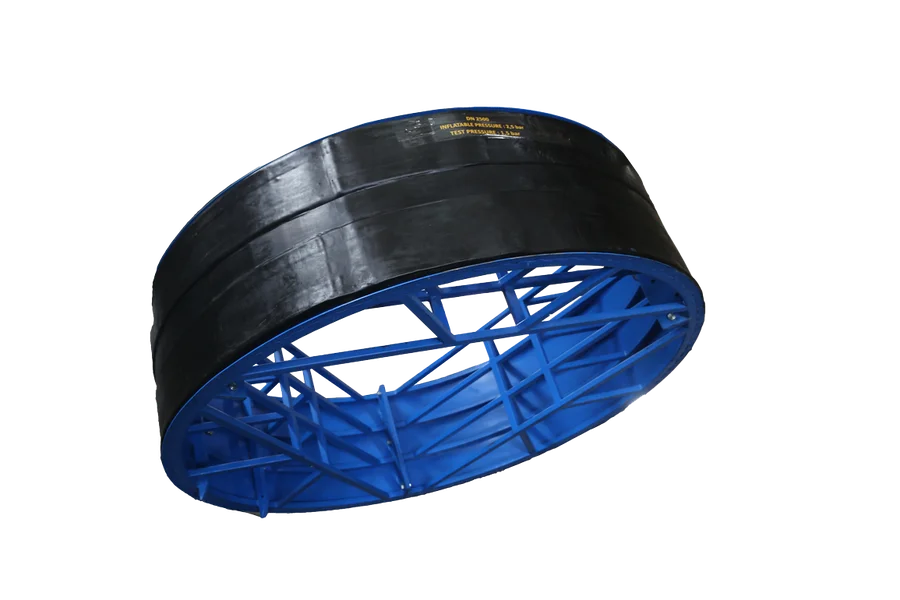

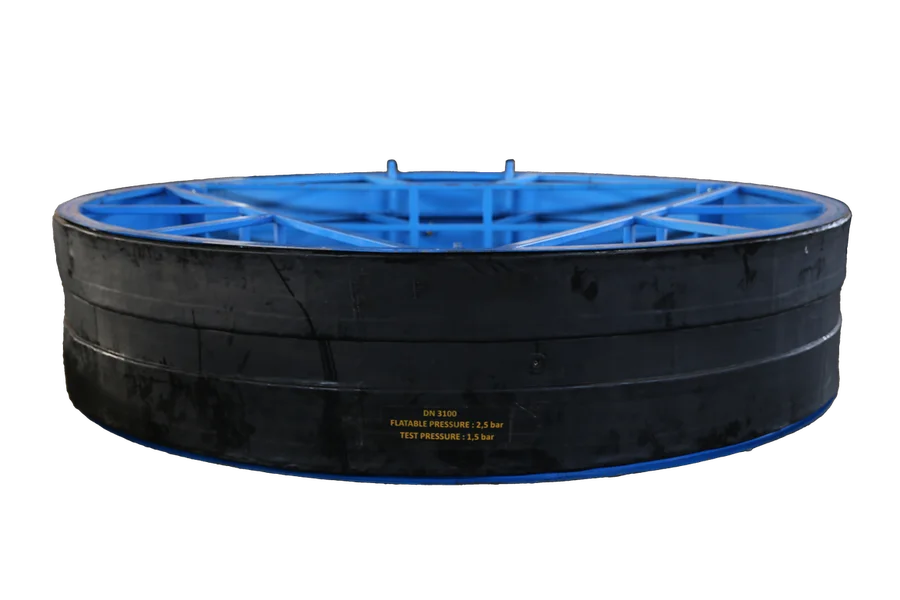

These pneumatic pipe test plugs are designed for use in the petrochemical industry, as well as the oil, gas, fuel, and other chemical industries. They are inflatable and can be used to redirect flow in gutters, drainage systems, pipelines, and sewers during maintenance or repair operations. Made from highly resistant materials, these plugs can withstand the harsh effects of gasoline, oil, gases, and chemicals.
Features:
- Available in all sizes, with diameters ranging from 50mm to 4200mm
- Resistant to high pressures, comparable to conventional pipe stoppers
- Standard working pressures of 1.5 bar and 2.5 bar
- Suitable for temporarily blocking pipelines during leak testing, maintenance, and repair operations
Request a free quote
Tell us the sizes and quantities you need for Joint Testers and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
- JOINT TESTERS (55 BAR/797,50 PSI)
- JOINT TESTERS (25 BAR/362,5 PSI)
- JOINT TESTERS (11 BAR/159,50 PSI)
- JOINT TESTERS (2,5 BAR/36,25 PSI)
| Qty | Product Code | Nominal Size(mm) | Product Diameter(mm/inch) | Pipe Diameter to beTesting (mm/inch) | Total Length of Product(mm/inch) | Max. Working/Inflating Pressure(bar/psi) | Joint Hydrostatic Test Pressure(bar/psi) | Product Weight(kg/lbs) |
|---|---|---|---|---|---|---|---|---|
| EJT100/55 | 100 | 50mm/2,0" | 100mm/4,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 40,0kg/88,62lbs | |
| EJT200/55 | 200 | 150mm/6,0" | 200mm/8,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 77,0kg/169,86lbs | |
| EJT300/55 | 300 | 250mm/10,0" | 300mm/12,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 117,0kg/258,49lbs | |
| EJT400/55 | 400 | 350mm/14,0" | 400mm/16,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 151,0kg/332,34lbs | |
| EJT500/55 | 500 | 450mm/18,0" | 500mm/20,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 194,0kg/428,35lbs | |
| EJT600/55 | 600 | 550mm /22,0" | 600mm/24,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 235,0kg/516,98lbs | |
| EJT700/55 | 700 | 650mm/26,0" | 700mm/28,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 275,0kg /605,6lbs | |
| EJT800/55 | 800 | 750mm/30,0" | 800mm/32,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 312,0kg/686,84lbs | |
| EJT900/55 | 900 | 850mm/34,0" | 900mm/36,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 348,0kg/768,08lbs | |
| EJT1000/55 | 1000 | 950mm/38,0" | 1000mm/40,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 390,0kg/859,79lbs | |
| EJT2500/55 | 1100 | 1050mm/42,0" | 1100mm/44,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 425,0kg/936,96lbs | |
| EJT1200/55 | 1200 | 1150mm/46,0" | 1200mm/48,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 459,0kg /1011,8lbs | |
| EJT1300/55 | 1300 | 1250mm/50,0" | 1300mm/52,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 479,0kg /1056,11lbs | |
| EJT1400/55 | 1400 | 1350mm/54,0" | 1400mm/56,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 529,0kg/1166,89lbs | |
| EJT1500/55 | 1500 | 1450mm/58,0" | 1500mm/60,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 553,0kg/1218,59lbs | |
| EJT1600/55 | 1600 | 1550mm/62,0" | 1600mm/64,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 620,0kg/1366,3lbs | |
| EJT1700/55 | 1700 | 1650mm/66,0" | 1700mm/68,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 660,0kg/1454,93lbs | |
| EJT1800/55 | 1800 | 1750mm/70,0" | 1800mm/72,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 697,0kg/1536,17lbs | |
| EJT1900/55 | 1900 | 1850mm/74,0" | 1900mm/76,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 740,0kg/1632.18lbs | |
| EJT2000/55 | 2000 | 1950mm/78,0" | 2000mm/80,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 781,0kg/1720,8lbs | |
| EJT2100/55 | 2100 | 2050mm/82,0" | 2100mm/84,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 814,0kg/1794,65lbs | |
| EJT2200/55 | 2200 | 2150mm/86,0" | 2200mm /88,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 858,0kg/1890,66lbs | |
| EJT2300/55 | 2300 | 2250mm/90,0" | 2300mm/92,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 894,0kg/1971,9lbs | |
| EJT2400/55 | 2400 | 2350mm/94,0" | 2400mm/96,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 938,0kg/2067,91lbs |
| Qty | Product Code | Nominal Size(mm) | Product Diameter(mm/inch) | Pipe Diameter to beTesting (mm/inch) | Total Length of Product(mm/inch) | Max. Working/Inflating Pressure(bar/psi) | Joint Hydrostatic Test Pressure(bar/psi) | Product Weight(kg/lbs) |
|---|---|---|---|---|---|---|---|---|
| EJT100/25 | 100 | 50mm/2,0" | 100mm/4,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 31,0kg/69,0lbs | |
| EJT200/25 | 200 | 150mm/6,0" | 200mm/8,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 60,0kg/132,0lbs | |
| EJT300/25 | 300 | 250mm/10,0" | 300mm/12,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 91,0kg/200,0lbs | |
| EJT400/25 | 400 | 350mm/14,0" | 400mm/16,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 117,0kg/258,0lbs | |
| EJT500/25 | 500 | 450mm/18,0" | 500mm/20,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 151,0kg/332,0lbs | |
| EJT600/25 | 600 | 550mm /22,0" | 600mm/24,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 182,0kg/401,0lbs | |
| EJT700/25 | 700 | 650mm/26,0" | 700mm/28,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 213,0kg/470,0lbs | |
| EJT800/25 | 800 | 750mm/30,0" | 800mm/32,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 242,0kg/533,0lbs | |
| EJT900/25 | 900 | 850mm/34,0" | 900mm/36,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 272,0kg/600,0lbs | |
| EJT1000/25 | 1000 | 950mm/38,0" | 1000mm/40,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 302,0kg/665,0lbs | |
| EJT2500/25 | 1100 | 1050mm/42,0" | 1100mm/44,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 330,0kg/728,0lbs | |
| EJT1200/25 | 1200 | 1150mm/46,0" | 1200mm/48,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 356,0kg/785,0lbs | |
| EJT1300/25 | 1300 | 1250mm/50,0" | 1300mm/52,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 372,0kg/820,0lbs | |
| EJT1400/25 | 1400 | 1350mm/54,0" | 1400mm/56,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 411,0kg/905,0lbs | |
| EJT1500/25 | 1500 | 1450mm/58,0" | 1500mm/60,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 429,0kg/946,0lbs | |
| EJT1600/25 | 1600 | 1550mm/62,0" | 1600mm/64,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 481,0kg/1060,0lbs | |
| EJT1700/25 | 1700 | 1650mm/66,0" | 1700mm/68,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 512,0kg /1129,0lbs | |
| EJT1800/25 | 1800 | 1750mm/70,0" | 1800mm/72,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 541,0kg/1192,0lbs | |
| EJT1900/25 | 1900 | 1850mm/74,0" | 1900mm/76,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 575,0kg/1267,0lbs | |
| EJT2000/25 | 2000 | 1950mm/78,0" | 2000mm/80,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 606,0kg/1335,0lbs | |
| EJT2100/25 | 2100 | 2050mm/82,0" | 2100mm/84,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 632,0kg/1393,0lbs | |
| EJT2200/25 | 2200 | 2150mm/86,0" | 2200mm /88,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 666,0kg/1467,0lbs | |
| EJT2300/25 | 2300 | 2250mm/90,0" | 2300mm/92,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 694,0kg/1530,0lbs | |
| EJT2400/25 | 2400 | 2350mm/94,0" | 2400mm/96,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 728,0kg/1605,0lbs | |
| EJT2500/25 | 2500 | 2450mm/98,0" | 2500mm/100,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 762,0kg/1679,0lbs | |
| EJT2600/25 | 2600 | 2550mm/102,0" | 2600mm/104,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 785,0kg/1731,0lbs | |
| EJT2700/25 | 2700 | 2650mm/106,0" | 2700mm/108,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 816,0kg/1800,0lbs | |
| EJT2800/25 | 2800 | 2750mm/110,0" | 2800mm/112,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 845,0kg/1863,0lbs | |
| EJT2900/25 | 2900 | 2850mm/114,0" | 2900mm/116,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 879,0kg/1937,0lbs | |
| EJT3000/25 | 3000 | 2950mm/118,0" | 3000mm/120,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 910,0kg/2006,0lbs | |
| EJT3100/25 | 3100 | 3050mm/122,0" | 3100mm/124,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 941,0kg/2075,0lbs |
| Qty | Product Code | Nominal Size(mm) | Product Diameter(mm/inch) | Pipe Diameter to beTesting (mm/inch) | Total Length of Product(mm/inch) | Max. Working/Inflating Pressure(bar/psi) | Joint Hydrostatic Test Pressure(bar/psi) | Product Weight(kg/lbs) |
|---|---|---|---|---|---|---|---|---|
| EJT100/11 | 100 | 50mm/2,0" | 100mm/4,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 22,0kg/48lbs | |
| EJT200/11 | 200 | 150mm/6,0" | 200mm/8,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 41,0kg/91,0lbs | |
| EJT300/11 | 300 | 250mm/10,0" | 300mm/12,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 63,0kg/139,0lbs | |
| EJT400/11 | 400 | 350mm/14,0" | 400mm/16,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 81,0kg/179,0lbs | |
| EJT500/11 | 500 | 450mm/18,0" | 500mm/20,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 104,0kg/230,0lbs | |
| EJT600/11 | 600 | 550mm /22,0" | 600mm/24,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 126,0kg/278,0lbs | |
| EJT700/11 | 700 | 650mm/26,0" | 700mm/28,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 148,0kg/325,0lbs | |
| EJT800/11 | 800 | 750mm/30,0" | 800mm/32,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 167,0kg/369,0lbs | |
| EJT900/11 | 900 | 850mm/34,0" | 900mm/36,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 187,0kg/413,0lbs | |
| EJT1000/11 | 1000 | 950mm/38,0" | 1000mm/40,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 209,0kg/460,0lbs | |
| EJT1100/11 | 1100 | 1050mm/42,0" | 1100mm/44,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 229,0kg/504,0lbs | |
| EJT1200/11 | 1200 | 1150mm/46,0" | 1200mm/48,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 247,0kg/544,0lbs | |
| EJT1300/11 | 1300 | 1250mm/50,0" | 1300mm/52,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 257,0kg/567,0lbs | |
| EJT1400/11 | 1400 | 1350mm/54,0" | 1400mm/56,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 284,0kg/627,0lbs | |
| EJT1500/11 | 1500 | 1450mm/58,0" | 1500mm/60,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 297,0kg/655,0lbs | |
| EJT1600/11 | 1600 | 1550mm/62,0" | 1600mm/64,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 333,0kg /734,0lbs | |
| EJT1700/11 | 1700 | 1650mm/66,0" | 1700mm/68,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 355,0kg/782,0lbs | |
| EJT1800/11 | 1800 | 1750mm/70,0" | 1800mm/72,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 374,0kg/825,0lbs | |
| EJT1900/11 | 1900 | 1850mm/74,0" | 1900mm/76,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 398,0kg/877,0lbs | |
| EJT2000/11 | 2000 | 1950mm/78,0" | 2000mm/80,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 419,0kg/925,0lbs | |
| EJT2100/11 | 2100 | 2050mm/82,0" | 2100mm/84,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 437,0kg/964,0lbs | |
| EJT2200/11 | 2200 | 2150mm/86,0" | 2200mm /88,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 461,0kg/1016,0lbs | |
| EJT2300/11 | 2300 | 2250mm/90,0" | 2300mm/92,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 481,0kg/1060,0lbs | |
| EJT2400/11 | 2400 | 2350mm/94,0" | 2400mm/96,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 504,0kg/1111,0lbs | |
| EJT2500/11 | 2500 | 2450mm/98,0" | 2500mm/100,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 527,0kg/1163,0lbs | |
| EJT2600/11 | 2600 | 2550mm/102,0" | 2600mm/104,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 544,0kg/1198,0lbs | |
| EJT2700/11 | 2700 | 2650mm/106,0" | 2700mm/108,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 565,0kg/1246,0lbs | |
| EJT2800/11 | 2800 | 2750mm/110,0" | 2800mm/112,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 585,0kg/1290,0lbs | |
| EJT2900/11 | 2900 | 2850mm/114,0" | 2900mm/116,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 608,0kg/1341,0lbs | |
| EJT3000/11 | 3000 | 2950mm/118,0" | 3000mm/120,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 630,0kg/1389,0lbs | |
| EJT3100/11 | 3100 | 3050mm/122,0" | 3100mm/124,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 652,0kg/1437,0lbs | |
| EJT3200/11 | 3200 | 3150mm/126,0" | 3200mm/128,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 671,0kg/1480,0lbs | |
| EJT3300/11 | 3300 | 3250mm/130,0" | 3300mm/132,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 713,0kg/1571,0lbs | |
| EJT3400/11 | 3400 | 3350mm/134,0" | 3400mm/136,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 736,0kg/1623,0lbs | |
| EJT3500/11 | 3500 | 3450mm/18,0" | 3500mm/140,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 760,0kg/1675,0lbs | |
| EJT3600/11 | 3600 | 3550mm/142,0" | 3600mm/144,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 783,0kg/1726,0lbs | |
| EJT3700/11 | 3700 | 3650mm/146,0" | 3700mm/148,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 806,0kg/1778,0lbs | |
| EJT3800/11 | 3800 | 3750mm/150,0" | 3800mm/152,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 891,0kg/1964,0lbs | |
| EJT3900/11 | 3900 | 3850mm/154,0" | 3900mm/156,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 916,0kg/2020,0lbs | |
| EJT4000/11 | 4000 | 3950mm/158,0" | 4000mm/160,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 1008,0kg/2222,0lbs |
| Qty | Product Code | Nominal Size(mm) | Product Diameter(mm/inch) | Pipe Diameter to beTesting (mm/inch) | Total Length of Product(mm/inch) | Max. Working/Inflating Pressure(bar/psi) | Joint Hydrostatic Test Pressure(bar/psi) | Product Weight(kg/lbs) |
|---|---|---|---|---|---|---|---|---|
| EJT100/2,5 | 100 | 80mm/3,14" | 100mm/3,94" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 12,0kg/26,46lbs | |
| EJT200/2,5 | 200 | 180mm/7,08" | 200mm/7,87" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 23,0kg/50,71lbs | |
| EJT300/2,5 | 300 | 280mm/11,02" | 300mm/11,81" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 35,0kg/77,16lbs | |
| EJT400/2,5 | 400 | 380mm/14,96" | 400mm/15,75" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 45,0kg/99,21lbs | |
| EJT500/2,5 | 500 | 480mm/18,89" | 500mm/19,69" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 58,0kg/127,87lbs | |
| EJT600/2,5 | 600 | 580mm /22,83" | 600mm/23,62" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 70,0kg/154,32lbs | |
| EJT700/2,5 | 700 | 680mm/26,77" | 700mm/27,56" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 82,0kg/180,78lbs | |
| EJT800/2,5 | 800 | 780mm/30,70" | 800mm/31,50" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 93,0kg/205,03lbs | |
| EJT900/2,5 | 900 | 880mm/34,64" | 900mm/35,43" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 104,0kg/229,28lbs | |
| EJT1000/2,5 | 1000 | 980mm/38,58" | 1000mm/39,37" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 116,0kg/255,74lbs | |
| EJT1100/2,5 | 1100 | 1080mm/42,51" | 1100mm/43,31" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 127,0kg/279,99lbs | |
| EJT1200/2,5 | 1200 | 1180mm/46,45" | 1200mm/47,24" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 137,0kg/302,03lbs | |
| EJT1300/2,5 | 1300 | 1280mm/50,39" | 1300mm/51,18" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 143,0kg/315,26lbs | |
| EJT1400/2,5 | 1400 | 1380mm/54,33" | 1400mm/55,12" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 158,0kg/348,33lbs | |
| EJT1500/2,5 | 1500 | 1480mm/58,26" | 1500mm/59,06" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 165,0kg/363,76lbs | |
| EJT1600/2,5 | 1600 | 1580mm/62,20" | 1600mm/62,99" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 185,0kg/407,86lbs | |
| EJT1700/2,5 | 1700 | 1680mm/66,14" | 1700mm/66,93" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 197,0kg/434,31lbs | |
| EJT1800/2,5 | 1800 | 1780mm/70,07" | 1800mm/70,87" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 208,0kg/458,56lbs | |
| EJT1900/2,5 | 1900 | 1880mm/74,01" | 1900mm/74,80" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 221,0kg/487,22lbs | |
| EJT2000/2,5 | 2000 | 1980mm/77,95" | 2000mm/78,74" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 233,0kg/513,68lbs | |
| EJT2100/2,5 | 2100 | 2080mm/81,88" | 2100mm/82,68" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 243,0kg/535,72lbs | |
| EJT2200/2,5 | 2200 | 2180mm/85,82" | 2200mm/86,61" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 256,0kg/564,38lbs | |
| EJT2300/2,5 | 2300 | 2280mm/89,76" | 2300mm/90,55" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 267,0kg/588,63lbs | |
| EJT2400/2,5 | 2400 | 2380mm/93,70" | 2400mm/94,49" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 280,0kg/617,29lbs | |
| EJT2500/2,5 | 2500 | 2480mm/93,70" | 2500mm/98,43" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 293,0kg/645,95lbs | |
| EJT2600/2,5 | 2600 | 2580mm/101,57" | 2600mm/102,36" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 302,0kg/665,8lbs | |
| EJT2700/2,5 | 2700 | 2680mm/105,51" | 2700mm/106,30" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 314,0kg/692,25lbs | |
| EJT2800/2,5 | 2800 | 2780mm/109,45" | 2800mm/110,24" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 325,0kg/716,5lbs | |
| EJT2900/2,5 | 2900 | 2880mm/113,39" | 2900mm/114,17" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 338,0kg/745,16lbs | |
| EJT3000/2,5 | 3000 | 2980mm/117,32" | 3000mm/118,11" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 350,0kg/771,62lbs | |
| EJT3100/2,5 | 3100 | 3080mm/121,25" | 3100mm/122,05" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 362,0kg/798,07lbs | |
| EJT3200/2,5 | 3200 | 3180mm/125,2" | 3200mm/125,98" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 373,0kg/822,32lbs | |
| EJT3300/2,5 | 3300 | 3280mm/129,13" | 3300mm/129,92" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 396,0kg/873,03lbs | |
| EJT3400/2,5 | 3400 | 3380mm/133,07" | 3400mm/133,86" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 409,0kg/901,69lbs | |
| EJT3500/2,5 | 3500 | 3480mm/137,01" | 3500mm/137,80" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 422,0kg/930,35lbs | |
| EJT3600/2,5 | 3600 | 3580mm/140,94" | 3600mm/141,73" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 435,0kg/959,01lbs | |
| EJT3700/2,5 | 3700 | 3680mm/144,88" | 3700mm/145,67" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 448,0kg/987,67lbs | |
| EJT3800/2,5 | 3800 | 3780mm/148,82" | 3800mm/149,61" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 495,0kg/1091,29lbs | |
| EJT3900/2,5 | 3900 | 3880mm/152,76" | 3900mm/153,54" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 509,0kg/1122,15lbs | |
| EJT4000/2,5 | 4000 | 3980mm/156,69" | 4000mm/157,48" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 560,0kg/1234,59lbs |
135 sizes across 4 pressure classes.Go to quote list
