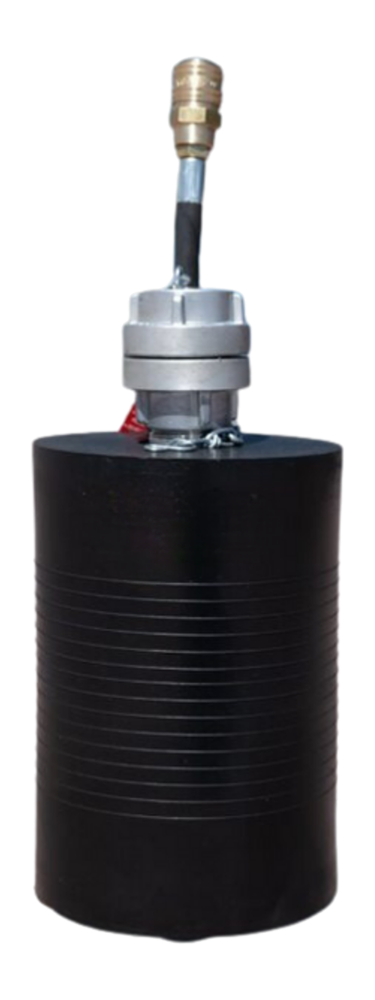

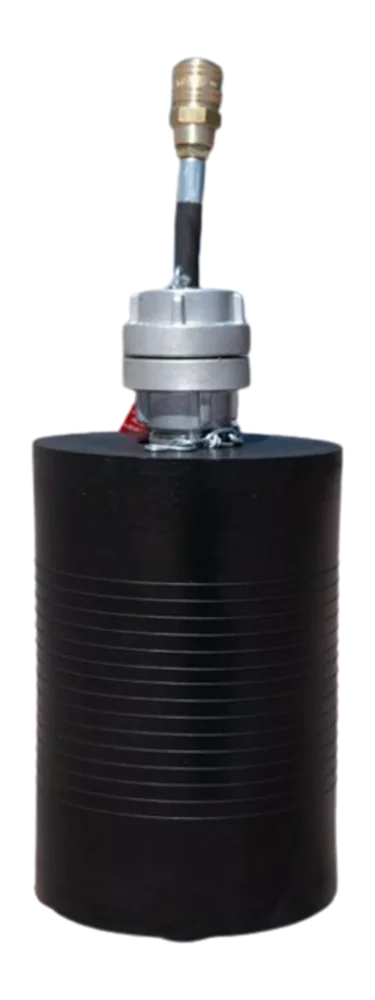

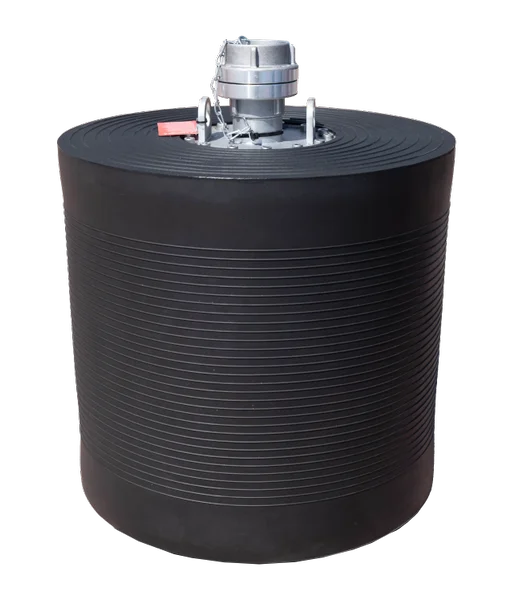

Inflatable Small Pipe Test Plugs
Inflatable Small Pipe Test Plugs are the ideal solution for your air and water leak tests. Our plug range covers pipe diameters from 30mm to 1000mm and can be used to block or redirect the flow of water.
Features:
- Easy-to-use and convenient test plugs to block or redirect the flow of water.
- Plugs are designed to fit pipe diameters ranging from 30mm to 1000mm.
- Ideal for both air and water leak tests on residential connections.
- High-quality construction to ensure dependable performance and reliable results.
- Comes with a secure sealing system that ensures a tight and leak-proof fit.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EST30 | 30 | 30mm/1,18" | 32mm/1,26" | 2,5bar/36,25psi | 29mm/1,14" | 30mm/1,18" | 3,17mm/1/8" | 0,14kg/0,31lbs |
|
|
EST40 | 40 | 38mm/1,50" | 42mm/1,65" | 2,5bar/36,25psi | 37mm/1,46" | 40mm/1,57" | 3,17mm/1/8" | 0,15kg/0,33lbs |
|
|
EST50 | 50 | 48mm/1,89" | 54mm/2,13" | 2,5bar/36,25psi | 45mm/1,77" | 50mm/1,97" | 3,17mm/1/8" | 0,25kg/0,55lbs |
|
|
EST60 | 60 | 59mm/2,32" | 65mm/2,56" | 2,5bar/36,25psi | 58mm/2,28" | 90mm/3,54" | 12,70mm/1/2" | 0,35kg/0,77lbs |
|
|
EST75 | 75 | 72mm/2,83" | 78mm/3,07" | 2,5bar/36,25psi | 69mm/2,72" | 110mm/4,33" | 12,70mm/1/2" | 0,45kg/0,99lbs |
|
|
EST100 | 100 | 90mm/3,54" | 105mm/4,13" | 2,5bar/36,25psi | 88mm/3,46" | 150mm/5,91" | 12,70mm/1/2" | 0,6kg/1,32lbs |
|
|
EST150 | 150 | 150mm/5,91" | 150mm/5,91" | 2,5bar/36,25psi | 138mm/5,43" | 150mm/5,91" | 50,80mm/2" | 1,5kg/3,31lbs |
|
|
EST200 | 200 | 200mm/7,87" | 200mm/7,87" | 2,5bar/36,25psi | 180mm/7,09" | 200mm/7,87" | 50,80mm/2" | 2,0kg/4,41lbs |
|
|
EST225 | 225 | 225mm/8,85" | 225mm/8,85" | 2,5bar/36,25psi | 225mm/8,86" | 250mm/9,84" | 50,80mm/2" | 2,5kg/5,51lbs |
|
|
EST250 | 250 | 250mm/9,84" | 250mm/9,84" | 2,5bar/36,25psi | 225mm/8,86" | 250mm/9,84" | 50,80mm/2" | 2,5kg/5,51lbs |
|
|
EST300 | 300 | 300mm/11,81" | 300mm/11,81" | 2,5bar/36,25psi | 285mm/11,22" | 300mm/11,81" | 50,80mm/2" | 3,2kg/7,05lbs |
|
|
EST350 | 350 | 350mm/13,77" | 350mm/13,77" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 50,80mm/2" | 3,7kg/8,16lbs |
|
|
EST400 | 400 | 400mm/15,75" | 400mm/15,75" | 2,5bar/36,25psi | 380mm/14,96" | 450mm/17,72" | 50,80mm/2" | 4,2kg/9,26lbs |
|
|
EST500 | 500 | 500mm/19,69" | 500mm/19,69" | 2,5bar/36,25psi | 480mm/18,9" | 450mm/17,72" | 50,80mm/2" | 5,4kg/11,9lbs |
|
|
EST600 | 600 | 600mm/23,62" | 600mm/23,62" | 2,5bar/36,25psi | 580mm/22,83" | 450mm/17,72" | 50,80mm/2" | 6,5kg/14,33lbs |
|
|
EST800 | 800 | 800mm/31,50" | 800mm/31,5" | 2,5bar/36,25psi | 780mm/30,71" | 800mm/31,5" | 50,80mm/2" | 30,kg/66,14lbs |
|
|
EST3040 | 30-40 | 30mm/1,18" | 40mm/1,57" | 2,5bar/36,25psi | 29mm/1,14" | 100mm/3,94" | 3,17mm/1/8" | 0,5kg/1,1lbs |
|
|
EST5075 | 50-75 | 48mm/1,89" | 75mm/2,95" | 2,5bar/36,25psi | 48mm/1,89" | 100mm/3,94" | 3,17mm/1/8" | 0,75kg/1,65lbs |
|
|
EST70100 | 70-100 | 88mm/3,46" | 105mm/4,13" | 2,5bar/36,25psi | 70mm/2,76" | 150mm/5,91" | 12,70mm/1/2" | 1,0kg/2,20lbs |
|
|
EST100150 | 100-150 | 90mm/3,54" | 150mm/5,91" | 2,5bar/36,25psi | 88mm/3,46" | 150mm/5,91" | 12,70mm/1/2" | 1,5kg/3,30lbs |
|
|
EST150200 | 150-200 | 150mm/5,91" | 200mm/7,87" | 2,5bar/36,25psi | 138mm/5,43" | 200mm/7,87" | 25,40mm/1" | 2,5kg/5,51lbs |
|
|
EST200250 | 200-250 | 200mm/7,87" | 250mm/9,84" | 2,5bar/36,25psi | 180mm/7,09" | 250mm/9,84" | 50,80mm/2" | 4,0kg/8,82lbs |
|
|
EST250300 | 250-300 | 250mm/9,84" | 300mm/11,81" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 50,80mm/2" | 6,0kg/13,23lbs |
|
|
EST300350 | 300-350 | 300mm/11,81" | 350mm/13,78" | 2,5bar/36,25psi | 285mm/11,22" | 300mm/11,81" | 50,80mm/2" | 8,0kg/17,63lbs |
|
|
EST400450 | 400-450 | 400mm/15,75" | 450mm/17,72" | 2,5bar/36,25psi | 380mm/14,96" | 450mm/17,72" | 50,80mm/2" | 11,0kg/24,24lbs |
|
|
EST500550 | 500-550 | 500mm/19,69" | 550mm/21,65" | 2,5bar/36,25psi | 480mm/18,90" | 450mm/17,72" | 50,80mm/2" | 14,0kg/30,86lbs |
|
|
EST600650 | 600-650 | 600mm/23,62" | 650mm/25,59" | 2,5bar/36,25psi | 480mm/18,90" | 450mm/17,72" | 50,80mm/2" | 19,0kg/41,88lbs |
|
|
EST8001000 | 800-1000 | 800mm/31,50" | 1000mm/39,37" | 2,5bar/36,25psi | 780mm/30,71" | 800mm/31,50" | 50,80mm/2" | 35,0kg/77,16lbs |
