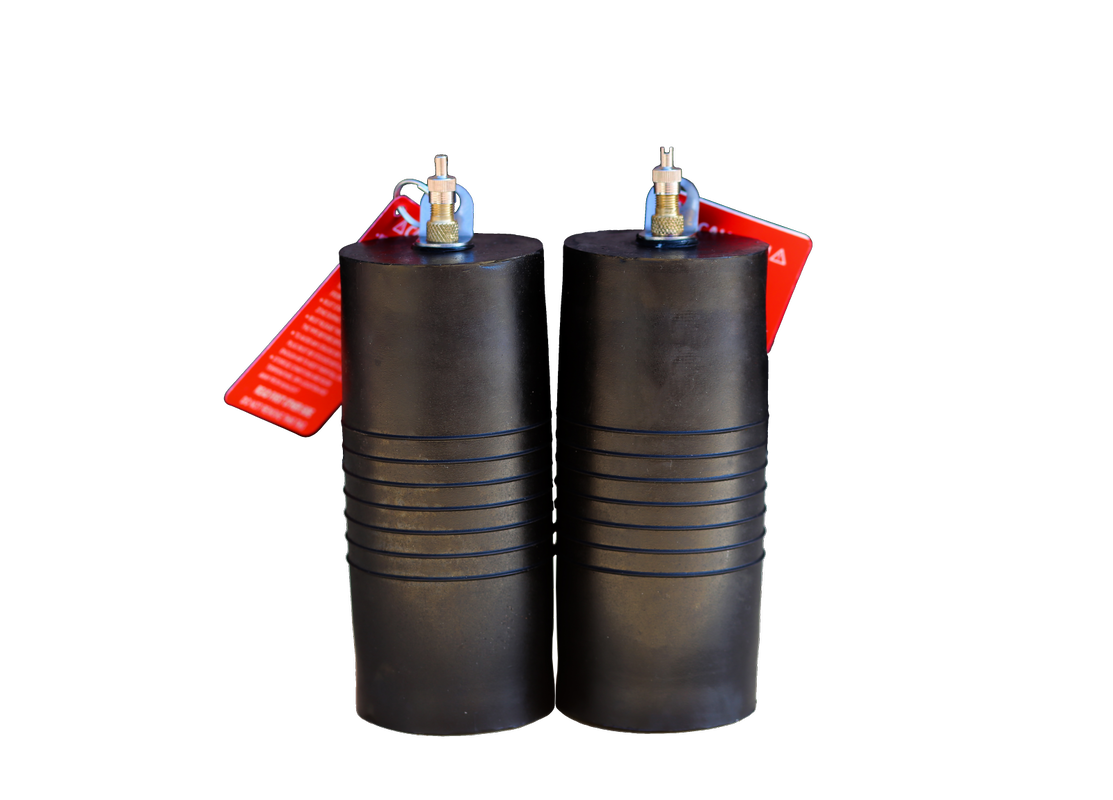

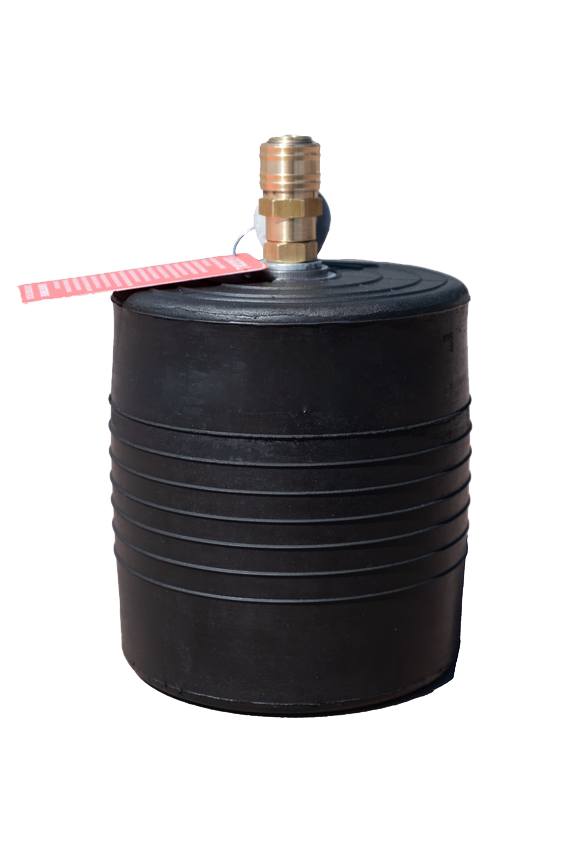

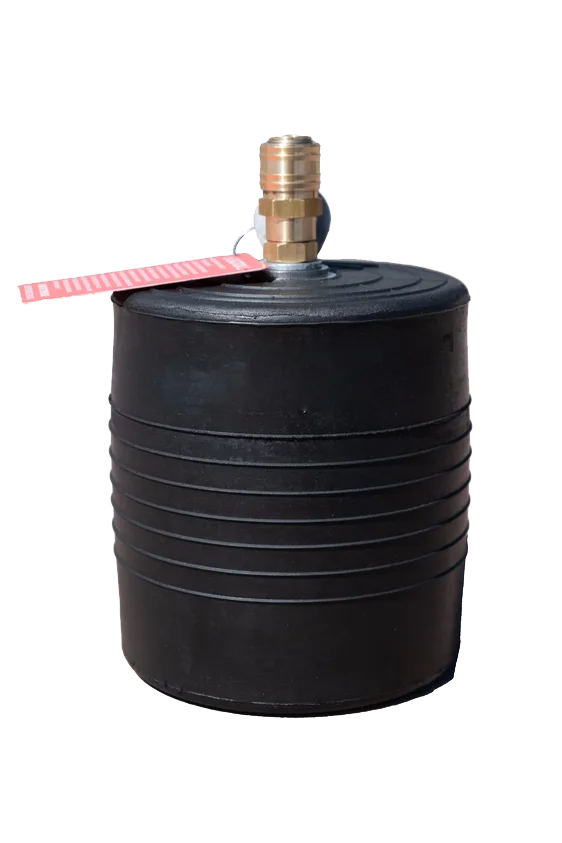

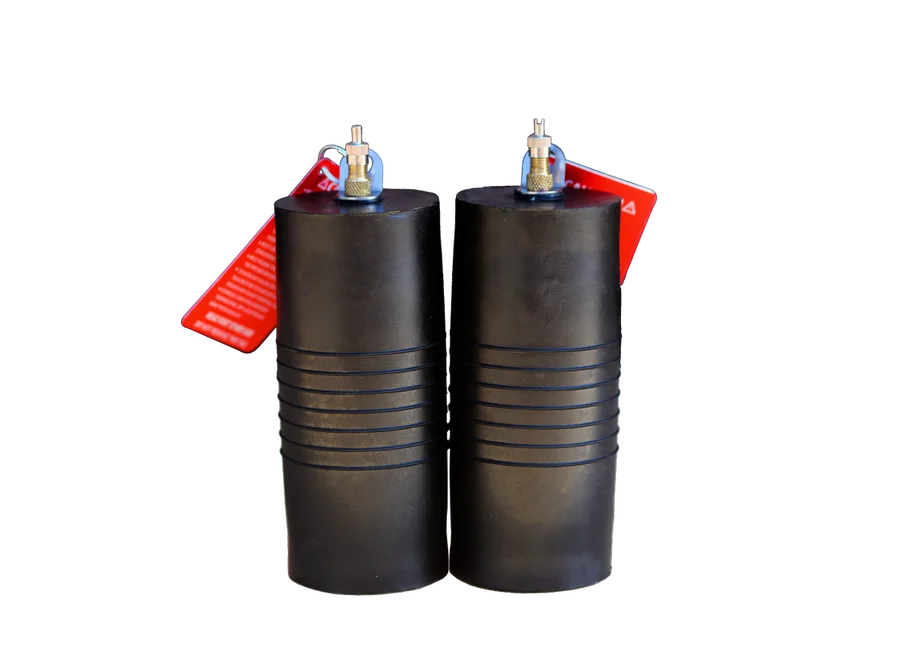

Inflatable Small Pipe Stoppers are an effective and reliable sealing solution for your pipes. Coming in a variety of sizes, they are easy to install and boast corrosion-resistant metal parts. Enjoy peace of mind knowing your connections are safely sealed with Inflatable Small Pipe Stoppers.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|
|
|
ESS20 | 20 | 20mm/0,79" | 21mm/0,83" | 2,5bar/36,25psi | 19mm/0,75" | 25mm/0,98" | 0,1kg/0,22lbs |
|
|
ESS25 | 25 | 24mm/0,94" | 25mm/0,98" | 2,5bar/36,25psi | 23mm/0,90" | 25mm/0,98" | 0,1kg/0,22lbs |
|
|
ESS30 | 30 | 30mm/1,18" | 32mm/1,26" | 2,5bar/36,25psi | 29mm/1,14" | 30mm/1,18" | 0,15kg/0,33lbs |
|
|
ESS40 | 40 | 38mm/1,5" | 42mm/1,65" | 2,5bar/36,25psi | 37mm/1,46" | 40mm/1,57" | 0,15kg/0,33lbs |
|
|
ESS50 | 50 | 48mm/1,89" | 54mm/2,13" | 2,5bar/36,25psi | 45mm/1,77" | 75mm/2,95" | 0,25kg/0,55lbs |
|
|
ESS60 | 60 | 59mm/2,32" | 65mm/2,56" | 2,5bar/36,25psi | 58mm/2,28" | 90mm/3,54" | 0,35kg/0,77lbs |
|
|
ESS75 | 75 | 72mm/2,83" | 78mm/3,07" | 2,5bar/36,25psi | 69mm/2,72" | 110mm/4,33" | 0,45kg/0,99lbs |
|
|
ESS100 | 100 | 90mm/3,54" | 105mm/4,13" | 2,5bar/36,25psi | 88mm/3,46" | 150mm/5,91" | 0,6kg/1,32lbs |
|
|
ESS150 | 150 | 150mm/5,91" | 150mm/5,91" | 2,5bar/36,25psi | 90mm/3,54" | 150mm/5,91" | 1,1kg/2,43lbs |
|
|
ESS200 | 200 | 200mm/7,87" | 200mm/7,87" | 2,5bar/36,25psi | 138mm/5,43" | 200mm/7,87" | 1,6kg/3,53lbs |
|
|
ESS225 | 225 | 225mm/8,85" | 225mm/8,85" | 2,5bar/36,25psi | 180mm/7,09" | 250mm/9,84" | 2,2kg/4,85lbs |
|
|
ESS250 | 250 | 250mm/9,84" | 250mm/9,84" | 2,5bar/36,25psi | 180mm/7,09" | 250mm/9,84" | 2,2kg/4,85lbs |
|
|
ESS300 | 300 | 300mm/11,81" | 300mm/11,81" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 3,5kg/7,72lbs |
|
|
ESS350 | 350 | 350mm/13,77" | 350mm/13,77" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 3,7kg/8,16lbs |
|
|
ESS400 | 400 | 400mm/15,75" | 400mm/15,75" | 2,5bar/36,25psi | 380mm/14,96" | 450mm/17,72" | 4,4kg/9,7lbs |
|
|
ESS500 | 500 | 500mm/19,69" | 500mm/19,69" | 2,5bar/36,25psi | 485mm/19,09" | 450mm/17,72" | 5,5kg/12,13lbs |
|
|
ESS600 | 600 | 600mm/23,62" | 600mm/23,62" | 2,5bar/36,25psi | 585mm/23,03" | 450mm/17,72" | 6,3kg/13,89lbs |
|
|
ESS800 | 800 | 800mm/31,5" | 800mm/31,5" | 2,5bar/36,25psi | 780mm/30,71" | 800mm/31,5" | 25,0kg/55,12lbs |
|
|
ESS2030 | 20-30 | 20mm/0,79" | 30mm/1,18" | 2,5bar/36,25psi | 18mm/0,71" | 100mm/3,94" | 0,12kg/0,26lbs |
|
|
ESS3040 | 30-40 | 30mm/1,18" | 40mm/1,57" | 2,5bar/36,25psi | 29mm/1,14" | 100mm/3,94" | 0,16kg/0,35lbs |
|
|
ESS3050 | 30-50 | 30mm/1,18" | 50mm/1,97" | 2,5bar/36,25psi | 29mm/1,14" | 100mm/3,94" | 0,18kg/0,4lbs |
|
|
ESS4050 | 40-50 | 40mm/1,57" | 50mm/1,97" | 2,5bar/36,25psi | 38mm/1,50" | 100mm/3,94" | 0,18kg/0,4lbs |
|
|
ESS5075 | 50-75 | 50mm/1,97" | 75mm/2,95" | 2,5bar/36,25psi | 45mm/1,77" | 100mm/3,94" | 0,3kg/0,66lbs |
|
|
ESS70100 | 70-100 | 70mm/2,76" | 100mm/3,94" | 2,5bar/36,25psi | 65mm/2,56" | 100mm/3,94" | 0,4kg/0,88lbs |
|
|
ESS100150 | 100-150 | 90mm/3,54" | 155mm/6,1" | 2,5bar/36,25psi | 88mm/3,46" | 150mm/5,91" | 0,75kg/1,65lbs |
|
|
ESS150200 | 150-200 | 150mm/5,91" | 200mm/7,87" | 2,5bar/36,25psi | 138mm/5,43" | 200mm/7,87" | 1,1kg/2,43lbs |
|
|
ESS200250 | 200-250 | 200mm/7,87" | 250mm/9,84" | 2,5bar/36,25psi | 180mm/7,09" | 250mm/9,84" | 1,6kg/3,53lbs |
|
|
ESS250300 | 250-300 | 250mm/9,84" | 300mm/11,81" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 2,2kg/4,85lbs |
|
|
ESS300350 | 300-350 | 300mm/11,81" | 350mm/13,78" | 2,5bar/36,25psi | 380mm/14,96" | 300mm/11,81" | 3,5kg/7,71lbs |
|
|
ESS400450 | 400-450 | 400mm/15,75" | 450mm/17,72" | 2,5bar/36,25psi | 380mm/14,96" | 450mm/17,72" | 4,2kg/9,26lbs |
|
|
ESS500550 | 500-550 | 500mm/19,69" | 550mm/21,65" | 2,5bar/36,25psi | 480mm/18,90" | 450mm/17,72" | 5,4kg/11,90lbs |
|
|
ESS600650 | 600-650 | 600mm/23,62" | 650mm/25,59" | 2,5bar/36,25psi | 580mm/22,83" | 450mm/17,72" | 6,5kg/14,32lbs |
|
|
ESS8001000 | 800-1000 | 800mm/31,50" | 1000mm/39,37" | 2,5bar/36,25psi | 780mm/30,71" | 800mm/31,5" | 27,0kg/59,50lbs |
