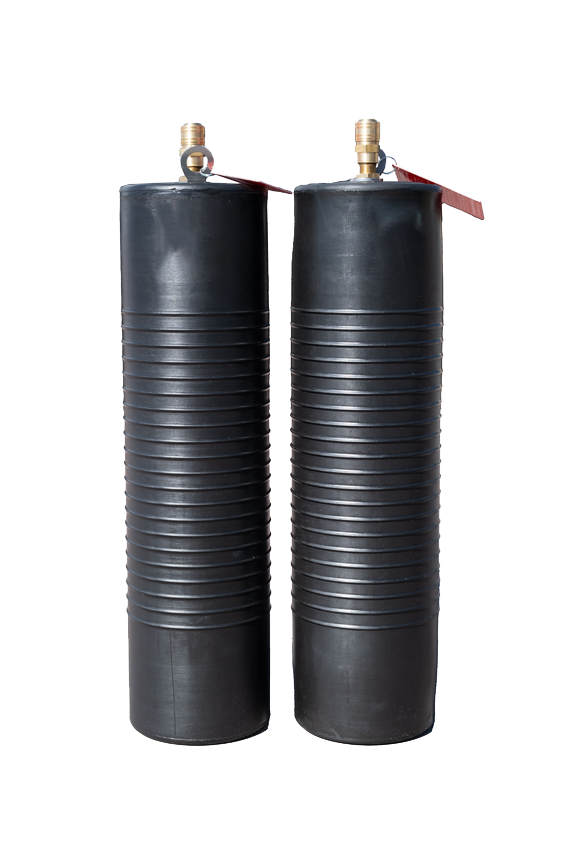

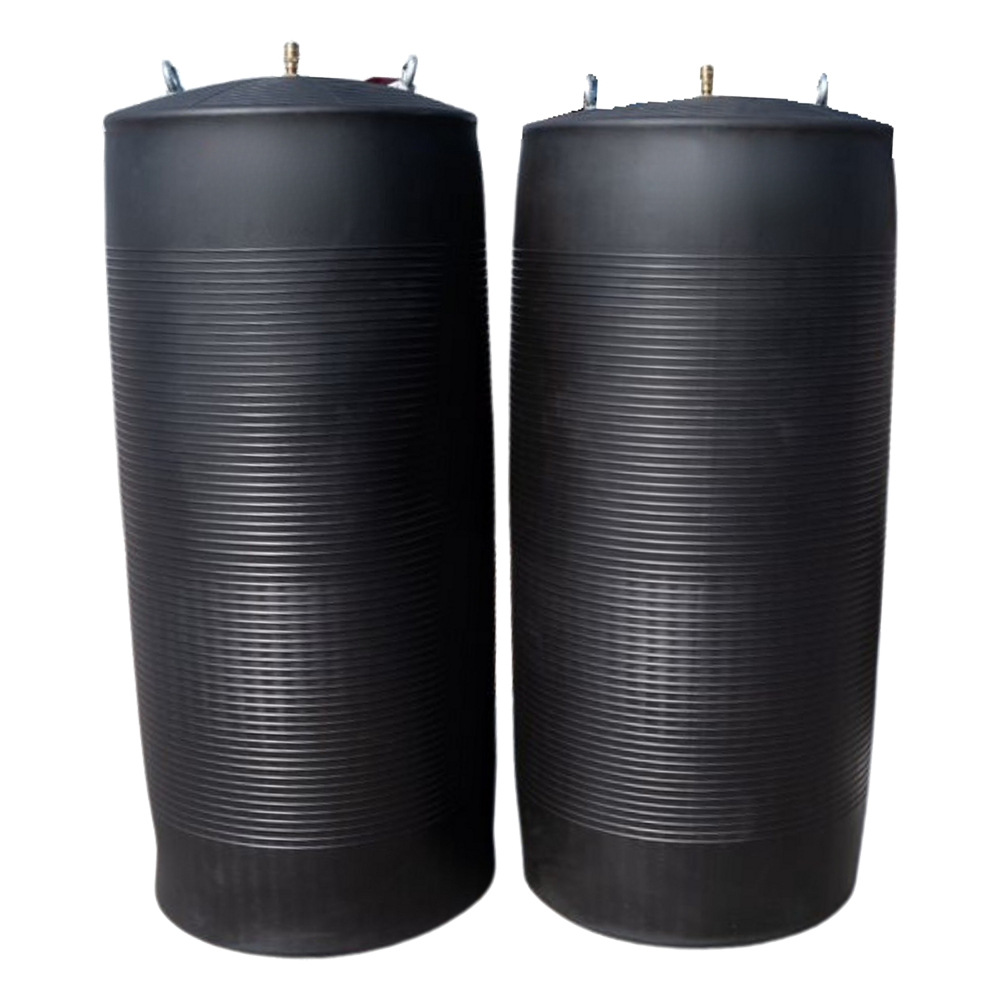

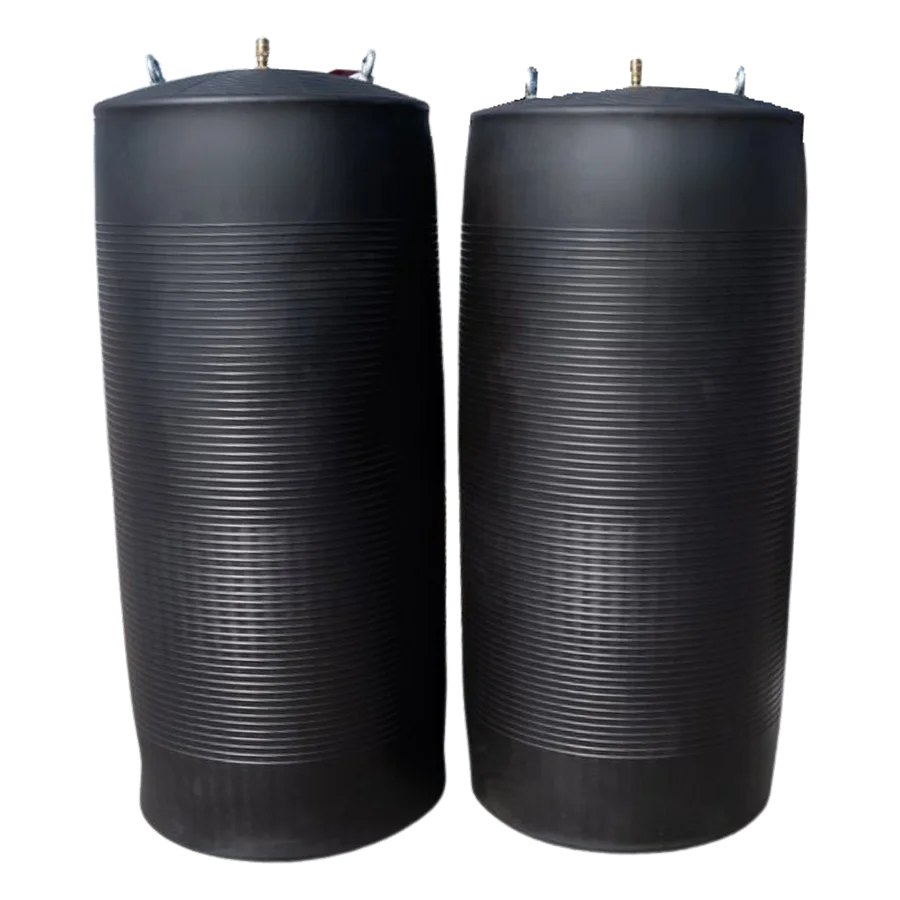

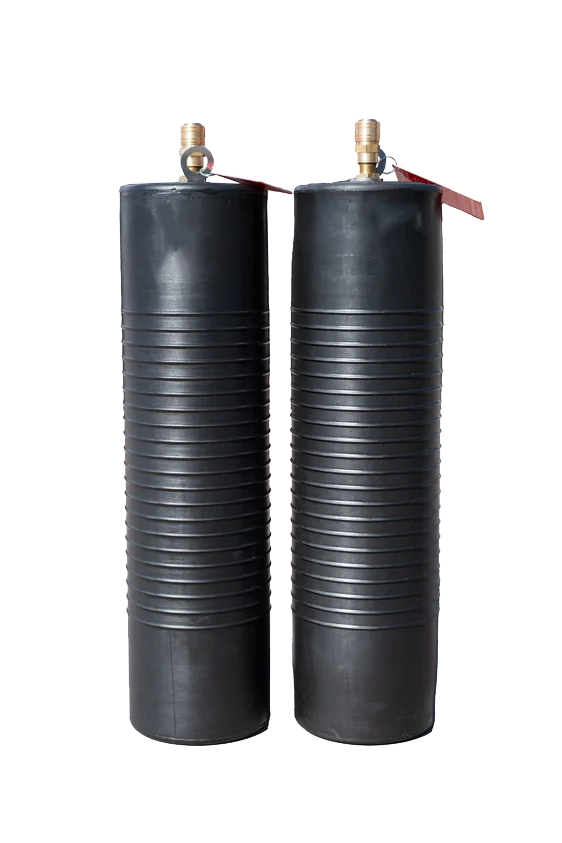

Inflatable Pipe Stoppers
Ensure the reliable sealing of your piping systems with Inflatable Pipe Stoppers. These long-lasting inflatable stoppers are made of high-quality rubber reinforced with fabric and are suitable for pipe diameters ranging from 50mm to 4200mm. They are designed to withstand temperatures ranging from -40 °C to 70 °C and standard working pressures of 1.5 bar and 2.5 bar with an overpressure value of operating. This is the perfect solution to prevent the ingress of liquids, gases, construction waste, dust, rats, and rodents into your piping system.
Features:
- Designed to fit pipe diameters ranging from 50mm to 4200mm
- Suitable for temperatures ranging from -40°C to 70°C
- Reinforced with high-quality special rubber fabric
- Standard working pressures of 1.5 bar and 2.5 bar
Request a free quote
Tell us the sizes and quantities you need for Inflatable Pipe Stoppers and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia.to be tested(mm/inch) | Max. Pipe Inner Dia. to be tested(mm/inch) | Max. Working Pressure(bar/psi) | Back Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| ES50100/1,5 | 50-100 | 45mm/1,77" | 100mm/3,93" | 1,5bar/21,75psi | 0,5bar/7,25psi | 45mm/1,77" | 330mm/12,99" | 0,4kg/0,88Ibs | |
| ES70150/1,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 1,5bar/21,75psi | 0,5bar/7,25psi | 64mm/2,51" | 370mm/14,56" | 0,6kg/1,32Ibs | |
| ES100200/1,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 1,5bar/21,75psi | 0,5bar/7,25psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| ES150300/1,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 1,5bar/21,75psi | 0,5bar/7,25psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs | |
| ES200400/1,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 1,5bar/21,75psi | 0,5bar/7,25psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs | |
| ES200500/1,5 | 200-500 | 200mm/7,87" | 500mm/19,68" | 1,5bar/21,75psi | 0,5bar/7,25psi | 185mm/7,28" | 800mm/31,49" | 3,7kg/8,15Ibs | |
| ES300600/1,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 0,5bar/7,25psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs | |
| ES375750/1,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 1,5bar/21,75psi | 0,5bar/7,25psi | 360mm/14,17" | 1000mm/39,37" | 9,4kg/20,72Ibs | |
| ES5001000/1,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 1,5bar/21,75psi | 0,5bar/7,25psi | 485mm/19,09" | 1150mm/45,27" | 21,3kg/46,95Ibs | |
| ES6001200/1,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 1,5bar/21,75psi | 0,5bar/7,25psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs | |
| ES5001200/1,5 | 500-1200 | 500mm/19,68" | 1200mm/47,24" | 1,5bar/21,75psi | 0,5bar/7,25psi | 485mm/19,09" | 1400mm/55,11" | 28,0kg/61,72Ibs | |
| ES5001400/1,5 | 500-1400 | 500mm/19,68" | 1400mm/55,11" | 1,5bar/21,75psi | 0,5bar/7,25psi | 485mm/19,09" | 1900mm/74,80" | 35,5kg/78,26Ibs | |
| ES6001600/1,5 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 1,5bar/21,75psi | 0,5bar/7,25psi | 575mm/22,63" | 1900mm/74,80" | 35,5kg/78,26Ibs | |
| ES8001600/1,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 1,5bar/21,75psi | 0,5bar/7,25psi | 780mm/30,70" | 1600mm/62,99" | 46,0kg/101,41Ibs | |
| ES8002000/1,5 | 800-2000 | 800mm/31,49" | 2000mm/78,74" | 1,5bar/21,75psi | 0,5bar/7,25psi | 780mm/30,70" | 3200mm/125,98" | 75,0kg/165,34Ibs | |
| ES8002200/1,5 | 800-2200 | 800mm/31,49" | 2200mm/86,61" | 1,5bar/21,75psi | 0,5bar/7,25psi | 780mm/30,70" | 3200mm/125,98" | 75,0kg/165,34Ibs | |
| ES12002400/1,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 1,5bar/21,75psi | 0,5bar/7,25psi | 1180mm/46,45” | 3000mm/118,11” | 170,0kg/374,68lbs | |
| ES12002800/1,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23" | 1,5bar/21,75psi | 0,5bar/7,25psi | 1180mm/46,45” | 4000mm/157,48" | 205,0kg/451,82lbs | |
| ES18003600/1,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 1,5bar/21,75psi | 0,5bar/7,25psi | 1780mm/70,08" | 4000mm/157,48" | 400,0kg/881,83lbs | |
| ES18004200/1,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 1,5bar/21,75psi | 0,5bar/7,25psi | 1780mm/70,08" | 6000mm/236,22" | 500,0kg/1102,0lbs |
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia.to be tested(mm/inch) | Max. Pipe Inner Dia. to be tested(mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| ES2040/2,5 | 20-40 | 20mm/0,78" | 40mm/1,57" | 2,5bar/36,25psi | 1,0bar/14,50psi | 18mm/0,70" | 100mm/3,93" | 0,12kg/0,26lbs | |
| ES2550/2,5 | 25-50 | 25mm/0,98" | 50mm/1,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 22mm/0,86" | 110mm/4,33" | 0,5kg/1,1lbs | |
| ES3570/2,5 | 35-70 | 35mm/1,37" | 70mm/2,75" | 2,5bar/36,25psi | 1,0bar/14,50psi | 33mm/1,29" | 300mm/11,81" | 0,2kg/0,44Ibs | |
| ES50100/2,5 | 50-100 | 50mm/1,96" | 100mm/3,93" | 2,5bar/36,25psi | 1,0bar/14,50psi | 45mm/1,77" | 330mm/12,99" | 0,4kg/0,88Ibs | |
| ES70150/2,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 2,5bar/36,25psi | 1,0bar/14,50psi | 64mm/2,51" | 370mm/14,56" | 0,6kg/1,32Ibs | |
| ES100200/2,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 2,5bar/36,25psi | 1,0bar/14,50psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| ES150300/2,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 2,5bar/36,25psi | 1,0bar/14,50psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs | |
| ES200400/2,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 2,5bar/36,25psi | 1,0bar/14,50psi | 185mm/7,28" | 650mm/25,59" | 3,6kg/7,93Ibs | |
| ES200500/2,5 | 200-500 | 200mm/7,87" | 500mm/19,68" | 2,5bar/36,25psi | 1,0bar/14,50psi | 185mm/7,28" | 800mm/31,49" | 3,9kg/8,58lbs | |
| ES300600/2,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 2,5bar/36,25psi | 1,0bar/14,50psi | 285mm/11,22" | 850mm/33,46" | 7,0kg/15,43Ibs | |
| ES375750/2,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 2,5bar/36,25psi | 1,0bar/14,50psi | 360mm/14,17" | 1000mm/39,37" | 9,7kg/21,38Ibs | |
| ES500800/2,5 | 500-800 | 500mm/19,68" | 800mm/31,49" | 2,5bar/36,25psi | 1,0bar/14,50psi | 485mm/19,09" | 1000mm/39,37" | 21,0kg/46,29Ibs | |
| ES5001000/2,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 2,5bar/36,25psi | 1,0bar/14,50psi | 485mm/19,09" | 1150mm/45,27" | 22,0kg/48,50Ibs | |
| ES6001200/2,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 2,5bar/36,25psi | 1,0bar/14,50psi | 585mm/23,03" | 1300mm/51,18" | 26,0kg/57,32Ibs | |
| ES5001400/2,5 | 500-1400 | 500mm/19,68" | 1400mm/55,11" | 2,5bar/36,25psi | 1,0bar/14,50psi | 485mm/19,09" | 1900mm/74,80" | 35,0kg/77,16Ibs | |
| ES8001600/2,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 2,5bar/36,25psi | 1,0bar/14,50psi | 780mm/30,70" | 1800mm/70,86" | 35,0kg/77,16Ibs | |
| ES12002400/2,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 2,5bar/36,25psi | 1,0bar/14,50psi | 1180mm/46,45” | 3000mm/118,11” | 240,0kg/528,96lbs | |
| ES12002800/2,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23" | 2,5bar/36,25psi | 1,0bar/14,50psi | 1180mm/46,45” | 4000mm/157,48" | 280,0kg/617,12lbs | |
| ES18003600/2,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 2,5bar/36,25psi | 1,0bar/14,50psi | 1780mm/70,08" | 4000mm/157,48" | 420,0kg/925,68lbs | |
| ES18004200/2,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 2,5bar/36,25psi | 1,0bar/14,50psi | 1780mm/70,08" | 6000mm/236,22" | 530,0kg/1168,12lbs |
40 sizes across 2 pressure classes.Go to quote list
