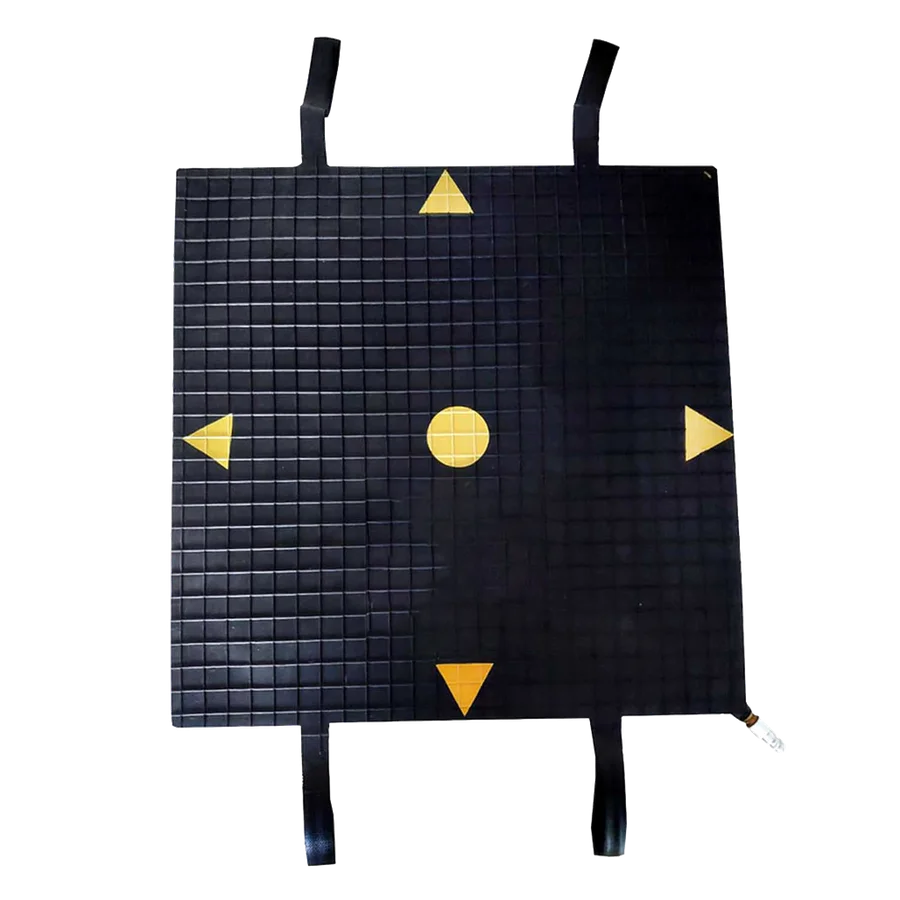

Inflatable Lifting Bags
Our Inflatable Lifting Bags are specially designed and manufactured to safely and accurately lift, move, spread, and fix heavy loads to the next level. These inflatable lifting bags are made of high-quality rubber and filled with air pressure to ensure easy lifting of heavy loads. With their non-slip interlocking design, they provide optimum stability when stacking and are ideal for a wide range of applications, including military processes, natural disasters, and vehicle maintenance.
Features:
- Made of high-quality rubber, lightweight, extremely flat, very strong and durable
- Non-slip interlocking design for optimum stability when stacking
- Pillow/ cushion type lifting bags are ideal for lifting heavy loads during natural disasters, releasing trapped people in accidents, and assembling and relocating pipelines
- Available in 12 sizes with lifting capacities from 1 to 76 tons
- Maximum working pressure of 8 bar and test pressure of 12 bar
- Thickness of 22mm and impact pressures of over 32 bar
- Transport and handling facilitated by handles
- Can be inflated with different air sources like compressed air cylinders, pedal or hand pump for small models, and internal industrial compressors for bigger models
- Mine approval and custom production options available
Request a free quote
Tell us the sizes and quantities you need for Inflatable Lifting Bags and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product Code | Max. Lifting Thrust(t) | Max. Lifting Heigth(mm) | Wide(mm) | Length Size(mm) | Weight(kg) | Air Requiment(lt) | Inflation Time(sec) | Working Pressure(bar/psi) | Handless |
|---|---|---|---|---|---|---|---|---|---|---|
| ELB170 | 1,7t | 75mm/2,95" | 140mm/5,51" | 140mm/5,51" | 0,4kg/0,88lbs | 2,9 | 0,5 | 12bar/174,04psi | X | |
| ELB520 | 5,2t | 100mm/3,93" | 260mm/10,23" | 260mm/10,23" | 1,0kg/2,2lbs | 15,5 | 1,3 | 12bar/174,04psi | X | |
| ELB940 | 9,4t | 170mm/6,69" | 300mm/11,81 | 300mm/11,81 | 2,0kg/4,4lbs | 40 | 2 | 12bar/174,04psi | 4 | |
| ELB1550 | 15,5t | 210mm/8,26" | 380mm/14,96" | 380mm/14,96" | 3,8kg/8,37lbs | 85 | 5 | 12bar/174,04psi | 4 | |
| ELB1940 | 19,4t | 170mm/6,69" | 300mm/11,81 | 300mm/11,81 | 4,0kg/8,82lbs | 115 | 8 | 12bar/174,04psi | 4 | |
| ELB2760 | 27,6t | 290mm/11,4" | 500mm/19,68" | 500mm/19,68" | 6,4kg/14,1lbs | 198 | 12 | 12bar/174,04psi | 4 | |
| ELB3640 | 36,4t | 200mm/7,87" | 330mm/12,99" | 330mm/12,99" | 9,1kg/20,05lbs | 215 | 12 | 12bar/174,04psi | 4 | |
| ELB4030 | 40,3t | 360mm/14,17" | 600mm/23,62" | 600mm/23,62" | 9,8kg/21,59lbs | 380 | 20 | 12bar/174,04psi | 4 | |
| ELB5540 | 55,4t | 420mm/16,53" | 700mm/27,56" | 700mm/27,56" | 13,5kg/29,75lbs | 630 | 30 | 12bar/174,04psi | 4 | |
| ELB7300 | 73t | 470mm/18,5" | 800mm/31,49" | 800mm/31,49" | 17,8kg/39,23lbs | 945 | 53 | 12bar/174,04psi | 4 | |
| ELB9300 | 93t | 500mm/19,68" | 900mm/35,43" | 900mm/35,43" | 21,0kg/46,28lbs | 1450 | 70 | 12bar/174,04psi | 4 | |
| ELB11500 | 115t | 590mm/23,23" | 1000mm/39,37" | 1000mm/39,37" | 24,5kg/53,99lbs | 1580 | 90 | 12bar/174,04psi | 4 |
| Qty | Product Code | Max. Lifting Thrust(t) | Max. Lifting Heigth(mm/inch) | Wide(mm/inch) | Length Size(mm/inch) | Weight(kg/lbs) | Air Requiment(lt) | Inflation Time(sec) | Working Pressure(bar/psi) | Handless |
|---|---|---|---|---|---|---|---|---|---|---|
| ELB115 | 1,15t | 75mm/2,95" | 140mm/5,51" | 140mm/5,51" | 0,4kg/0,88lbs | 2,9 | 0,5 | 8bar/116,03psi | X | |
| ELB350 | 3,5t | 100mm/3,93" | 260mm/10,23" | 260mm/10,23" | 1,0kg/2,2lbs | 15,5 | 1,3 | 8bar/116,03psi | X | |
| ELB620 | 6,2t | 170mm/6,69" | 300mm/11,81 | 300mm/11,81 | 2,0kg/4,4lbs | 40 | 2 | 8bar/116,03psi | 4 | |
| ELB1030 | 10,3t | 210mm/8,26" | 380mm/14,96" | 380mm/14,96" | 3,8kg/8,37lbs | 85 | 5 | 8bar/116,03psi | 4 | |
| ELB1300 | 13t | 170mm/6,69" | 300mm/11,81 | 300mm/11,81 | 4,0kg/8,82lbs | 115 | 8 | 8bar/116,03psi | 4 | |
| ELB1840 | 18,4t | 290mm/11,4" | 500mm/19,68" | 500mm/19,68" | 6,4kg/14,1lbs | 198 | 12 | 8bar/116,03psi | 4 | |
| ELB2430 | 24,3t | 200mm/7,87" | 330mm/12,99" | 330mm/12,99" | 9,1kg/20,05lbs | 215 | 12 | 8bar/116,03psi | 4 | |
| ELB2700 | 27t | 360mm/14,17" | 600mm/23,62" | 600mm/23,62" | 9,8kg/21,59lbs | 380 | 20 | 8bar/116,03psi | 4 | |
| ELB3700 | 37t | 420mm/16,53" | 700mm/27,56" | 700mm/27,56" | 13,5kg/29,75lbs | 630 | 30 | 8bar/116,03psi | 4 | |
| ELB4870 | 48,7t | 470mm/18,5" | 800mm/31,49" | 800mm/31,49" | 17,8kg/39,23lbs | 945 | 53 | 8bar/116,03psi | 4 | |
| ELB6200 | 62t | 500mm/19,68" | 900mm/35,43" | 900mm/35,43" | 21,0kg/46,28lbs | 1450 | 70 | 8bar/116,03psi | 4 | |
| ELB7680 | 76,8t | 590mm/23,23" | 1000mm/39,37" | 1000mm/39,37" | 24,5kg/53,99lbs | 1580 | 90 | 8bar/116,03psi | 4 |
24 sizes across 2 pressure classes.Go to quote list
