Inflatable High Pressure Pipe Stoppers

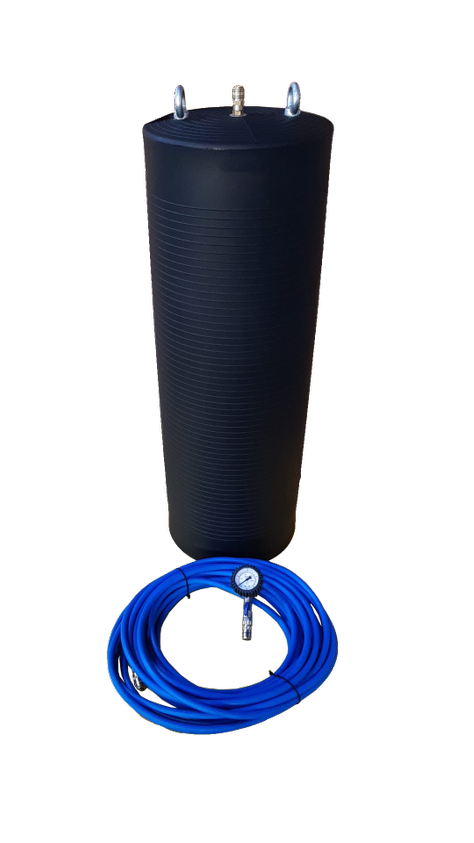

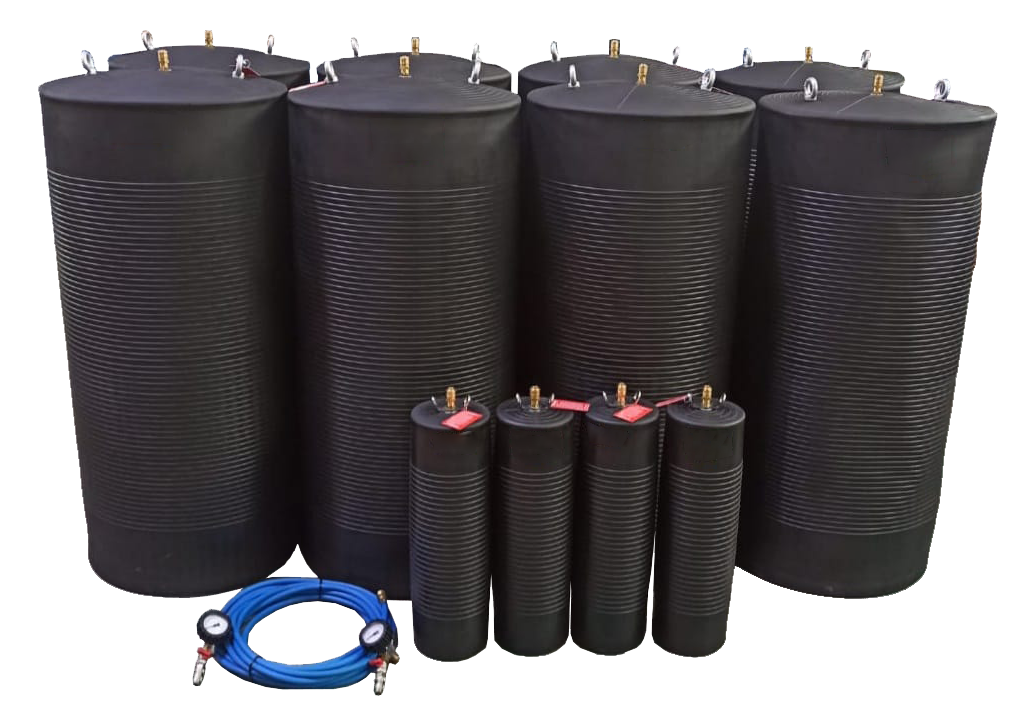

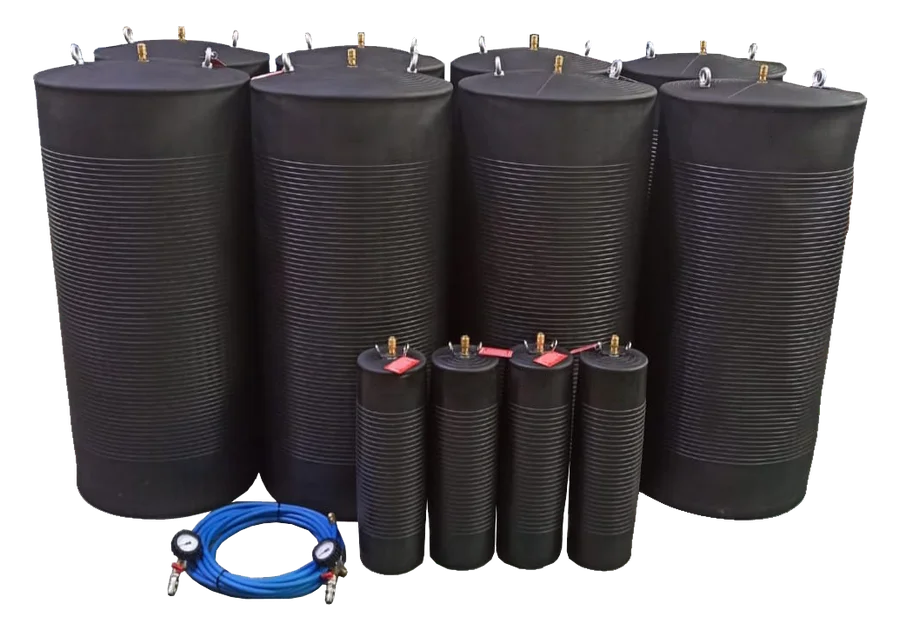

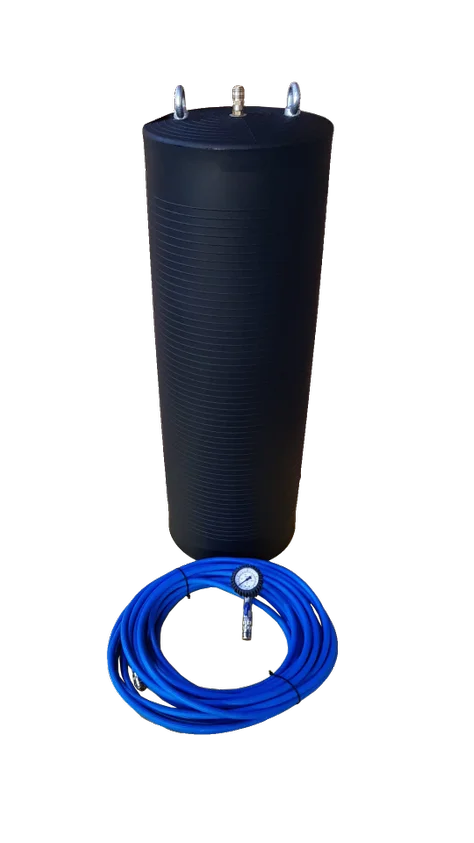

Inflatable High Pressure Pipe Stoppers provide a reliable sealing solution for high-pressure applications. With Kevlar reinforcement, they can handle higher working and back pressures, and a diameter range of 50mm to 2000mm, they're suitable for a wide range of applications. The operating pressures of 6 bar and 12 bar ensure that they can handle any high-pressure application. These stoppers are ideal for blocking and sealing drainage systems, pipelines, sewers, and gutters.
Features:
- Kevlar reinforcement for higher working and back pressures
- Diameter range from 50mm to 2000mm
- Operating pressures of 6 bar and 12 bar
- Suitable for blocking and sealing drainage systems, pipelines, sewers, and gutters
Request a free quote
Tell us the sizes and quantities you need for Inflatable High Pressure Pipe Stoppers and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
- INFLATABLE HIGH PRESSURE PIPE STOPPERS (12,0 BAR/174,04 PSI)
- INFLATABLE HIGH PRESSURE PIPE STOPPERS (6,0 BAR/87,02 PSI)
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| EHS50 | 50 | 50mm/1,97 | 50mm/1,97 | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 280mm/11,02" | 0,4kg/0,88lbs | |
| EHS70 | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 65mm/2,51" | 320mm/12,60" | 0,6kg/1,32lbs | |
| EHS100 | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| EHS125 | 125 | 125mm/4,92" | 125mm/4,92" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| EHS150 | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs | |
| EHS200 | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs | |
| EHS250 | 250 | 250mm/9,84" | 250mm/9,84" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs | |
| EHS300 | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs | |
| EHS350 | 350 | 350mm/13,78" | 350mm/13,78" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs | |
| EHS400 | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs | |
| EHS450 | 450 | 450mm/17,72" | 450mm/17,72" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs | |
| EHS500 | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs | |
| EHS600 | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs | |
| EHS650 | 650 | 650mm/25,59" | 650mm/25,59" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs | |
| EHS700 | 700 | 700mm/27,56" | 700mm/27,56" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs | |
| EHS800 | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs | |
| EHS1200 | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs | |
| EHS1800 | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|
| EHS5070 | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 280mm/11,02" | 0,4kg/0,88lbs | |
| EHS70100 | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 65mm/2,51" | 320mm/12,0" | 0,6kg/1,32lbs | |
| EHS100150 | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs | |
| EHS150200 | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs | |
| EHS200300 | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs | |
| EHS300400 | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs | |
| EHS375500 | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 380mm/14,96" | 1000mm/39,37" | 9,4kg/20,72Ibs | |
| EHS500600 | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs | |
| EHS600700 | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs | |
| EHS8001000 | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs | |
| EHS12001400 | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs | |
| EHS18002000 | 1800-2000 | 1800mm/70,86" | 2000mm/78,74 | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
30 sizes across 2 pressure classes.Go to quote list
