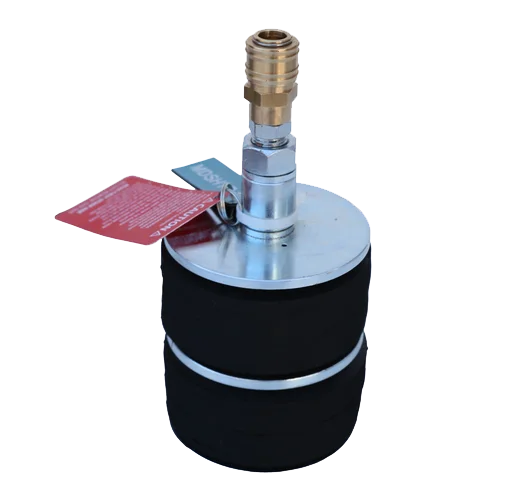

The High Pressure Double Seal Pipe Plugs are a reliable solution for testing pipes of various diameters. Made from durable Galvanized Steel, these pipe plugs can withstand high back pressure of 12.0 bar and are recommended for use in pipes ranging from 6mm (1/4") to 300mm (12") in diameter. These plugs are capable of functioning at temperatures up to 130 degrees Celsius, making them suitable for use in a wide range of environments.
Features:
| Product Code | Nominal size (mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure (bar/psi) | Tightening Torque(N.m) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EDSH6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 12,0bar/174,0psi | H,T | 78mm/3,07" | 0,1kg/0,22lbs |
|
|
EDSH10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 12,0bar/174,0psi | H,T | 78mm/3,07" | 0,15kg/0,33lbs |
|
|
EDSH12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 12,0bar/174,0psi | H,T | 78mm/3,07" | 0,18kg/0,4lbs |
|
|
EDSH15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 12,0bar/174,0psi | H,T | 98mm/3,86" | 0,2kg/0,44lbs |
|
|
EDSH20 | 20 | 19mm/0,75" | 20mm/0,79" | 19mm/0,75" | 12,0bar/174,0psi | H,T | 98mm/3,86" | 0,2kg/0,44lbs |
|
|
EDSH30 | 30 | 29mm/1,14" | 32mm/1,26" | 27mm/1,06" | 12,0bar/174,0psi | 40 | 112mm/4,41" | 0,3kg/0,66lbs |
|
|
EDSH38 | 38 | 37mm/1,46" | 40mm/1,57" | 35mm/1,38" | 12,0bar/174,0psi | 50 | 114mm/4,49" | 0,4kg/0,88lbs |
|
|
EDSH50 | 50 | 49mm/1,93" | 51mm/2,01" | 47mm/1,85" | 12,0bar/174,0psi | 60 | 137mm/5,39" | 0,5kg/1,1lbs |
|
|
EDSH60 | 60 | 58mm/2,28" | 61mm/2,4" | 57mm/2,24" | 12,0bar/174,0psi | 60 | 157mm/6,18" | 0,8kg/1,76lbs |
|
|
EDSH75 | 75 | 74mm/2,91" | 77mm/3,03" | 72mm/2,83" | 12,0bar/174,0psi | 85 | 162mm/6,38" | 1,5kg/3,31lbs |
|
|
EDSH100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 10,0bar/145,0psi | 150 | 162mm/6,38" | 2,0kg/4,41lbs |
|
|
EDSH125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 8,0bar/116,0psi | 180 | 162mm/6,38" | 2,5kg/5,51lbs |
|
|
EDSH150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 6,0bar/87,0psi | 200 | 165mm/6,5" | 3,0kg/6,61lbs |
|
|
EDSH200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 6,0bar/87,0psi | 200 | 165mm/6,5" | 5,0kg/11,02lbs |
|
|
EDSH250 | 250 | 247mm/9,72" | 252mm/9,92" | 245mm/9,65" | 5,0bar/72,5psi | 200 | 168mm/6,61" | 7,0kg/15,43lbs |
|
|
EDSH300 | 300 | 297mm/11,69" | 302mm/11,89" | 295mm/11,61" | 4,0bar/58,0psi | 200 | 168mm/6,61" | 9,0kg/19,84lbs |
