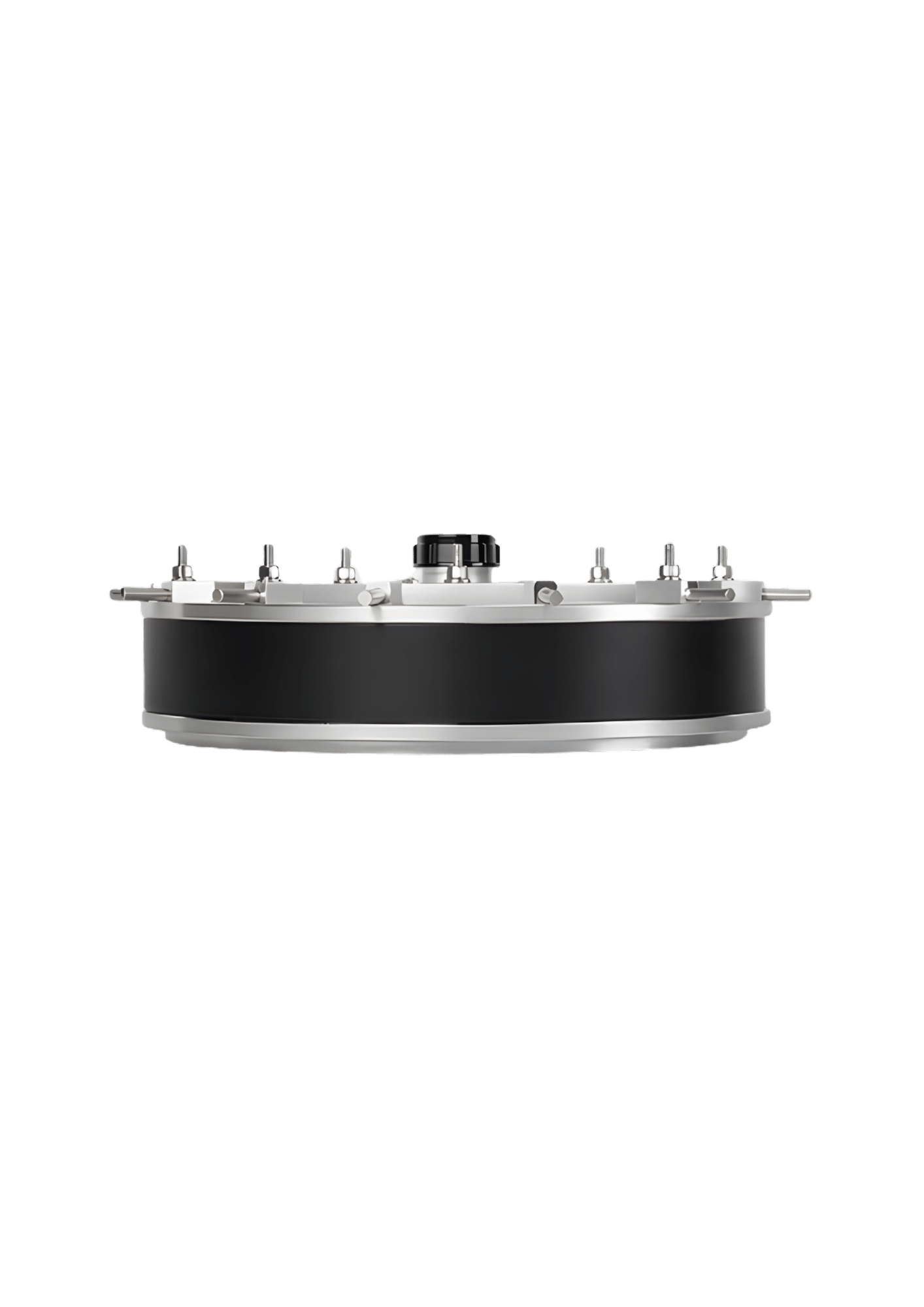

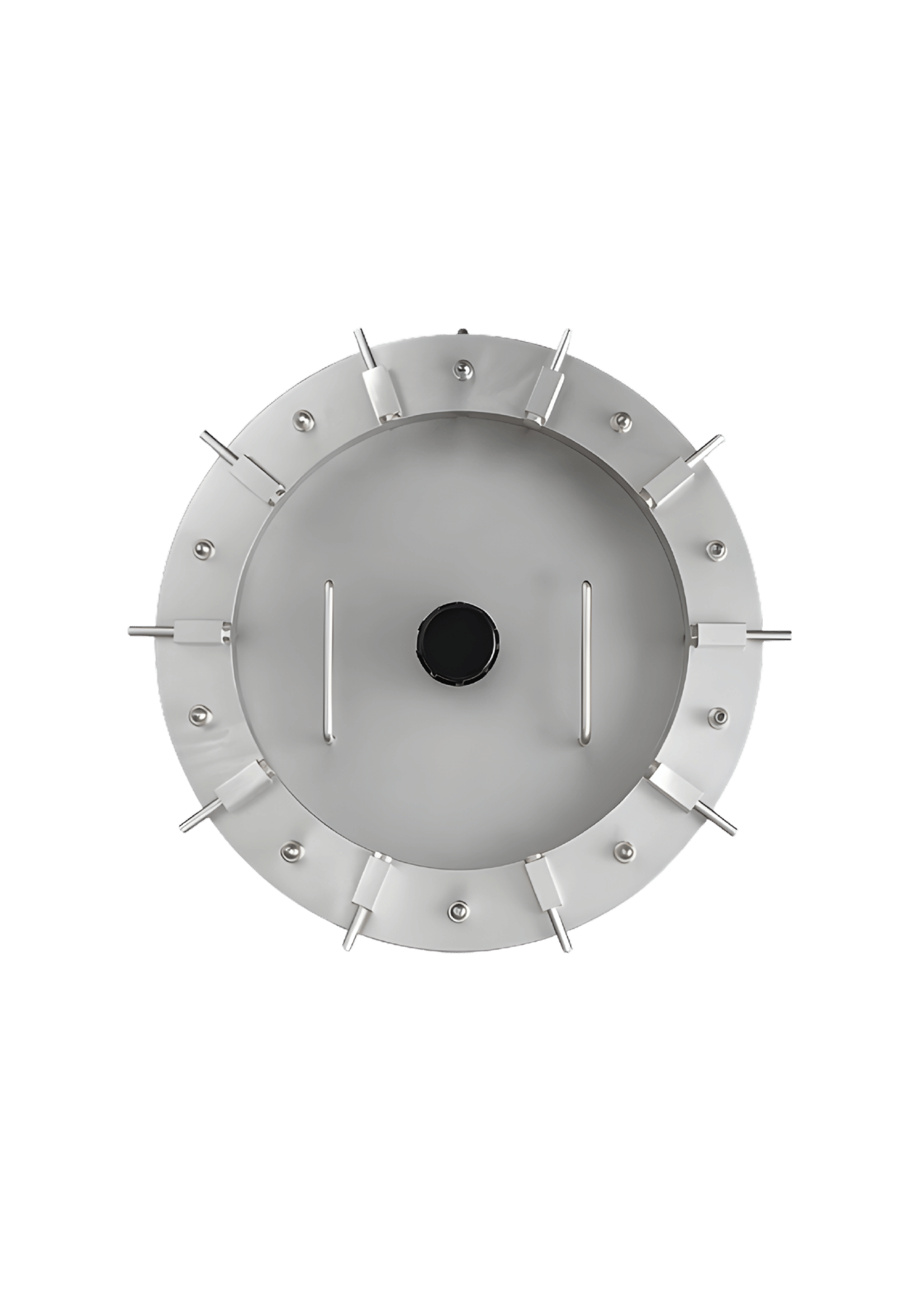

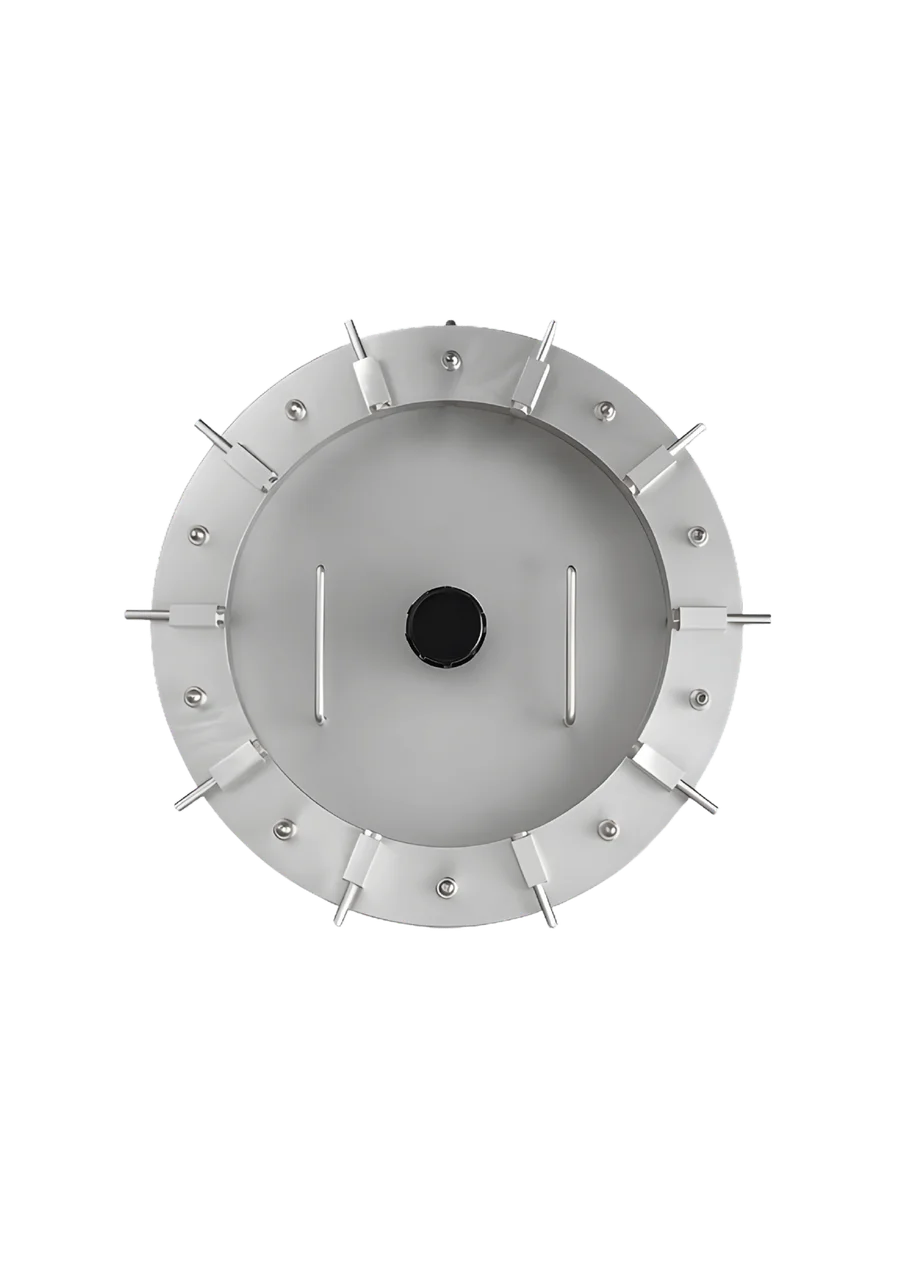

High Pressure Aluminum Tensioner Pipe Test Plugs
High Pressure Aluminum Tensioner Pipe Test Plugs are designed for drain tests, sewerage tests, waste tests, and other test applications. With over-average cohesive friction and multiple compression points, they offer a strong seal and are equipped with a bypass for diverting liquid flow in the pipe. These plugs are highly valued by water system organizations, construction industry, civil engineering, rescue, and fire brigades.
Features:
- Equipped with a bypass for diverting liquid flow
- Multiple compression points and tensions around the perimeter for a strong seal
- Eliminates the need to weld/cut the opposite end of the pipe
- Made of lightweight and durable aluminum plates
- Easy to install and suitable for temperatures up to 100°C
- Available in diameters ranging from 200mm to 1500mm, with different sizes available upon request
- Supplied to order with a chemical, oil, and gas-resistant NBR gasket
- Can withstand high back pressure requirements of up to 6 bar, with higher pressure options available if needed
Request a free quote
Tell us the sizes and quantities you need for High Pressure Aluminum Tensioner Pipe Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Back Pressure(bar/psi) | Bypass Diameter (mm/inch) | Product diameter (mm/inch) | Product Length (mm/inch) | Product Weight (kg/lbs) |
|---|---|---|---|---|---|---|---|---|---|
| EATT200 | 200 | 193mm/7,6" | 206mm/8,11" | 6,0bar/87,02psi | 12,70mm/1/2" | 192mm/7,56" | 80mm/3,15" | 5,7kg/12,57lbs | |
| EATT250 | 250 | 244mm/9,61" | 257mm/10,12" | 6,0bar/87,02psi | 12,70mm/1/2" | 242mm/9,53" | 80mm/3,15" | 6,8kg/14,99lbs | |
| EATT300 | 300 | 290mm/11,42" | 310mm/12,2" | 6,0bar/87,02psi | 12,70mm/1/2" | 289mm/11,38" | 80mm/3,15" | 10,2kg/22,49lbs | |
| EATT350 | 350 | 345mm/13,58" | 360mm/14,17" | 6,0bar/87,02psi | 12,70mm/1/2" | 342mm/13,46" | 80mm/3,15" | 12,0kg/26,46lbs | |
| EATT400 | 400 | 396mm/15,59" | 412mm/16,22" | 6,0bar/87,02psi | 12,70mm/1/2" | 390mm/15,35" | 80mm/3,15" | 15,0kg/33,07lbs | |
| EATT450 | 450 | 445mm/17,52" | 460mm/18,11" | 6,0bar/87,02psi | 12,70mm/1/2" | 444mm/17,48" | 80mm/3,15" | 18,0kg/39,68lbs | |
| EATT500 | 500 | 490mm/19,29" | 508mm/20,0" | 6,0bar/87,02psi | 12,70mm/1/2" | 489mm/19,25" | 80mm/3,15" | 21,0kg/46,3lbs | |
| EATT550 | 550 | 540mm/21,26" | 560mm/22,05" | 6,0bar/87,02psi | 12,70mm/1/2" | 539mm/21,22" | 80mm/3,15" | 24,0kg/52,91lbs | |
| EATT600 | 600 | 590mm/23,23" | 610mm/24,02" | 6,0bar/87,02psi | 12,70mm/1/2" | 589mm/23,19" | 80mm/3,15" | 29,0kg/63,93lbs | |
| EATT650 | 650 | 640mm/25,2" | 660mm/25,98" | 6,0bar/87,02psi | 12,70mm/1/2" | 639mm/25,16" | 80mm/3,15" | 31,0kg/68,34lbs | |
| EATT700 | 700 | 690mm/27,17" | 710mm/27,95" | 6,0bar/87,02psi | 12,70mm/1/2" | 689mm/27,13" | 80mm/3,15" | 34,0kg/74,95lbs | |
| EATT750 | 750 | 740mm/29,13" | 760mm/29,92" | 6,0bar/87,02psi | 12,70mm/1/2" | 739mm/29,09" | 80mm/3,15" | 38,0kg/83,78lbs | |
| EATT800 | 800 | 790mm/31,1" | 810mm/31,89" | 6,0bar/87,02psi | 12,70mm/1/2" | 789mm/31,06" | 80mm/3,15" | 41,0kg/90,39lbs | |
| EATT850 | 850 | 840mm/33,07" | 860mm/33,86" | 6,0bar/87,02psi | 12,70mm/1/2" | 839mm/33,03" | 80mm/3,15" | 44,0kg/97,0lbs |
14 sizes across 1 pressure class.Go to quote list
