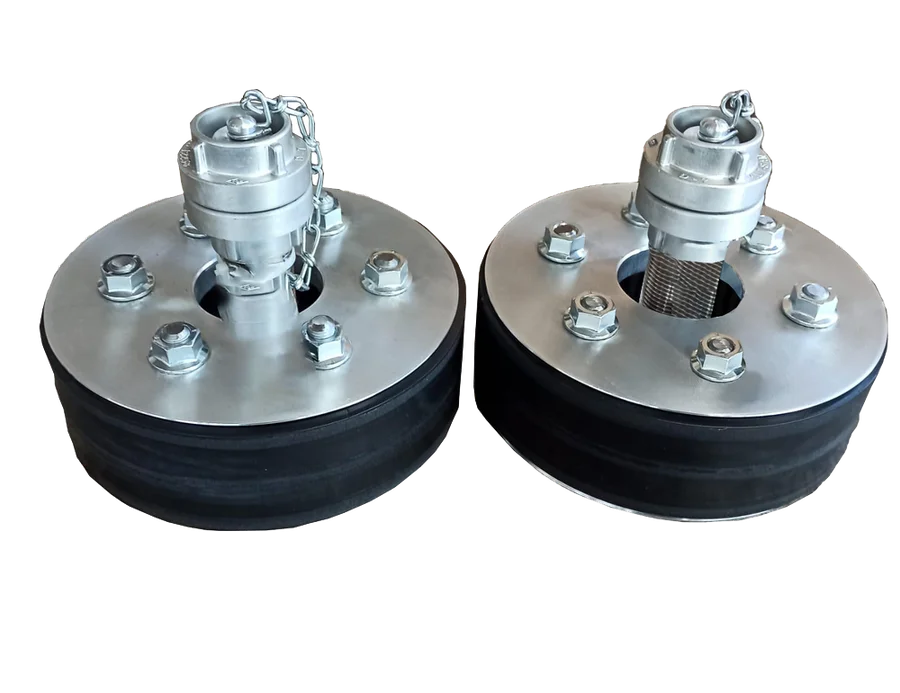

High Pressure Aluminium Pipe Test Plugs
High Pressure Aluminium Pipe Test Plugs are essential tools used for blocking sewer pipes, performing maintenance and repair work, and providing reliable sealing for drainage systems, pipelines, sewers, and gullies. These plugs are designed to withstand high back pressure requirements, making them ideal for hydro-testing pipes with water or air.
Features:
- Made of lightweight and durable aluminum plates
- Easy to install and use at temperatures up to 100°C
- Suitable for hydro-testing pipes with water or air
- Available in diameters ranging from 200mm to 850mm
- Can withstand high back pressure requirements of up to 6 bar, with even higher pressure options available upon request.
Request a free quote
Tell us the sizes and quantities you need for High Pressure Aluminium Pipe Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
| Qty | Product code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Back Pressure(bar/psi) | Bypass Diameter (mm/inch) | Product diameter(mm/inch) | Product Length(mm/inch) | Product Weight(kg/lbs) |
|---|---|---|---|---|---|---|---|---|---|
| EAT200 | 200 | 193mm/7,6" | 206mm/8,11" | 6,0bar/87,02psi | 12,70mm/1/2" | 192mm/7,56" | 80mm/3,15" | 3,8kg/8,38lbs | |
| EAT250 | 250 | 244mm/9,61" | 257mm/10,12" | 6,0bar/87,02psi | 12,70mm/1/2" | 242mm/9,53" | 80mm/3,15" | 4,5kg/9,92lbs | |
| EAT300 | 300 | 290mm/11,42" | 310mm/12,2" | 6,0bar/87,02psi | 12,70mm/1/2" | 289mm/11,38" | 80mm/3,15" | 6,8kg/14,99lbs | |
| EAT350 | 350 | 345mm/13,58" | 360mm/14,17" | 6,0bar/87,02psi | 12,70mm/1/2" | 342mm/13,46" | 80mm/3,15" | 8,0kg/17,64lbs | |
| EAT400 | 400 | 396mm/15,59" | 412mm/16,22" | 6,0bar/87,02psi | 12,70mm/1/2" | 390mm/15,35" | 80mm/3,15" | 10,0kg/22,05lbs | |
| EAT450 | 450 | 445mm/17,52" | 460mm/18,11" | 6,0bar/87,02psi | 12,70mm/1/2" | 444mm/17,48" | 80mm/3,15" | 12,0kg/26,46lbs | |
| EAT500 | 500 | 490mm/19,29" | 508mm/20,0" | 6,0bar/87,02psi | 12,70mm/1/2" | 489mm/19,25" | 80mm/3,15" | 14,0kg/30,86lbs | |
| EAT550 | 550 | 540mm/21,26" | 560mm/22,05" | 6,0bar/87,02psi | 12,70mm/1/2" | 539mm/21,22" | 80mm/3,15" | 16,0kg/35,27lbs | |
| EAT600 | 600 | 590mm/23,23" | 610mm/24,02" | 6,0bar/87,02psi | 12,70mm/1/2" | 589mm/23,19" | 80mm/3,15" | 19,0kg/41,89lbs | |
| EAT650 | 650 | 640mm/25,2" | 660mm/25,98" | 6,0bar/87,02psi | 12,70mm/1/2" | 639mm/25,16" | 80mm/3,15" | 20,7kg/45,64lbs | |
| EAT700 | 700 | 690mm/27,17" | 710mm/27,95" | 6,0bar/87,02psi | 12,70mm/1/2" | 689mm/27,13" | 80mm/3,15" | 22,3kg/49,16lbs | |
| EAT750 | 750 | 740mm/29,13" | 760mm/29,92" | 6,0bar/87,02psi | 12,70mm/1/2" | 739mm/29,09" | 80mm/3,15" | 25,0kg/55,12lbs | |
| EAT800 | 800 | 790mm/31,1" | 810mm/31,89" | 6,0bar/87,02psi | 12,70mm/1/2" | 789mm/31,06" | 80mm/3,15" | 27,0kg/59,52lbs | |
| EAT850 | 850 | 840mm/33,07" | 860mm/33,86" | 6,0bar/87,02psi | 12,70mm/1/2" | 839mm/33,03" | 80mm/3,15" | 27,0kg/59,52lbs |
14 sizes across 1 pressure class.Go to quote list
