Flexible Bypass Packers

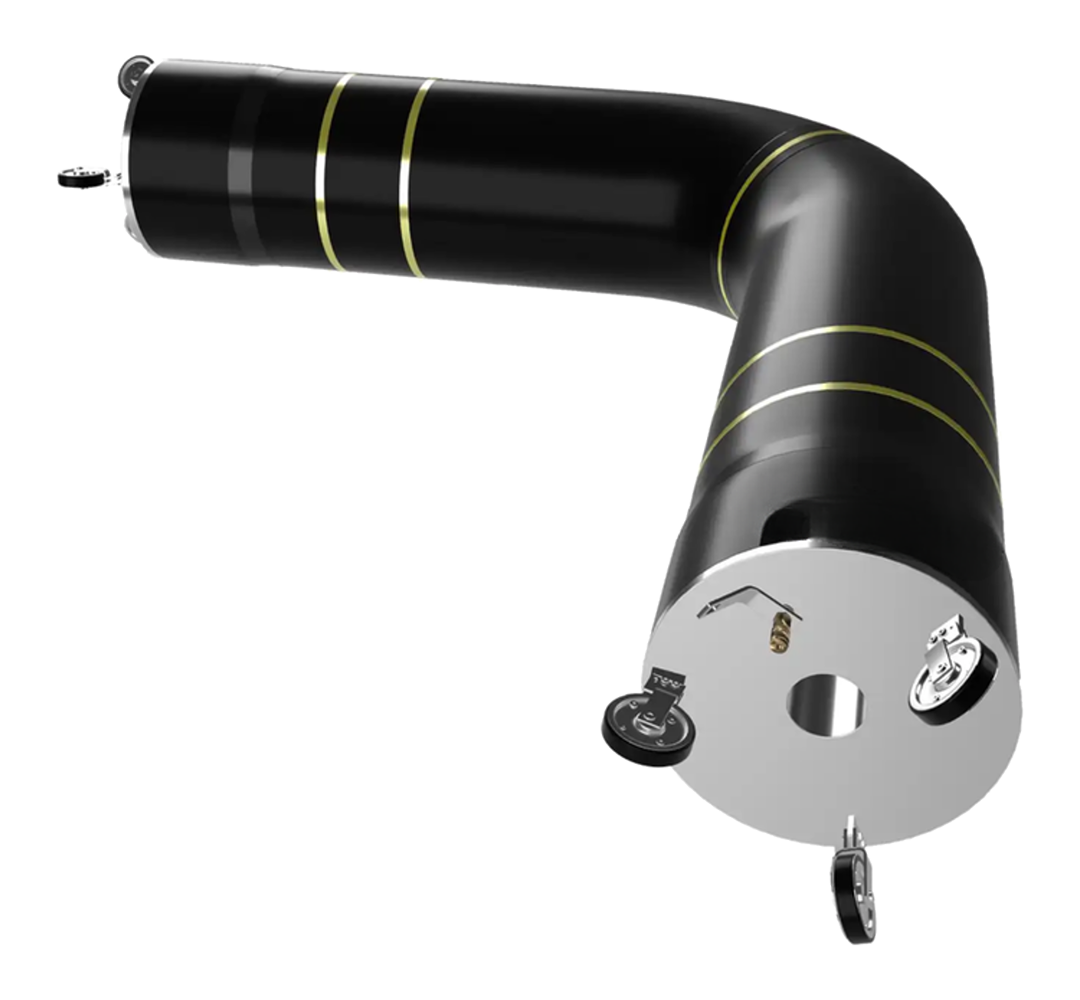

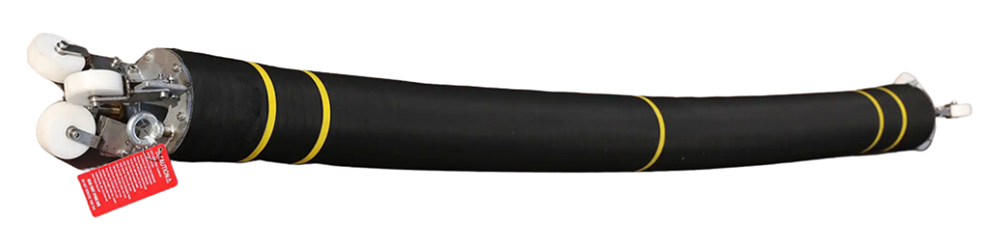

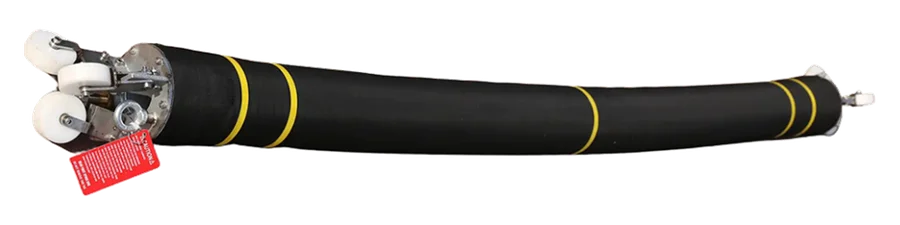

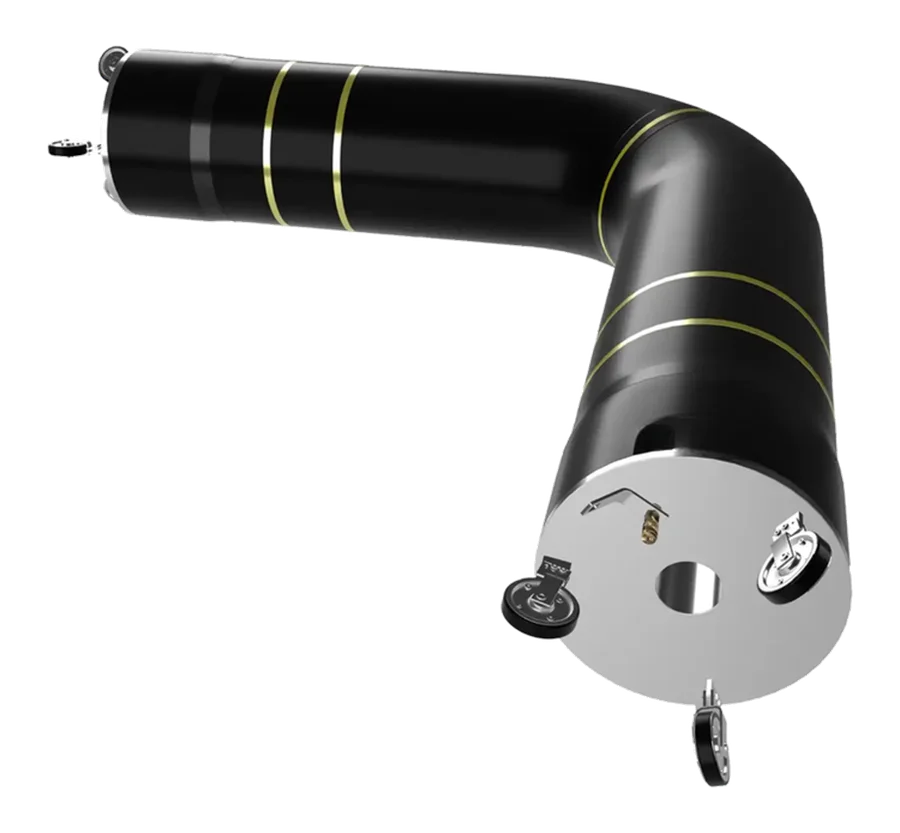

Flexible Bypass Packers are designed for partial repair of damaged pipeline sections and joints. They are flexible, easy to install, and come in various sizes to fit a range of pipeline diameters.
Features:
- Equipped with a single-layer rubberized fabric sleeve mounted on a central metal part with wheels on each side to prevent tipping
- Bypass design allows for water flow during the repair
- Available in sizes for pipeline diameters ranging from 100mm to 2200mm
- Effective repair length ranging from 600mm to 3680mm
- Rated at standard working pressures of 1 bar, 1.5 bar, 2 bar, and 2.5 bar.
| Product Code | Nominal Size | Cylinder Length(mm/inch) | Min. - Max. Contact (Repair)Lenght (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product(mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EFBP100150 | 100-150 | 1000mm/39,37"-5000mm/196,85" | C.L-170mm/C.L-6,69" | 2,5bar/ 36,25psi | 60mm/2,36" | C.L+350mm/C.L+13,77" | N/A | 1,7kg/3,75lbs |
|
|
EFBP150250 | 150-200 | 1000mm/39,37"-5000mm/196,85" | C.L-225mm/C.L-8,85" | 2,0bar/29,00psi | 116mm/4,56" | C.L+350mm/C.L+13,77" | 50,80mm/2" | 3,3kg/7,28lbs |
|
|
EFBP200300 | 200-300 | 1000mm/39,37"-5000mm/196,85" | C.L-280mm/C.L-11,02" | 2,0bar/29,00psi | 150mm/5,90" | C.L+350mm/C.L+13,77" | 50,80mm/2" | 5,4kg/11,9lbs |
|
|
EFBP300400 | 300-400 | 1000mm/39,37"-5000mm/196,85" | C.L-300mm/C.L-11,81" | 1,5bar/21,75psi | 231mm/9,09" | C.L+350mm/C.L+13,77" | 33,86mm/4/3" | 7,3kg/16,09lbs |
|
|
EFBP400600 | 400-600 | 1000mm/39,37"-5000mm/196,85" | C.L-300mm/C.L-11,81" | 1,0bar/14,50psi | 345mm/13,48" | C.L+350mm/C.L+13,77" | 33,86mm/4/3" | 11,6kg/25,57lbs |
|
|
EFBP600800 | 600-800 | 1000mm/39,37"-5000mm/196,85" | C.L-300mm/C.L-11,81" | 1,0bar/14,50psi | 444mm/17,48" | C.L+350mm/C.L+13,77" | 33,86mm/4/3" | 15,5kg/34,17lbs |
|
|
EFBP600160032 | 600-1600 | 3200mm/125,98" | 1000mm/39,37"-2900mm/114,71" | 1,0bar/14,50psi | 480mm/18,89" | 3300mm/129,92" | 101,60mm/4" | 90kg/198,42lbs |
|
|
EFBP600160042 | 600-1600 | 4200mm/165,35" | 2000mm/78,74"-2900mm/114,71" | 1,0bar/14,50psi | 480mm/18,89" | 4300mm/169,29" | 101,60mm/4" | 110,0kg/242,51lbs |
|
|
EFBP700200037 | 700-2000 | 3700mm/145,66" | 2000mm/39,37"-3500mm/137,79" | 1,0bar/14,50psi | 580mm/22,83" | 3800mm/149,60" | 101,60mm/4" | 100,0kg/220,46lbs |
|
|
EFBP700200047 | 700-2000 | 4200mm/185,03" | 2000mm/78,74"-3500mm/137,79" | 1,0bar/14,50psi | 580mm/22,83" | 4800mm/188,97" | 101,60mm/4" | 120,0kg/264,55lbs |
|
|
EFBP800120019 | 800-1200 | 1900mm/74,80" | 1000mm/39,37"-1500mm/59,05" | 1,0bar/14,50psi | 580mm/22,83" | 2000mm/78,74" | 101,60mm/4" | 60,0kg/132,28lbs |
|
|
EFBP1000180025 | 1000-1800 | 2500mm/98,42" | 600mm/23,62"-2000mm/78,74" | 1,0bar/14,50psi | 790mm/31,10" | 2600mm/102,36" | 101,60mm/4" | 70,0kg/154,32lbs |
|
|
EFBP1000180032 | 1000-1800 | 3200mm/125,98" | 1400mm/55,11"-2800mm/110,23" | 1,0bar/14,50psi | 790mm/31,10" | 3300mm/129,92" | 101,60mm/4" | 90,0kg/198,42lbs |
|
|
EFBP1000220032 | 1000-2200 | 3200mm/125,98" | 700mm/27,55"-2800mm/110,23" | 1,0bar/14,50psi | 790mm/31,10" | 3300mm/129,92" | 101,60mm/4" | 90,0kg/198,42lbs |
