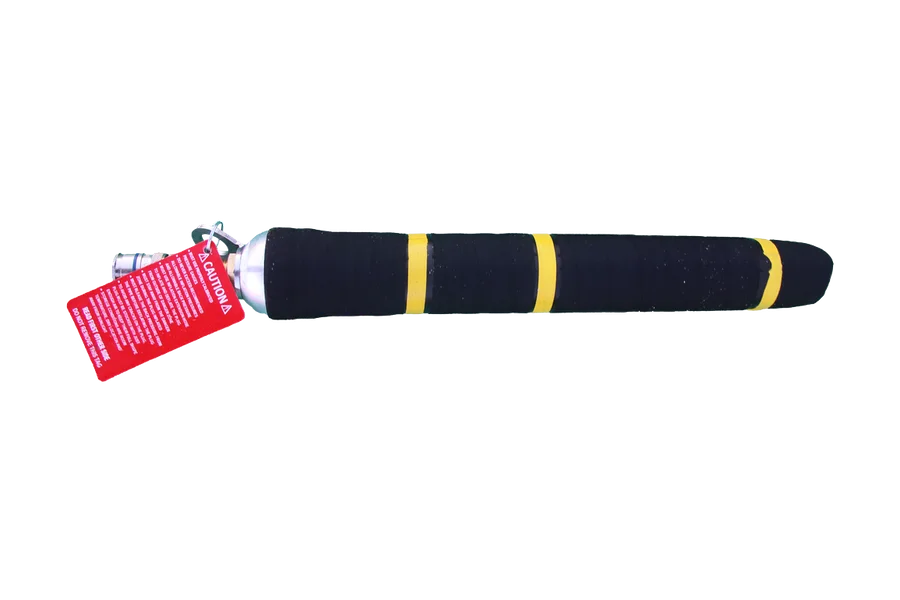

Corner Repair Packers are flexible soft rubber packers that are designed to repair sectional cracks, seal blind holes, and joints in various pipes, including drinking water, wastewater, sewer, oil and gas, and industrial pipes. Their special cylindrical end and flexible structure make them ideal for handling in narrow spaces, while their ability to be pushed closer to the edge of the pipe allows for efficient T-connection pipe repairs.
Features:
| Product Number | Nominal Size(mm) | Product Dia.(mm/inch) | Total Length of Product(mm/inch) | Max. Working Pressure (bar/psi) | Max. Contact (Repair) Lenght (mm/inch) | Product Weigth(kg/lbs) | |
|---|---|---|---|---|---|---|---|
|
|
ECRP3550/300 | 35-50 | 25mm/0,98" | 300mm/11,81" | 3bar/43,51psi | 285mm/11,22" | 0,2kg/0,44lbs |
|
|
ECRP3550/600 | 35-50 | 25mm/0,98" | 640mm/25,20" | 3bar/43,51psi | 600mm/23,62" | 0,3kg/0,66lbs |
|
|
ECRP5075/600 | 50-70 | 33mm/1,3" | 640mm/25,20" | 3bar/43,51psi | 600mm/23,62" | 0,5kg/1,10lbs |
|
|
ECRP70100/600 | 70-100 | 51mm/2,01" | 640mm/25,20" | 3bar/43,51psi | 600mm/23,62" | 0,9kg/1,98lbs |
|
|
ECRP70100/1000 | 70-100 | 51mm/2,01" | 1040mm/40,94" | 3bar/43,51psi | 1000mm/39,37" | 1,5kg/3,31lbs |
|
|
ECRP70100/1500 | 70-100 | 51mm/2,01" | 1540mm/60,63" | 3bar/43,51psi | 1500mm/59,06" | 2,0kg/4,41lbs |
|
|
ECRP70100/2000 | 70-100 | 51mm/2,01" | 2040mm/80,31" | 3bar/43,51psi | 2000mm/78,74" | 2,8kg/6,17lbs |
|
|
ECRP100150/600 | 100-150 | 60mm/2,36" | 640mm/25,20" | 2,5bar/36,25psi | 600mm/23,62" | 2,1kg/4,63lbs |
|
|
ECRP100150/1000 | 100-150 | 60mm/2,36" | 1040mm/40,94" | 2,5bar/36,25psi | 1000mm/39,37" | 3,0kg/6,61lbs |
|
|
ECRP100150/1500 | 100-150 | 60mm/2,36" | 1540mm/60,63" | 2,5bar/36,25psi | 1500mm/59,06" | 4,0kg/8,82lbs |
|
|
ECRP100150/2000 | 100-150 | 60mm/2,36" | 2040mm/80,31" | 2,5bar/36,25psi | 2000mm/78,74" | 5,5kg/12,13lbs |
|
|
ECRP150200/600 | 150-200 | 80mm/3,15" | 640mm/25,20" | 2,5bar/36,25psi | 600mm/23,62" | 2,4kg/5,29lbs |
|
|
ECRP150200/1000 | 150-200 | 80mm/3,15" | 1040mm/40,94" | 2,5bar/36,25psi | 1000mm/39,37" | 3,2kg/7,05lbs |
|
|
ECRP150200/1500 | 150-200 | 80mm/3,15" | 1540mm/60,63" | 2,5bar/36,25psi | 1500mm/59,06" | 4,5kg/9,92lbs |
|
|
ECRP150200/2000 | 150-200 | 80mm/3,15" | 2040mm/80,31" | 2,5bar/36,25psi | 2000mm/78,74" | 6,0kg/13,23lbs |
