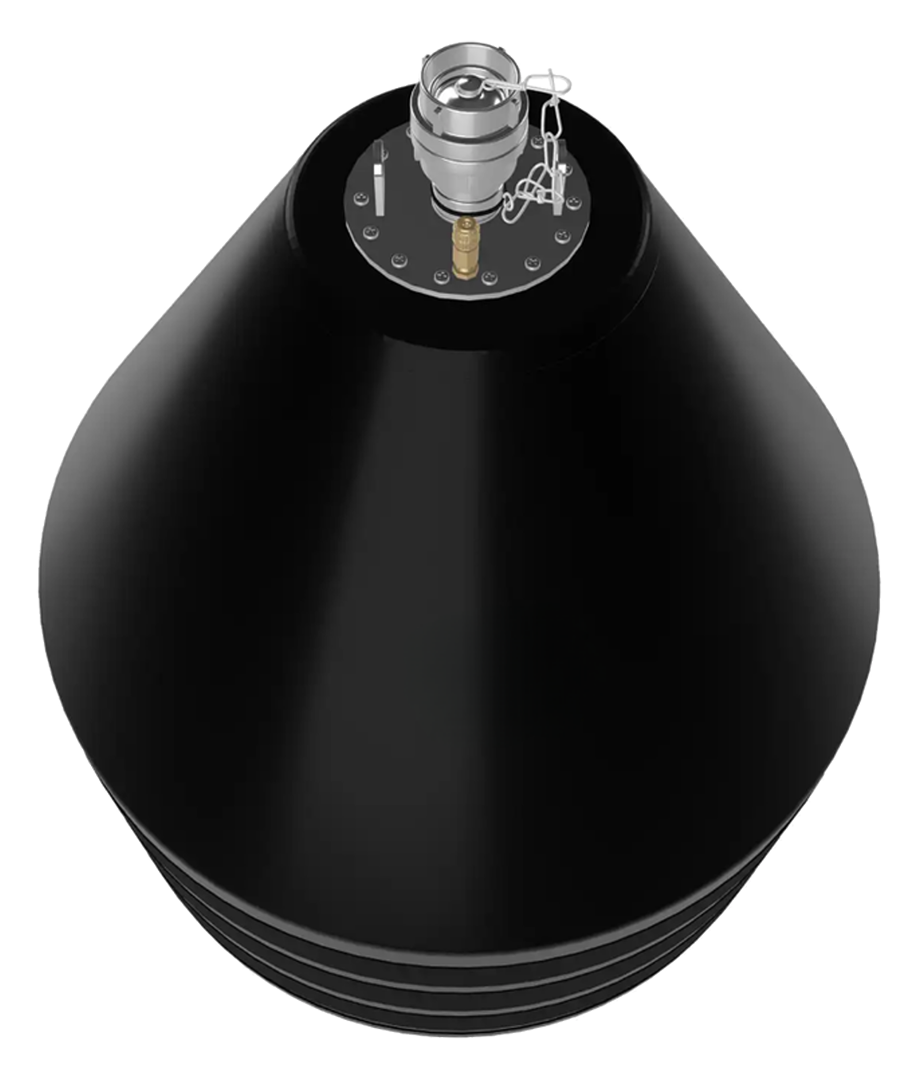

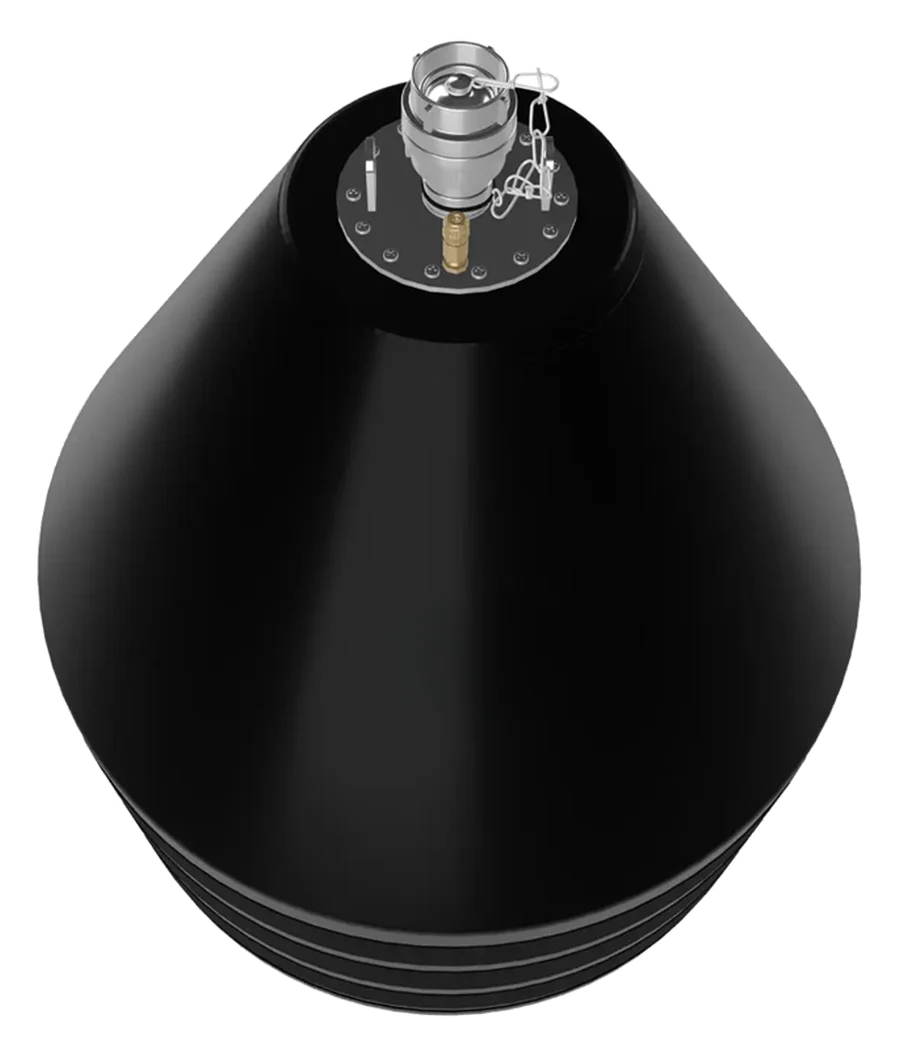

Cone Pipe Test Plugs
Cone Pipe Test Plugs are essential for conducting leak testing with water or air on newly installed pipelines in accordance with the EN 1610:2015 Standard. They are also frequently used to drain and bypass water, as well as shut or close drainage systems, pipes, sewers, and gullies for maintenance and repair purposes.
Features:
- Can be used to perform leak tests and seal not only in round pipes but also in various other shapes of pipes, such as ovoid, egg-shaped, rectangular, and triangular.
- Can fit through conventional manholes, even with huge cone pipes.
- Suitable for use in a wide range of diameter sizes between 100mm to 3600mm.
- Made of robust rubber, which provides high chemical resistance, high age resistance, and low weight.
- Easy to repair and maintain.
Request a free quote
Tell us the sizes and quantities you need for Cone Pipe Test Plugs and we will reply within one business day.
Choose sizesSizes and specifications
Use the quantity buttons to add sizes to your quote list, then send the list from the cart.
- CONE PIPE TEST PLUGS (3,0 BAR/43,51 PSI - 2,0 BAR/29,01 PSI)
- CONE PIPE TEST PLUGS (1,0 BAR/14,50 PSI)
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|---|
| ECT100200/3 | 100-200 | 100mm/3,94" | 200mm/7,87" | 3,0bar/43,51psi | 1,5bar/21,75psi | 70mm/2,76" | 360mm/14,17" | 6,35mm/1/4" | 4,5kg/9,91lbs | |
| ECT150400/3 | 150-400 | 150mm/5,91" | 400mm/15,75" | 3,0bar/43,51psi | 1,5bar/21,75psi | 100mm/3,94" | 800mm/31,49" | 12,70mm/1/2" | 9,5kg/20,93lbs | |
| ECT250600/3 | 250-600 | 250mm/9,84" | 600mm/23,62" | 3,0bar/43,51psi | 1,5bar/21,75psi | 200mm/7,87" | 1150mm/45,27" | 25,40mm/1" | 17,0kg/37,46lbs | |
| ECT300800/2 | 300-800 | 300mm/11,81" | 800mm/31,50" | 2,0bar/29,01psi | 1,0bar/14,50psi | 250mm/9,84" | 1400mm/55,11" | 50,80mm/2" | 27,0kg/59,50lbs | |
| ECT4001000/2 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 2,0bar/29,01psi | 1,0bar/14,50psi | 300mm/11,81" | 1750mm/68,89" | 50,80mm/2" | 36,0kg/79,35lbs | |
| ECT5001200/2 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 1900mm/74,80" | 50,80mm/2" | 54,1kg/119,23lbs | |
| ECT5001400/2 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2250mm/88,58" | 50,80mm/2" | 75,0kg/165,30lbs | |
| ECT5001500/2 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2600mm/102,36" | 50,80mm/2" | 80,0kg/176,32lbs | |
| ECT6001600/2 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 2,0bar/29,01psi | 1,0bar/14,50psi | 500mm/19,69" | 2800mm/110,23" | 50,80mm/2" | 115,0kg/253,46lbs | |
| ECT8001800/2 | 800-1800 | 800mm/31,50" | 1800mm/70,87" | 2,0bar/29,01psi | 1,0bar/14,50psi | 700mm/27,56" | 3000mm/118,11" | 50,80mm/2" | 165,0kg/363,66lbs | |
| ECT10002200/2 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 2,0bar/29,01psi | 1,0bar/14,50psi | 800mm/31,50" | 3500mm/137,79" | 50,80mm/2" | 240,0kg/528,96lbs |
| Qty | Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) |
|---|---|---|---|---|---|---|---|---|---|---|
| ECT100200/1 | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 70mm/2,76" | 360mm/14,17" | 6,35mm/1/4" | 4,5kg/9,91lbs | |
| ECT150400/1 | 150-400 | 150mm/5,91" | 400mm/15,75" | 1,0bar/14,50psi | 0,5bar/7,25psi | 100mm/3,94" | 800mm/31,49" | 12,70mm/1/2" | 9,5kg/20,93lbs | |
| ECT250600/1 | 250-600 | 250mm/9,84" | 600mm/23,62" | 1,0bar/14,50psi | 0,5bar/7,25psi | 200mm/7,87" | 1150mm/45,27" | 25,40mm/1" | 17,0kg/37,46lbs | |
| ECT300800/1 | 300-800 | 300mm/11,81" | 800mm/31,5" | 1,0bar/14,50psi | 0,5bar/7,25psi | 250mm/9,84" | 1400mm/55,11" | 50,80mm/2" | 27,0kg/59,50lbs | |
| ECT4001000/1 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 1,0bar/14,50psi | 0,5bar/7,25psi | 300mm/11,81" | 1750mm/68,89" | 50,80mm/2" | 36,0kg/79,35lbs | |
| ECT5001200/1 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 1900mm/74,80" | 50,80mm/2" | 54,1kg/119,23lbs | |
| ECT5001400/1 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2250mm/88,58" | 50,80mm/2" | 75,0kg/165,30lbs | |
| ECT5001500/1 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2600mm/102,36" | 50,80mm/2" | 80,0kg/176,32lbs | |
| ECT6001600/1 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 1,0bar/14,50psi | 0,5bar/7,25psi | 500mm/19,69" | 2800mm/110,23" | 50,80mm/2" | 115,0kg/253,46lbs | |
| ECT8001800/1 | 800-1800 | 800mm/31,5" | 1800mm/70,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 700mm/27,56" | 3000mm/118,11" | 50,80mm/2" | 165,0kg/363,66lbs | |
| ECT10002200/1 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 1,0bar/14,50psi | 0,5bar/7,25psi | 800mm/31,5" | 3500mm/137,79" | 50,80mm/2" | 240,0kg/528,96lbs | |
| ECT15002800/0,5 | 1500-2800 | 1500mm/59,05" | 2800mm/110,23" | 0,5bar/7,25psi | 0,2bar/2,90psi | 1300mm/51,18" | 3650mm/143,70" | 101,60mm/4" | 410,0kg/903,64lbs | |
| ECT22003600/0,4 | 2200-3600 | 2200mm/86,61" | 3600mm/141,73" | 0,4bar/5,80psi | 0,2bar/2,90psi | 1800mm/70,86" | 4250mm/167,32" | 101,60mm/4" | 418,0kg/921,27lbs |
24 sizes across 2 pressure classes.Go to quote list
