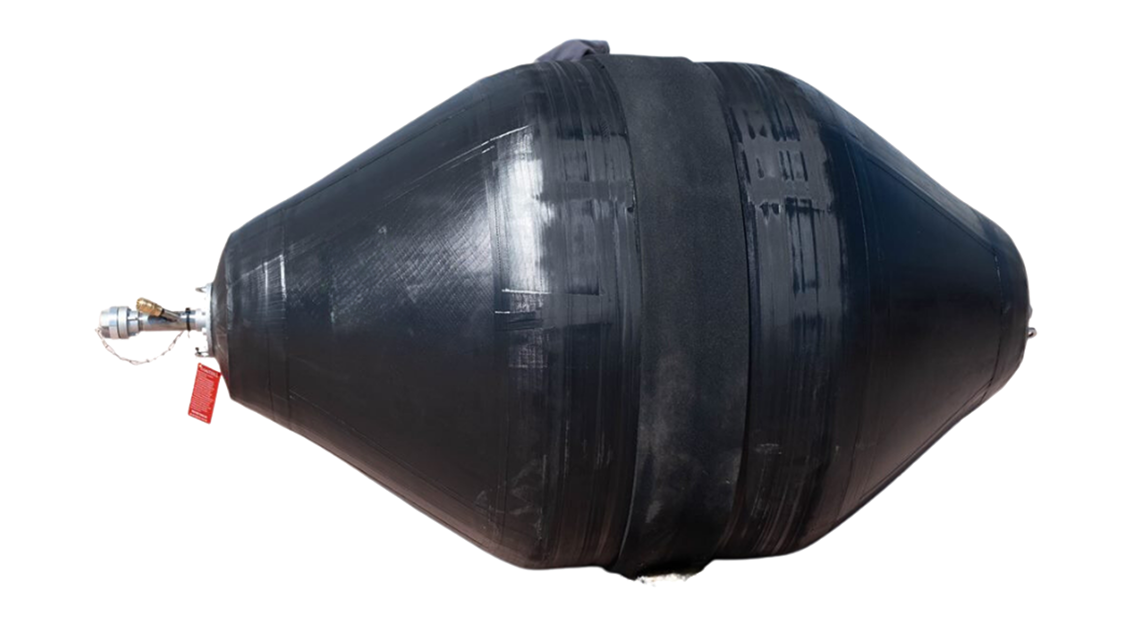

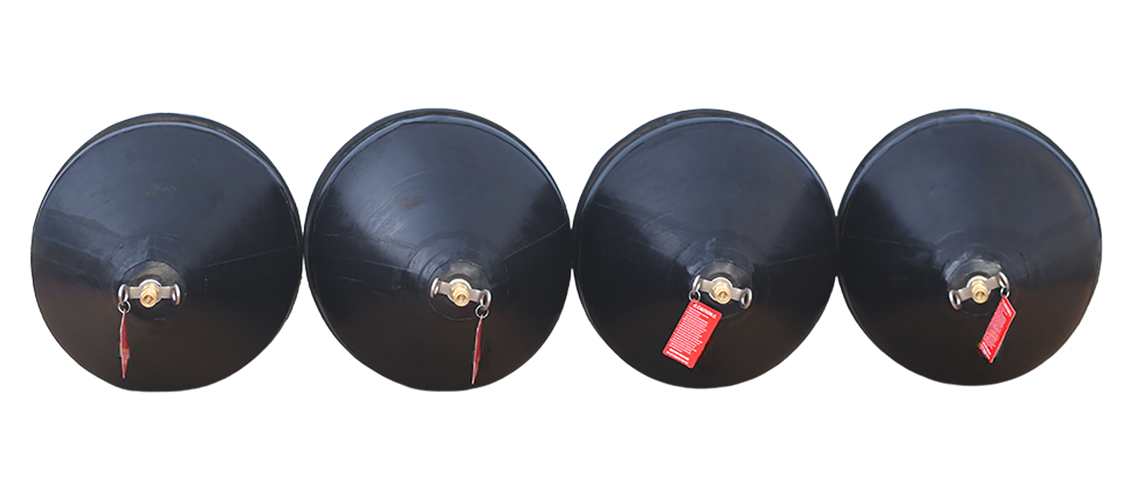

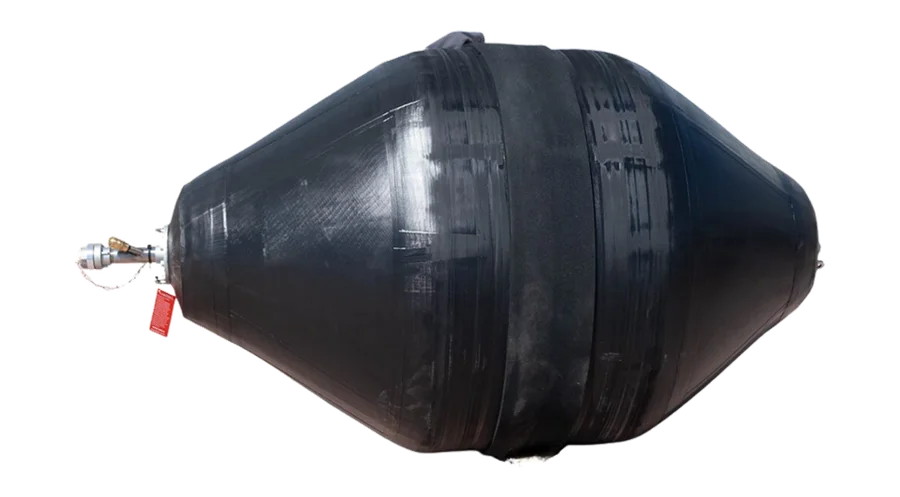

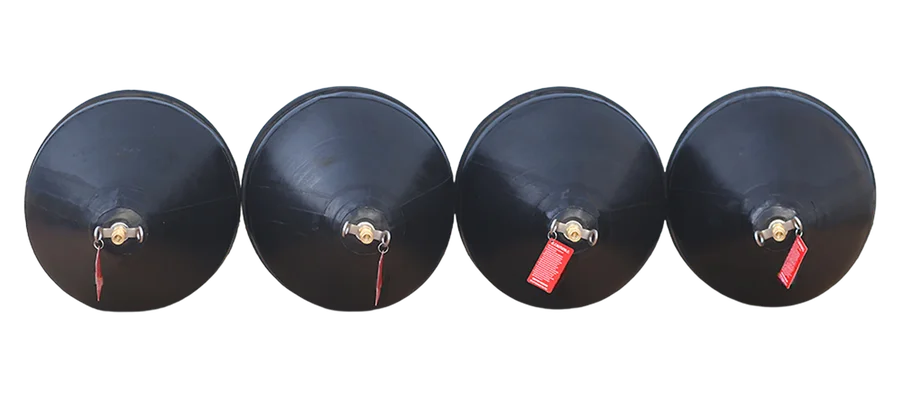

Cone Pipe Stoppers are uniquely designed for sealing and blocking pipelines, sewers, gullies, and drainage systems to prevent the ingress of water, gases, waste, and rodents. Unlike traditional pipe stoppers, they come in various shapes, including ovoid, egg-shaped, rectangular, and kite-shaped.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
ECP100200/3 | 100-200 | 100mm/3,94" | 200mm/7,87" | 3,0bar/43,51psi | 1,5bar/21,75psi | 70mm/2,76" | 340mm/13,39" | 2,0kg/4,40lbs |
|
|
ECP150400/3 | 150-400 | 150mm/5,91" | 400mm/15,75" | 3,0bar/43,51psi | 1,5bar/21,75psi | 100mm/3,94" | 760mm/29,92" | 6,0kg/13,22lbs |
|
|
ECP250600/3 | 250-600 | 250mm/9,84" | 600mm/23,62" | 3,0bar/43,51psi | 1,5bar/21,75psi | 200mm/7,87" | 1050mm/41,34" | 10,0kg/22,04lbs |
|
|
ECP300800/2 | 300-800 | 300mm/11,81" | 800mm/31,50" | 2,0bar/29,01psi | 1,0bar/14,50psi | 250mm/9,84" | 1300mm/51,18" | 21,3kg/46,94lbs |
|
|
ECP4001000/2 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 2,0bar/29,01psi | 1,0bar/14,50psi | 300mm/11,81" | 1600mm/62,99" | 27,0kg/59,50lbs |
|
|
ECP5001200/2 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 1880mm/74,02" | 46,6kg/102,70lbs |
|
|
ECP5001400/2 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2150mm/84,65" | 59,4kg/130,91lbs |
|
|
ECP5001500/2 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2500mm/98,43" | 60,0kg/132,24lbs |
|
|
ECP6001600/2 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 2,0bar/29,01psi | 1,0bar/14,50psi | 500mm/19,69" | 2650mm/104,33" | 93,0kg/204,97lbs |
|
|
ECP8001800/2 | 800-1800 | 800mm/31,50" | 1800mm/70,87" | 2,0bar/29,01psi | 1,0bar/14,50psi | 700mm/27,56" | 3000mm/118,11" | 140,0kg/308,56lbs |
|
|
ECP10002200/2 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 2,0bar/29,01psi | 1,0bar/14,50psi | 800mm/31,50" | 3500mm/137,80" | 210,0kg/462,84lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
ECP100200/1 | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 70mm/2,76" | 340mm/13,39" | 2,0kg/4,40lbs |
|
|
ECP150400/1 | 150-400 | 150mm/5,91" | 400mm/15,75" | 1,0bar/14,50psi | 0,5bar/7,25psi | 100mm/3,94" | 760mm/29,92" | 6,0kg/13,22lbs |
|
|
ECP250600/1 | 250-600 | 250mm/9,84" | 600mm/23,62" | 1,0bar/14,50psi | 0,5bar/7,25psi | 200mm/7,87" | 1050mm/41,34" | 10,0kg/22,04lbs |
|
|
ECP300800/1 | 300-800 | 300mm/11,81" | 800mm/31,5" | 1,0bar/14,50psi | 0,5bar/7,25psi | 250mm/9,84" | 1300mm/51,18" | 21,3kg/46,94lbs |
|
|
ECP4001000/1 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 1,0bar/14,50psi | 0,5bar/7,25psi | 300mm/11,81" | 1600mm/62,99" | 27,0kg/59,50lbs |
|
|
ECP5001200/1 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 1880mm/74,02" | 46,6kg/102,70lbs |
|
|
ECP5001400/1 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2150mm/84,65" | 59,4kg/130,91lbs |
|
|
ECP5001500/1 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2500mm/98,43" | 60,0kg/132,24lbs |
|
|
ECP6001600/1 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 1,0bar/14,50psi | 0,5bar/7,25psi | 500mm/19,69" | 2650mm/104,33" | 93,0kg/204,97lbs |
|
|
ECP8001800/1 | 800-1800 | 800mm/31,50" | 1800mm/70,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 700mm/27,56" | 3000mm/118,11" | 140,0kg/308,56lbs |
|
|
ECP10002200/1 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 1,0bar/14,50psi | 0,5bar/7,25psi | 800mm/31,50" | 3500mm/137,80" | 210,0kg/462,84lbs |
|
|
ECP15002800/0,5 | 1500-2800 | 1500mm/59,06" | 2800mm/110,40" | 0,5bar/7,25psi | 0,2bar/2,90psi | 1300mm/51,18" | 3650mm/143,70" | 370,0kg/815,48lbs |
|
|
ECP22003600/0,4 | 2200-3600 | 2200mm/86,61" | 3600mm/141,73" | 0,4bar/5,80psi | 0,2bar/2,90psi | 1800mm/70,86" | 4250mm/167,32" | 380,0kg/837,52lbs |
