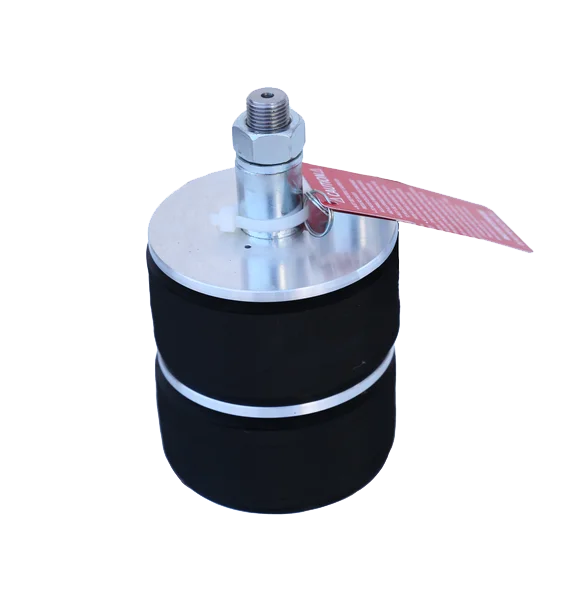

The Aluminum Double Seal Pipe Plugs are a reliable solution for testing pipes with diameters ranging from 6 mm (1/4") to 600 mm (24"). Made of high-quality Aluminum 7000 Series, these pipe plugs are designed to withstand high back pressure of 6,0 bar and recommended for use at temperatures up to 130 degrees Celcius.
Features:
| Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure(bar/psi) | Tightening Torque(N.m) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EDSA6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 6,0bar/87,0psi | H,T | 82mm/3,23" | 0,1kg/0,22lbs |
|
|
EDSA10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 6,0bar/87,0psi | H,T | 82mm/3,23" | 0,12kg/0,26lbs |
|
|
EDSA12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 6,0bar/87,0psi | H,T | 82mm/3,23" | 0,14kg/0,31lbs |
|
|
EDSA15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 6,0bar/87,0psi | H,T | 102mm/4,02" | 0,15kg/0,33lbs |
|
|
EDSA20 | 20 | 19mm/0,75" | 20mm/0,79" | 19mm/0,75" | 6,0bar/87,0psi | H,T | 102mm/4,02" | 0,2kg/0,44lbs |
|
|
EDSA30 | 30 | 29mm/1,14" | 32mm/1,26" | 27mm/1,06" | 6,0bar/87,0psi | H,T | 120mm/4,72" | 0,25kg/0,55lbs |
|
|
EDSA38 | 38 | 37mm/1,46" | 40mm/1,57" | 35mm/1,38" | 6,0bar/87,0psi | 50 | 124mm/4,88" | 0,35kg/0,77lbs |
|
|
EDSA50 | 50 | 49mm/1,93" | 51mm/2,01" | 47mm/1,85" | 6,0bar/87,0psi | 60 | 150mm/5,91" | 0,75kg/1,65lbs |
|
|
EDSA60 | 60 | 58mm/2,28" | 61mm/2,4" | 57mm/2,24" | 6,0bar/87,0psi | 60 | 170mm/6,69" | 0,8kg/1,76lbs |
|
|
EDSA75 | 75 | 74mm/2,91" | 77mm/3,03" | 72mm/2,83" | 6,0bar/87,0psi | 85 | 175mm/6,89" | 1,0kg/2,2lbs |
|
|
EDSA100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 4,0bar/58,0psi | 105 | 175mm/6,89" | 1,2kg/2,65lbs |
|
|
EDSA125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 4,0bar/58,0psi | 120 | 175mm/6,89" | 1,5kg/3,31lbs |
|
|
EDSA150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 4,0bar/58,0psi | 140 | 181mm/7,13" | 2,0kg/4,41lbs |
|
|
EDSA200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 3,0bar/43,5psi | 145 | 181mm/7,13" | 3,0kg/6,61lbs |
|
|
EDSA250 | 250 | 247mm/9,72" | 252mm/9,92" | 245mm/9,65" | 2,0bar/29,0psi | 150 | 187mm/7,36" | 4,0kg/8,82lbs |
|
|
EDSA300 | 300 | 297mm/11,69" | 302mm/11,89" | 295mm/11,61" | 2,0bar/29,0psi | 160 | 187mm/7,36" | 5,0kg/11,02lbs |
|
|
EDSA350 | 350 | 347mm/13,66" | 352mm/13,86" | 345mm/13,58" | 2,0bar/29,0psi | 160 | 187mm/7,36" | 6,0kg/13,23lbs |
|
|
EDSA400 | 400 | 397mm/15,63" | 402mm/15,83" | 395mm/15,55" | 2,0bar/29,0psi | 160 | 187mm/7,36" | 7,0kg/15,43lbs |
|
|
EDSA450 | 450 | 447mm/17,6" | 452mm/17,8" | 445mm/17,52" | 1,0bar/14,5psi | 180 | 187mm/7,36" | 8,0kg/17,64lbs |
|
|
EDSA500 | 500 | 497mm/19,57" | 502mm/19,76" | 495mm/19,49" | 1,0bar/14,5psi | 180 | 187mm/7,36" | 9,0kg/19,84lbs |
|
|
EDSA550 | 550 | 547mm/21,54" | 552mm/21,73" | 545mm/21,46" | 0,5bar/7,25psi | 180 | 187mm/7,36" | 9,5kg/20,94lbs |
|
|
EDSA600 | 600 | 597mm/23,5" | 602mm/23,7" | 595mm/23,43" | 0,5bar/7,25psi | 180 | 187mm/7,36" | 10,0kg/22,05lbs |
